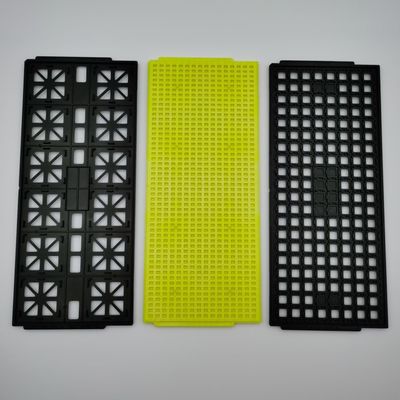

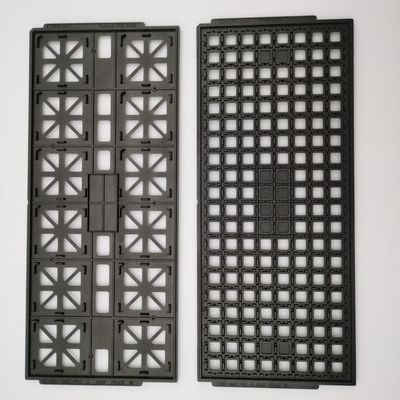

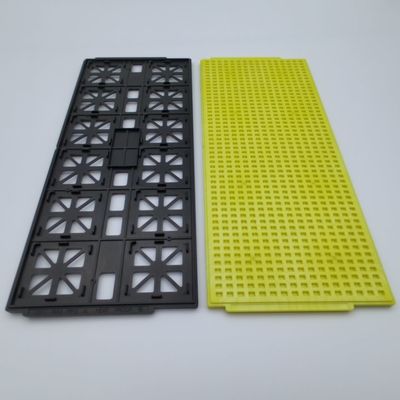

Heat Resistant Anti-Static Jedec IC Trays Electronic Components Tray

The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carrying components or IC of the tray, carrying function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, and improve work efficiency.

The Flat cells in the center area of each tray are designed for automatic equipment to allow the use of vacuum picking up tools. If it is necessary to cancel in special cases, we can also change the design according to your requirements at the beginning of the design.

The tray has a 45-degree chamfer to provide a visual indicator of the Pin 1 orientation of the IC and prevent the stack of errors, reduce the possibility of workers making mistakes, and maximize the protection of the chip.

Providing a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing ICs but also better protects the chip storage. We have designed a lot of packaging ways, which also include common BGA, FBGA, LGAQFN, QFP, PGA, TQFP, LQFP, SoC, and SiP etc. We can provide custom service for all packaging methods of the chip tray.

Technical Parameters:

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us via Skype / Email / Phone / WhatsApp, in case of any delays.

2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.

3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component. Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply: We accept EXW,FOB,CIF,DDU,DDP, etc. You can choose the one that is the most convenient or cost-effective for you.

5. How to guarantee quality?
Reply: Our samples through strict testing, and the finished products comply with the international JEDEC standards, to ensure a 100% qualified rate.
