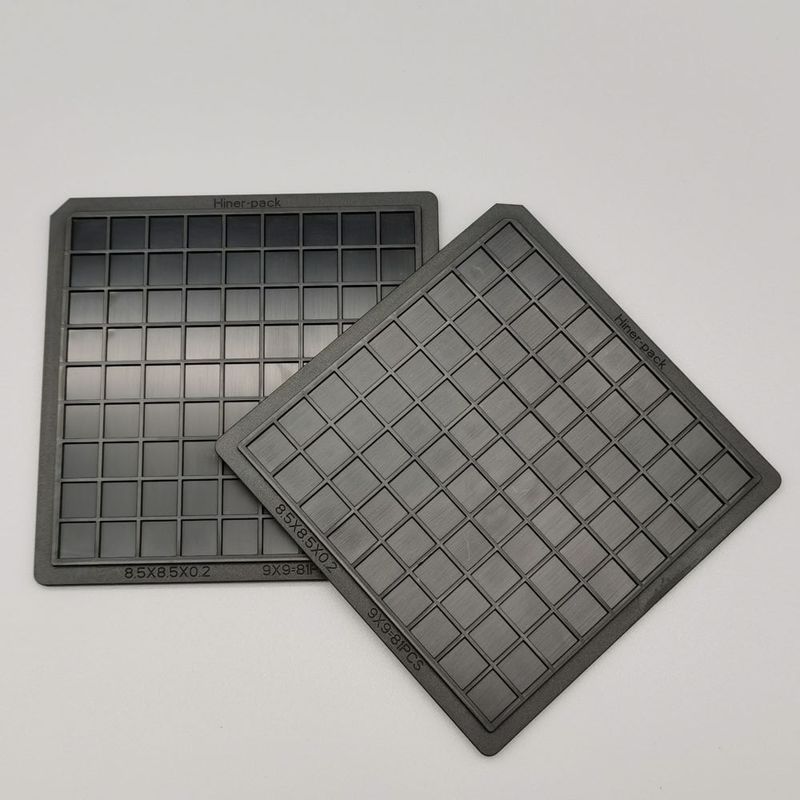

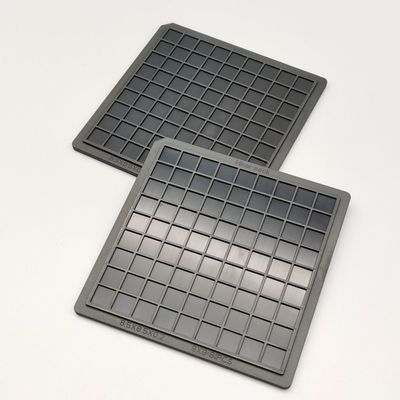

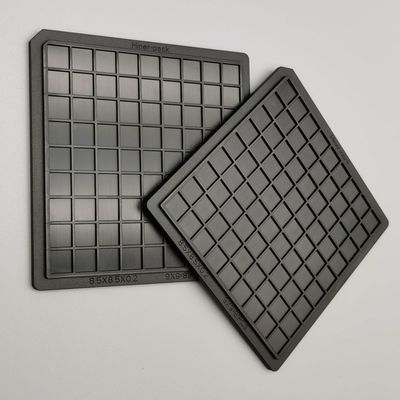

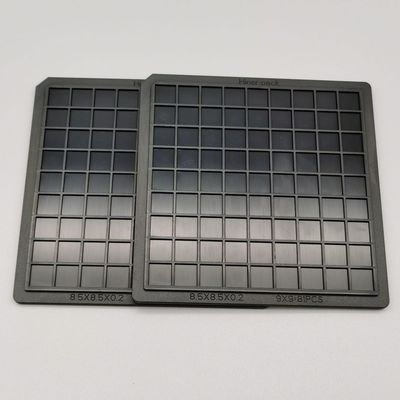

4 Inch MPPO Matte Surface Waffle Pack Chip Trays For Bare-Die

Name: 4 Inch MPPO Matte Surface Waffle Pack Chip Trays For Bare-Die
Brand: Shenzhen Hiner Technology Co.,LTD
SKU: HN21013-1
Price: 0.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN21013-1
MOQ:	1000 pcs
Price:	$0.35~$0.85(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	4500~5000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

ABS

Color:

Black

Temperature:

General 80°C~100°C

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

0.3mm

Clean Class:

General And Ultrasonic Cleaning

HS Code:

39239000

Packaging Details:

It depends on the QTY of order(eg:500Sets of 2Inch series products(Waffle tray+lid+clip:10kg/45*40*30)

Supply Ability:

4500~5000PCS/per day

Highlight:

MPPO Waffle Pack Chip Trays

Waterproof Waffle Pack Chip Trays

Waffle ic tray

Product Description

MPPO Waffle Pack Chip Trays

Designed for bare die and small chip packaging, our waffle pack trays ensure secure, static-safe storage in precision grid arrays.

The tray can carrier component also provides comprehensive protection for transit and transport, and provides great convenience. All kinds of specifications and various colors can be realized, and we provide one-stop service from design to production to packaging.

The use of anti-static tray storage for electronic components can effectively avoid the short-circuit phenomenon. Because the product is prone to friction in the process of placement and transportation, if there is some static electricity on the circuit board of the product, it is easy to lead to a short circuit of the circuit board, affecting the quality of the product, and may even cause damage

HN21013-1 Detail Information:

As for HN21013-1, usually used for loading small chips or components less than 8.5mm, the matrix quantity is 9*9=81PCS per tray, carrying a large number of chips in a small volume. At the same time, the products can match the corresponding accessories such as cover, clip, and Tyvek paper of the existing series, and the complete package is easier to transfer, transport, and store the products.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	101.57101.573mm
Model	HN21013-1	Package Type	IC Parts
Cavity Size	8.5*8.5mm	Matrix QTY	9*9=81PCS
Material	ABS	Flatness	MAX 0.3mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Item Material	ABS / PC / MPPO / PPE... acceptable
OEM&ODM	YES
Item Color	Can be customized
Feature	Durable; Reusable; Rcofriendly; Biodegradable
Sample	A. The free samples: chosen from existing products.
Sample	B. customized samples as per your design/demand
MOQ	500pcs.
Packing	Carton or as per the customer's request
Delivery time	Usually 8-10 working days, depending on order quantity
Terms of payment	Products: 100% prepayment. Mold: 50% T/T deposit, 50% balance after sample confirmation

Application:
Suitable for Wafer Die / Bar / Chips / PCBA module component;
Electronic component packaging and optical device packaging.

Packaging:

Packaging Details: Packing according to the customer's specified size.
Advantages:
1. More than 10 years of export experience.
2. With professional engineers and efficient management.
3. Short delivery time and good quality.
4. Support small batch production in the first batch.
5. Professional sales within 24 hours efficient reply.
6. The factory has ISO certification, and the products comply with the RoHS standard.
7. Our products are exported to the United States, Germany, the UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, with service or cost performance being well recognized.
4 Inch MPPO Matte Surface Waffle Pack Chip Trays For Bare-Die 0
FAQ:
Q: Can you do OEM and customized design IC trays?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase quantity of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value, and all samples shipping costs are normally is by collected or as agreed.
Q: What kind of income can you do?
A: We could support to do Ex works, FOB, CNF, CIF, CFR, DDU, DAP, etc., and other incoterm as agreed.
Q: What method you can use to ship the goods?
A: By sea, by air, by express, by mail, post according to customer order quantity and volume.

4 Inch MPPO Matte Surface Waffle Pack Chip Trays For Bare-Die 1
