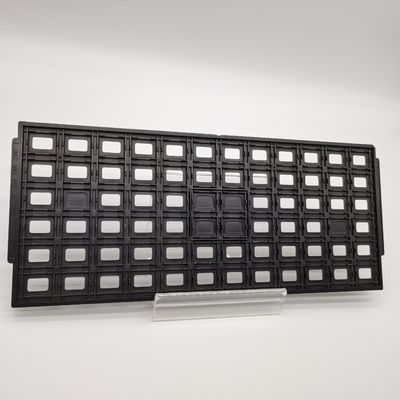

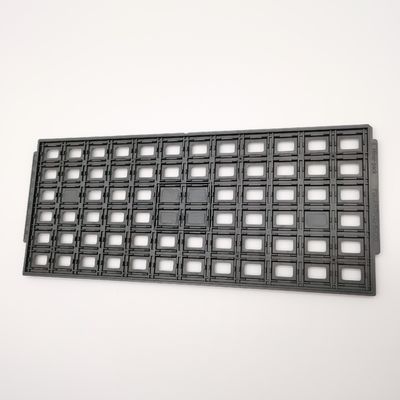

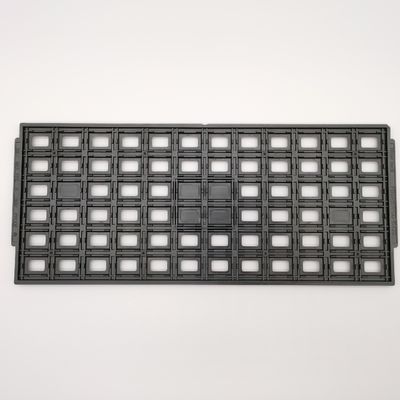

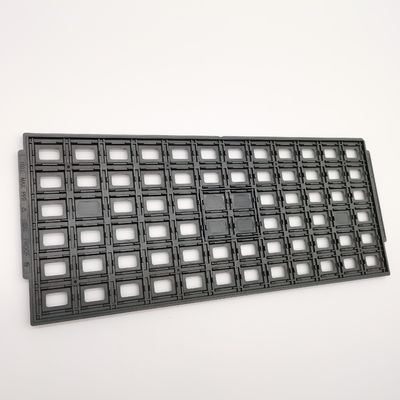

Customized Jedec Matrix Trays Loading FBGA IC ESD Rohs Raw Material

Brand Name:	Hiner-pack
Model Number:	HN21002
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

PPE

Color:

Black

Temperature:

150°C

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Use:

Transport, Storage, Packing

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

PPE Jedec Matrix Trays

7.62mm Thick Jedec Matrix Trays

jedec tray suppliers

Product Description

Customized Jedec Matrix Trays Loading FBGA IC ESD Rohs Raw Material

Protect your ICs from electrostatic discharge and mechanical stress with JEDEC-compatible trays built for cleanroom and factory use.

Hiner-pack offers the ultimate protection and convenience. We offer a wide variety of JEDEC outline matrix trays to satisfy the most demanding requirements of today's automatic test and handling environments. While JEDEC standards provide compatibility with process equipment, every device and component has its own requirements for tray pocket details.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.97.62mm
Model	HN21002	Cavity Size	15203 mm
Package Type	FBGA IC	Matrix QTY	9*6=54PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM, ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	RoHS

Reference to the temperature resistance of different materials.

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature, and other special requirements can be customized

Advantage:

1. Have exported for more than 12 years.
2. Have a professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. A small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to the USA, Germany, the UK, Europe, Korea, Japan, etc, win many big famous customer reputation.
7. The factory has an ISO certificate. The product complies with the RoHS standard.

Application:

Electronic component, Semiconductor, Embedded System, Display technology, Micro and Nano systems, Sensor Test, Measurement Technology, Electromechanical equipment and systems, Power supply.

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us via Skype / Email / Phone / WhatsApp, in case of any delays.
2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.
3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component. Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply: We accept EXW, FOB, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply: Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate. Customized Jedec Matrix Trays Loading FBGA IC ESD Rohs Raw Material 1
