|Surface Resistance:||1.0x10E4~1.0x10E11Ω||Warpage:||Less Than 0.2mm(2Inch) 0.3mm(4Inch)|
|Clean Class:||General And Ultrasonic Cleaning||Incoterms:||EXW,FOB,CIF,DDU,DDP|
|Customized Service:||Suitable For All Kinds Of Bar.Die.Chip Devices Or Parts||Injection Mold:||Customized Case Need(Lead Time 20~25Days,Mold Life Span: 450,000 Times.)|

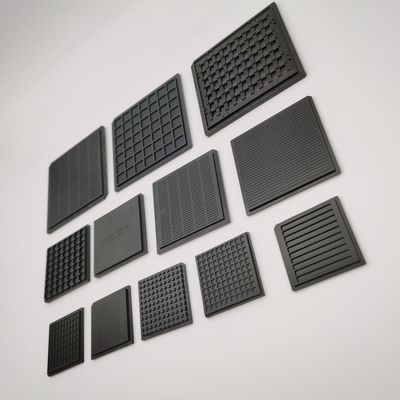

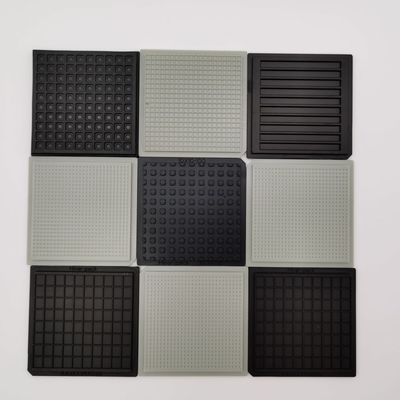

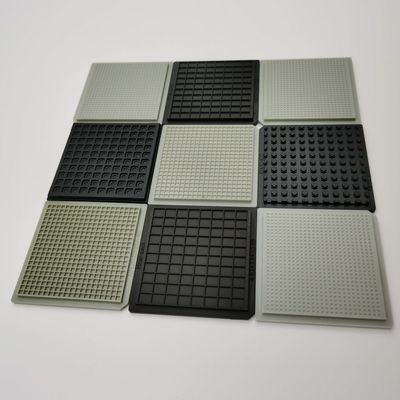

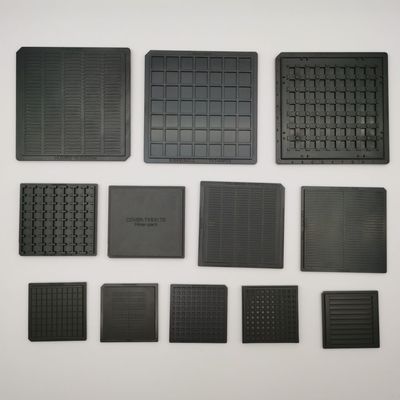

Waffle Pack Chip Trays,
ABS Waffle Pack Chip Trays,
ABS waffle pack trays
Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded - the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.
As the tray in the field of optical application, more and more customers in order to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized,Provide one-stop service from design to production to packaging.
1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging Details:Packing according to customer's specified size
1. More than 10 years export experience
2. With professional engineers and efficient management
3. Short delivery time and good quality
4. Support small batch production in the first batch
5. Professional sales within 24 hours efficient reply
6. Factory has ISO certification, and the products comply to RoHS standard.
7. Our products are exported to the United States, Germany, UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, service or cost performance has been well recognized
|Outline Size||Material||Surface Resistance||Service||Flatness||Color|
|Provide professional design and packaging for your products|
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
