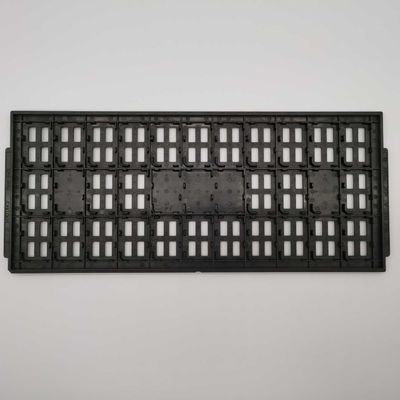

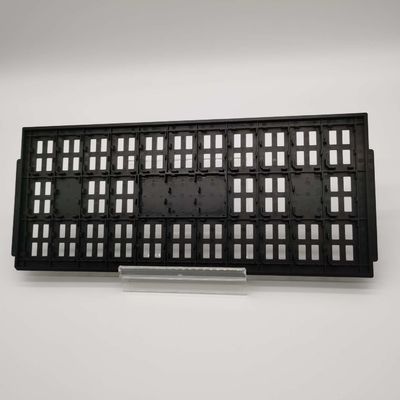

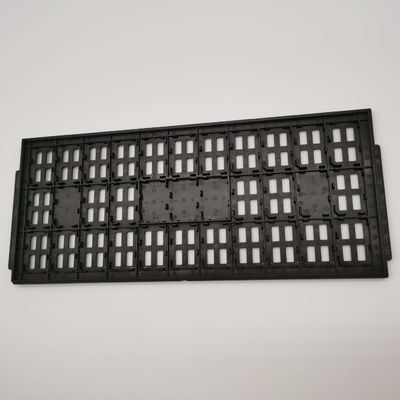

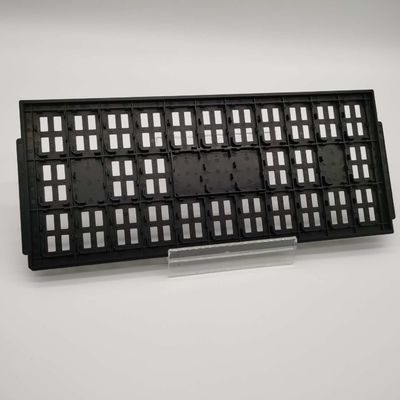

High Temperature Resistance Jedec IC Trays

High Temperature Resistance Jedec IC Trays

Brand Name:	Hiner-pack
Model Number:	HN1940
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

PPE

Color:

Black

Temperature:

80°C~180°C150

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW,FOB,CIF,DDU,DDP

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

PPE Jedec IC Trays

Black Jedec IC Trays

ESD IC Tray

Product Description

High Temperature Resistance Jedec IC Trays

Built to spec and built to last—our JEDEC trays are customized for your IC’s geometry, height, and handling requirements.

• Why is the color of the Jedec tray mainly black?

Generally, the demand for Jedec Tray must meet the high temperature resistance of 125~150°C, most of our common black products, for the requirements of other different colors, which are not suitable for anti-static and high temperature requests, so most of the high temperature resistant plates on the market are black.

• Why choose a high-temperature plastic Jedec tray?

High temperature resistance can provide a performance guarantee, while protecting the chip to the greatest extent, and it also realizes the integration of automation equipment, which meets the high temperature requirements of the equipment. Plastic products can be recycled and reused many times, which is beneficial to environmental protection while reducing transportation costs and maximizing raw materials value.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.98.65mm
Model	HN1940	Cavity Size	34214mm
Package Type	PCBA	Size	Customizable
Material	PC	Flatness	MAX 0.76mm
Resistance	1.0x10e4-1.0x10e11Ω	Service	Accept OEM, ODM
Color	Black	Certificate	RoHS

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature, and other special requirements can be customized

High Temperature Resistance Jedec IC Trays 0

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.

3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component. Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply: We accept EXW, FOB, CIF, DDU, DDP, etc. You can choose the one that is the most convenient or cost-effective for you.

5. How to guarantee quality?
Reply: Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure a 100% qualified rate.

High Temperature Resistance Jedec IC Trays 1
