Product Details:
|
Material: | PPE | Color: | Black |
---|---|---|---|
Temperature: | 150°C | Property: | ESD |
Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
Highlight: | Black Jedec Matrix Trays,BGA Jedec Matrix Trays,Jedec antistatic trays |

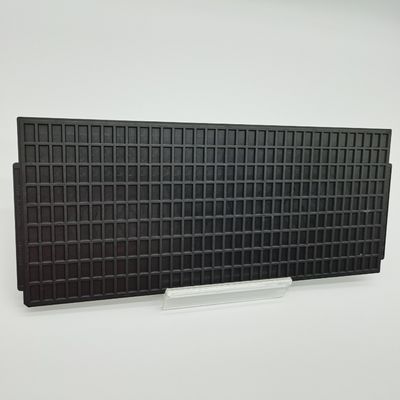

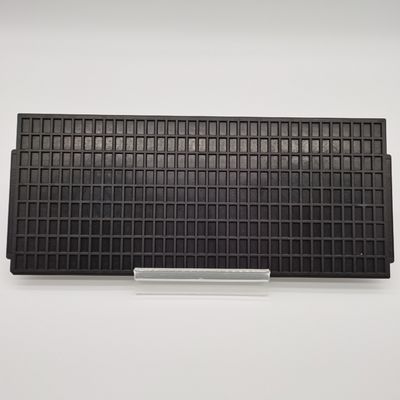

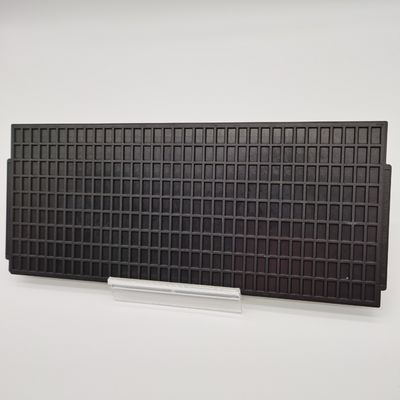

Jedec Tray/Matrix Tray/IC Tray/ESD Packing Tray
Antistatic trays are among those things that should top your must-have list for ESD control and management.
The trays provide critical protection to sensitive electronic components by preventing ESD damage during shipping, storage and/or handling.
Material Description
ESD Conductive Material
Also can be antistatic or Conductive and can be normal one .
Application:
IC, Electronic component, Semiconductor, Micro and Nano systems and Sensor IC etc
What is ESD safe material?
ESD-safe materials are created by combining an optimized base material – often ABS, PET-G, or PC – with an additive. The base material will determine the properties of the finished part, such an flexibility or strength. This means choosing the right base material for your application is an important decision.
Usage | Packaging of Electronic Components,Optical device, |
Feature | ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly |
Material | MPPO.PPE.ABS.PEI.IDP...etc |
Color | Black.Red.Yellow.Green.White and custom color |
Size | Customized size, rectangle,circle shape |
Mold type | Injection Mold |
Design | Original sample or we can create the designs |
Packing | By Carton |
Sample | Sample time: after draft confirmed and payment arranged |
Sample charge: 1. Free for stock samples | |
2. Custom Tray negotiated | |
Lead Time | 5-7 Working days |
The exact time should according to the ordered quantity |
Detail Description
Outline Line Size | 322.6*135.9mm | Brand | Hiner-pack |
Model | HN 1837 | Package Type | BGA IC |
Cavity Size | 10.8*5.3*1.1mm | Matrix QTY | 35*9=315PCS |
Material | PPE | Flatness | MAX 0.76mm |
Color | Black | Service | Accept OEM,ODM |
Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
