ODM ESD Custom Jedec Trays

ODM ESD Custom Jedec Trays

Brand Name:	Hiner-pack
Model Number:	HN19102
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

MPPO

Color:

Black

Temperature:

80°C~180°C

Property:

ESD,Non-ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW,FOB,CIF,DDU,DDP

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

Custom Jedec Trays

ESD Custom Jedec Trays

ODM Jedec Trays

Product Description

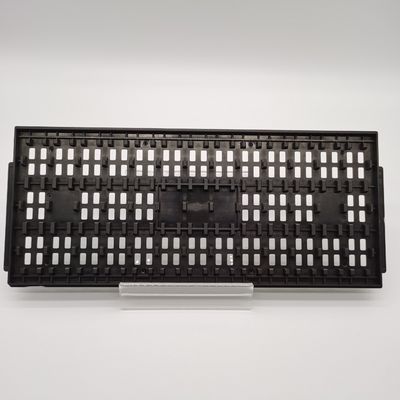

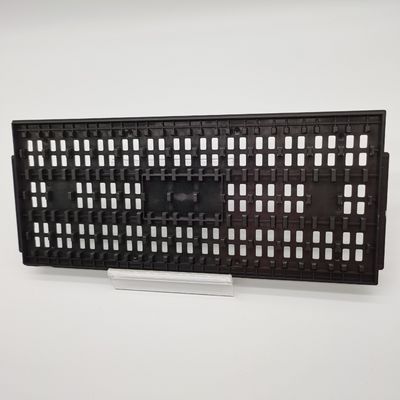

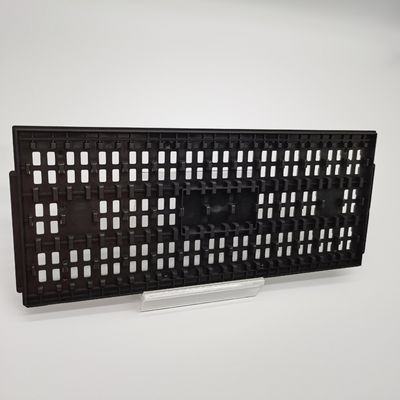

ODM ESD Custom Jedec Trays

Custom JEDEC trays manufactured to your drawing or sample—ideal for high-mix, high-value semiconductor products.

JEDEC matrix tray is developed for demanding electronic component handling environments where stability, precision, and automation compatibility are critical. Constructed using an ESD-safe polymer formulation, it ensures uniform static dissipation and excellent dimensional consistency.

Application:

1. Electronic Component Factories

2. SMT Factories

3. Semiconductor

4. Aerospace Industry

5. Military Industry

Advantages:

1. 12 years of experience in the ESD tray Field.
2. Adequate Supply of products.
3. Professional non-standard custom.
4. Materials such as MPPO, PPE, ABS, PEI, IDP, etc., are all available.

5. Products follow the JEDEC antistatic standard.
6. The tray is a permanent unitary antistatic, cut off the headstream of the static threat of the products.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.912.19mm
Model	HN19102	Cavity Size	27.418.46.4mm
Package Type	Connector	Matrix QTY	13*3=39PCS
Material	MPPO	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM, ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	RoHS

Usage	Packaging of Electronic Components, Optical device,
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO.PPE.ABS.PEI.IDP...etc
Color	Black.Red.Yellow.Green.White and custom color
Size	Customized size, rectangle, circle shape
Mold type	Injection Mold
Design	Original sample, or we can create the designs
Packing	By Carton
Sample	Sample time: after the draft is confirmed and payment is arranged
	Sample charge: 1. Free for stock samples 2. Custom Tray negotiated

Lead Time	5-7 Working days
Lead Time	The exact time should be according to the ordered quantity

ODM ESD Custom Jedec Trays 0

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us via Skype / Email / Phone / WhatsApp, in case of any delays.

2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.

3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
