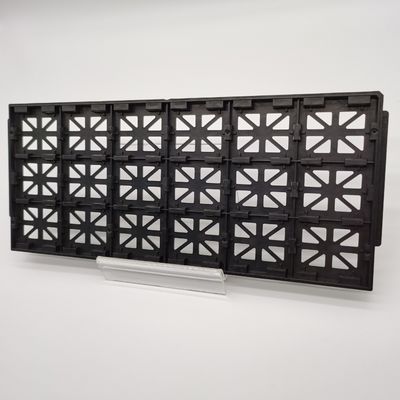

Anti-Static Custom JEDEC Trays For LGA Package

Anti-Static Custom JEDEC Trays For LGA Package

Brand Name: Hiner-pack
Model Number: HN20100
MOQ: 1000 pcs
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day
Detail Information
Place of Origin:
Made In China
Certification:
ISO 9001 ROHS SGS
Material:
MPPO, PPE, ABS, PEI, IDP...etc.
Color:
Black, Red, Yellow, Green, White...etc.
Temperature:
80°C~180°C
Property:
ESD, Non-ESD
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Flatness:
Less Than 0.76mm
Clean Class:
General And Ultrasonic Cleaning
Incoterms:
EXW, FOB, CIF, DDU, DDP
Customized Service:
Support Standard And Non-standard,precision Machining
Injection Mold:
Customized Case Need (Lead Time 25~30Days, Mold Life Span: 300,000 Times.)
Packaging Details:
80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Supply Ability:
The capacity is between 2500PCS~3000PCS/per day
Highlight:

Anti Static Custom Jedec Trays

,

LGA Custom Jedec Trays

,

LGA Jedec Trays

Product Description

Anti-Static Custom JEDEC Trays For LGA Package

Tailor every tray cavity to your device—whether for fragile die or complex IC modules—with our JEDEC tray customization service.


Hiner-pack provides a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing IC but also better protect the chip storage.We have designed a lot of packaging way, which also contains common BGA, FBGA, LGAQFN, QFP, PGA, TQFP, LQFP, SoC and SiP, etc. We can provide custom service for all packaging methods of the chip tray.

Benefits:

1. Small size, light weight, low transportation cost.
2. Each tray can accommodate a large number of chips suitable for transferring or loading samples for testing.
3. Stable anti-static performance, a good protection chip is not hurt by resistance.
4. Very good flatness, easy to operate on automatic equipment.
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods.
6. It can be stackable and can also ensure the design of maximum utilization of the tray matrix.

Advantage:

1. Have exported for more than 12 years.
2. Have a professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. A small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea, Japen...etc, Win many big famous customer reputation.
7. The factory has an ISO certificate. The Product complies with the RoHS standard.

Application:

Electronic component; Semiconductor; Embedded System; Display technology; Micro and Nano systems; Sensor; Test and Measurement Technology; Electromechanical equipment and systems; Power supply.

Technical Parameters:

Brand Hiner-pack Outline Line Size 322.6*135.9*10.3mm
Model HN20100 Cavity Size 35.65*45.75*5.2mm
Package Type LGA IC Matrix QTY 6*3=18PCS
Material PPE Flatness MAX 0.76mm
Color Black Service Accept OEM, ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate RoHS


Reference to the temperature resistance of different materials:

Usage Packaging of Electronic Components, Optical device,
Feature ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material MPPO, PPE, ABS, PEI, IDP...etc
Color Black, Red, Yellow, Green, White, and custom color
Size Customized size, rectangle, circle shape
Mold type Injection Mold
Design Original sample, or we can create the designs
Packing By Carton
Sample Sample time: after the draft is confirmed and payment is arranged
Sample charge: 1. Free for stock samples
                             2. Custom Tray negotiated
Lead Time 5-7 Working days
The exact time should be according to the ordered quantity

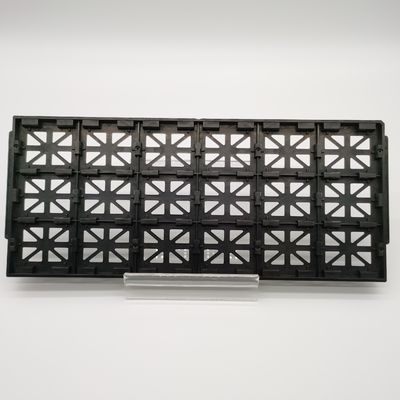

Anti-Static Custom JEDEC Trays For LGA Package 0

FAQ:

Q1: Are You a Manufacturer or a Trade Company?

We are a 100% Manufacturer specializing in packaging for over 10 years with a 1500 square meter workshop area, located in Shenzhen, China.

Q2: What is the material of your product?

ABS, PC, PPE, MPPO, PEI, HIPS...etc.

Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirements.

Q4: How can I get the quotation for the custom products?

Let us know the size of your IC or component thickness, and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
We can send them right now if you are interested in something we have in stock, and customize the project depending on the specific time.

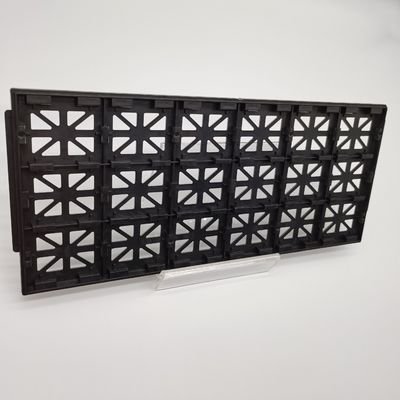

Anti-Static Custom JEDEC Trays For LGA Package 1
