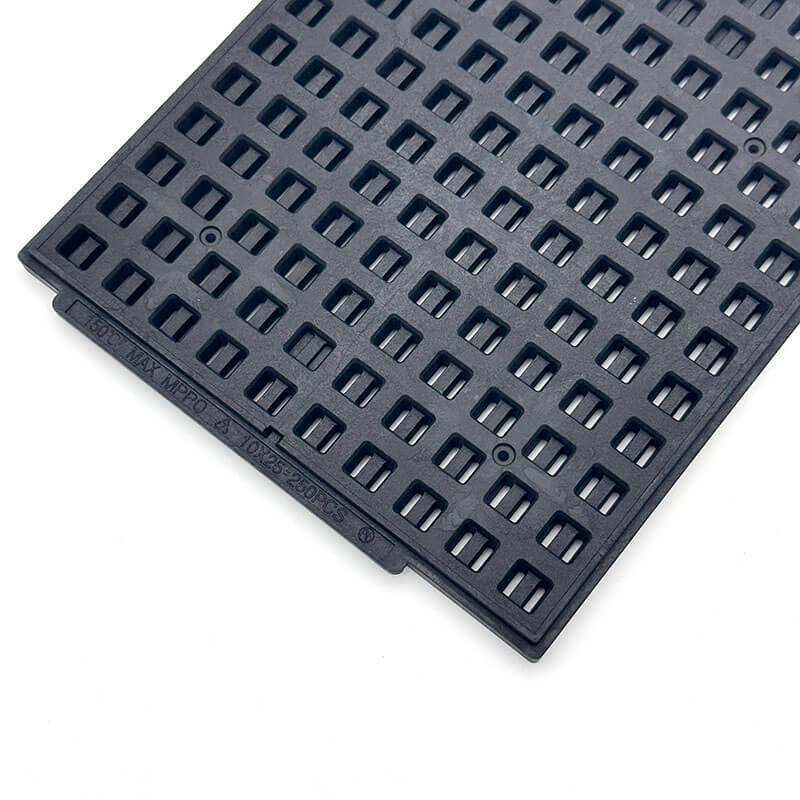

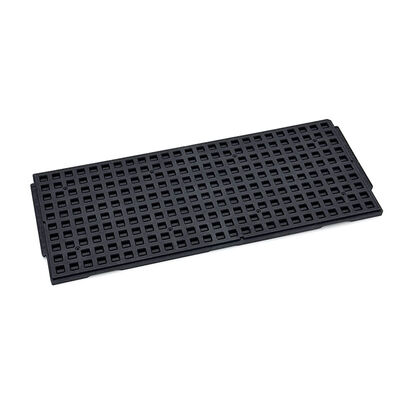

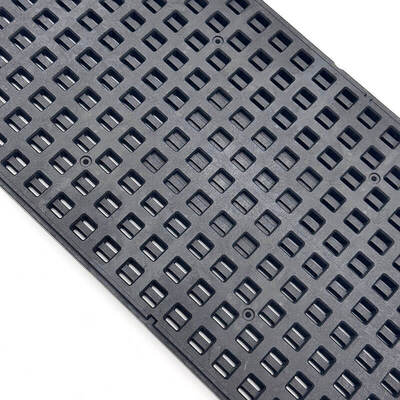

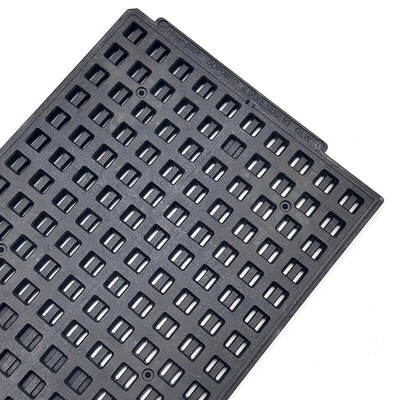

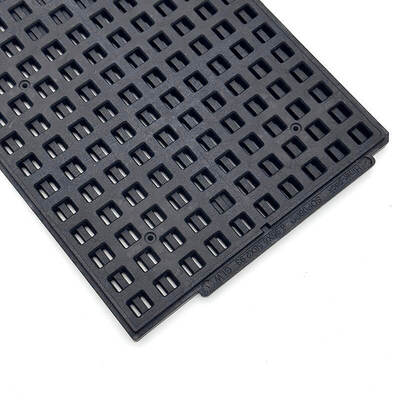

Reusable JEDEC Tray Matrix Tray for Sensitive Components Handling Storage Shipping

Brand Name:	Hiner-pack
Model Number:	HN24192
MOQ:	500pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Certification:

RoHS、ISO

Matrix:

10×25=250PCS

Humidity Resistance:

Up To 90%

Cavity Size:

6.95×6.58×2.93 Mm

Weight Capacity:

Varies, Typically Up To 500 Grams Per Cavity

Uv Resistance:

Yes

Warpage:

Less Than 0.76mm

Reusability:

Reusable

Application:

IC Handling, Storage, And Shipping

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Highlight:

Humidity Resistant JEDEC Matrix Tray

Reusable IC Component Tray

UV Resistant Semiconductor Storage Tray

Product Description

Product Details

JEDEC IC matrix trays offer compatibility with most semiconductor and PC board manufacturing equipment. With decades of history and familiarity, support products for JEDEC matrix trays are widespread and global. This includes corrugated boxes, protective covers, retaining straps, modular feeders, and a wealth of industry knowledge.

Key Features/ Benefits

ESD-safe material with controlled surface resistivity
JEDEC standard outer dimensions
Precise cavity dimensions: 6.95×6.58×2.93 mm
Precision-molded matrix pockets for secure IC positioning
Stackable design for safe storage and logistics
Durable and reusable construction

Specifications

Brand		Hiner-pack
Model		HN24192
Material		MPPO
Tray Type		Matrix tray
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×7.62 mm
Cavity Size		6.95×6.58×2.93 mm
Matrix QTY		10×25=250PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Standard		JEDEC compliant

Applications

This JEDEC IC tray is designed for secure handling, storage, and transportation of sensitive semiconductor components. Manufactured from high-quality ESD-safe plastic materials, it provides reliable electrostatic protection and dimensional stability throughout repeated use cycles.

IC handling and staging
Semiconductor storage
Automated pick-and-place systems
Packaging and shipping operations

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
