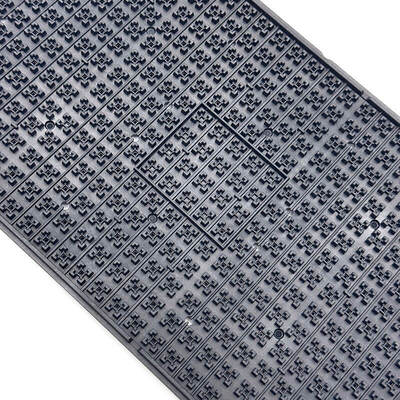

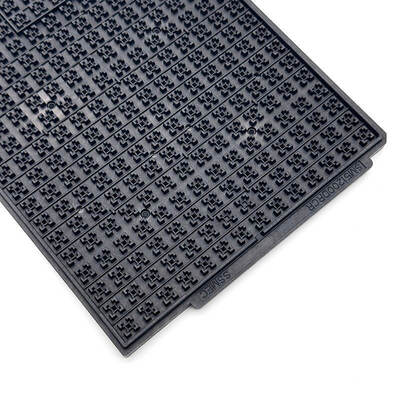

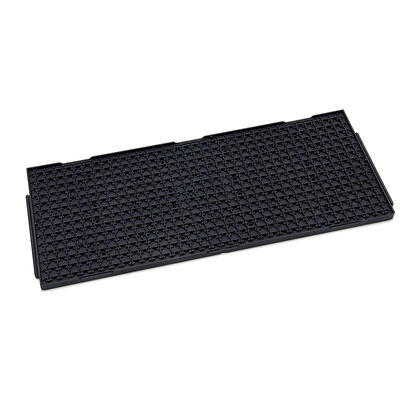

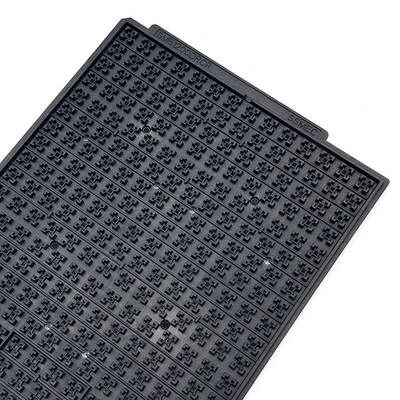

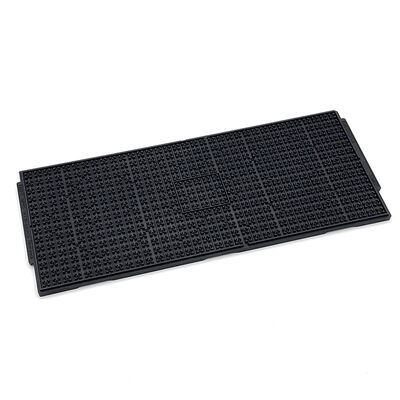

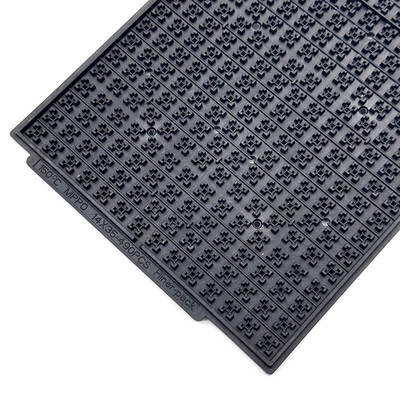

Custom JEDEC Tray with High Precision and Reusable Design for IC and Semiconductor Packaging

Name: Custom JEDEC Tray with High Precision and Reusable Design for IC and Semiconductor Packaging
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN24223
Price: 1.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN24223
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Usually Black Or Dark Gray For ESD Protection

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

3x3x0.92 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

14x35=490 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

Custom JEDEC IC trays

JEDEC Tray for MEMS

SiP compatible JEDEC trays

Product Description

Custom JEDEC Tray Manufacturer for IC / SiP / MEMS

We provide custom JEDEC tray solutions for advanced semiconductor packaging, including SiP, MEMS and complex IC modules.

Key Features/ Benefits

Full customization based on chip drawing
High precision cavity for complex IC structures
Multiple material options (PEI / MPPO / PPE)
Fast mold development

Specifications

Brand		Hiner-pack
Model		HN24223
Material		MPPO
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×7.62 mm
Cavity Size		3x3x0.92 mm
Matrix QTY		14x35=490 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

JEDEC trays are widely used for IC protection during manufacturing and transport, especially for ESD-sensitive devices

SiP packaging
MEMS devices
Advanced semiconductor modules

Packaging & Shipping/ Services

JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Professional engineering team
Stable supply for global semiconductor customers
