High Capacity JEDEC IC Trays for Semiconductor Modules

Brand Name:	Hiner-pack
Model Number:	HN24225
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Usually Black Or Dark Gray For ESD Protection

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

48.5x45.5 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

2x5=10 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

Deep Pocket JEDEC IC tray

Large IC module storage tray

JEDEC standard IC holder

Product Description

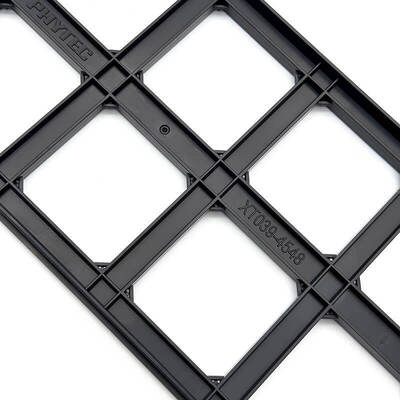

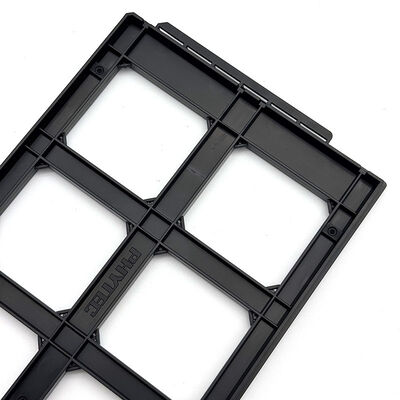

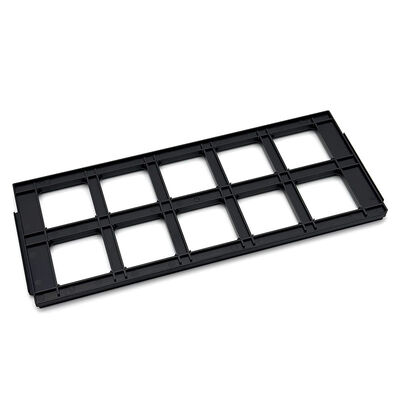

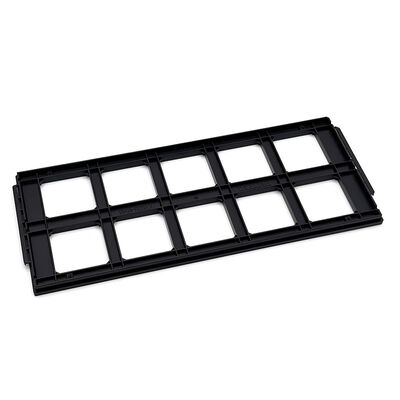

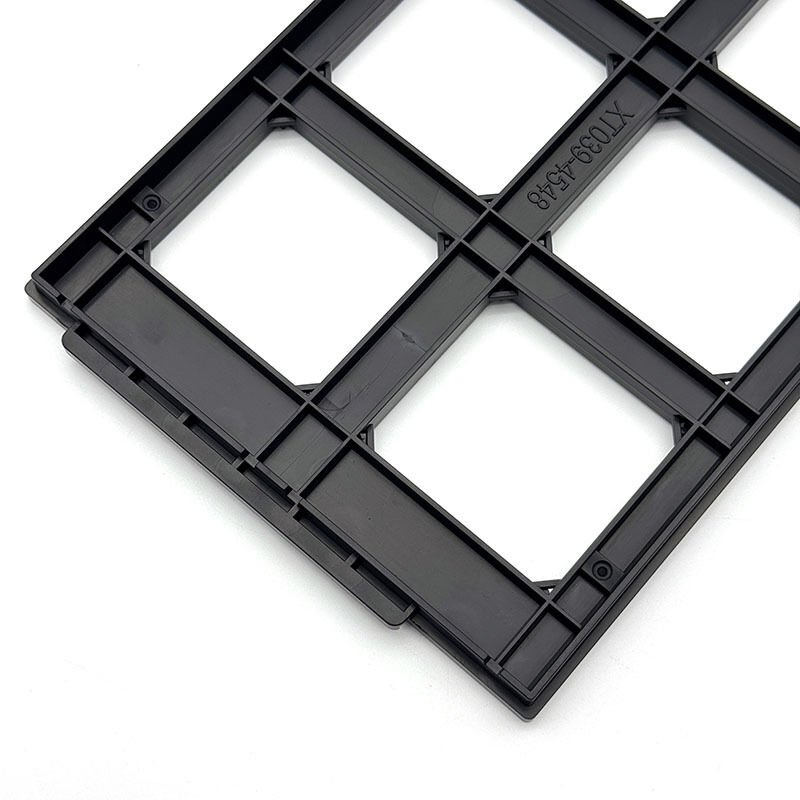

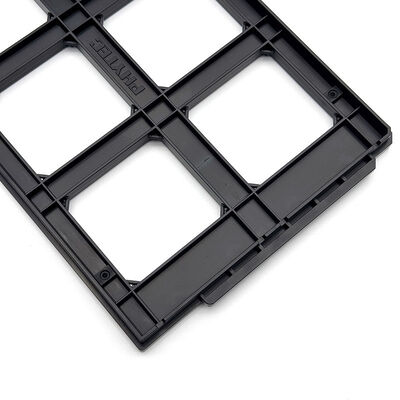

High Capacity JEDEC IC Trays for Semiconductor Modules

High Capacity JEDEC IC Trays are perfectly built for large semiconductor modules. High Capacity JEDEC IC Trays well fit big and thick semiconductor devices, and offer steady and secure placement to keep components in good condition.

High Capacity JEDEC IC Trays come with practical deep cavity design and strong solid structure. High Capacity JEDEC IC Trays deliver stable reliable support for large parts during daily production and handling work.

High Capacity JEDEC IC Trays greatly protect modules from damage in transportation. Custom pocket designs are also provided, bringing flexible practical choices for semiconductor module processing needs.

Key Features/ Benefits

PPE Anti-Static Material Protection
Deep Cavity Design for Large Modules
Strong Stable Structural Support
Effective Transport Damage Prevention
Customizable Pocket Cavity Design
Secure Placement for Thick Devices

Specifications

Brand		Hiner-pack
Model		HN24225
Material		PPE
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×10.6 mm
Cavity Size		48.5x45.5 mm
Matrix QTY		2x5=10 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

High Capacity JEDEC IC Trays adopt PPE anti-static material. Trays offer reliable IC protection in manufacturing and transport, especially for ESD-sensitive semiconductor devices.

Power semiconductor modules
Industrial control IC components
Large & thick semiconductor devices
Module packaging, storage and transportation

Packaging & Shipping/ Services

High Capacity JEDEC IC Trays adopt high-quality durable PPE anti-static material for inner packaging. Trays support stable safe stacking and come with buffer protection designs to avoid damage during transportation.

Customized cavity packaging solutions are available for large semiconductor modules. All products are delivered by reliable logistics with full shipment tracking, ensuring safe worldwide delivery.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Automotive project experience
In-house mold design capability
Fast prototype development
Strict material control
Stable supply for global semiconductor customers
