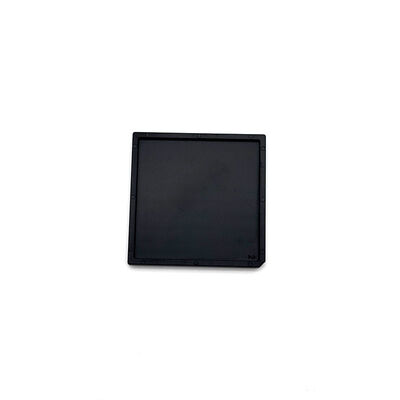

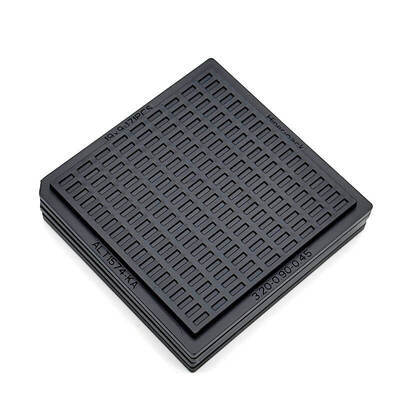

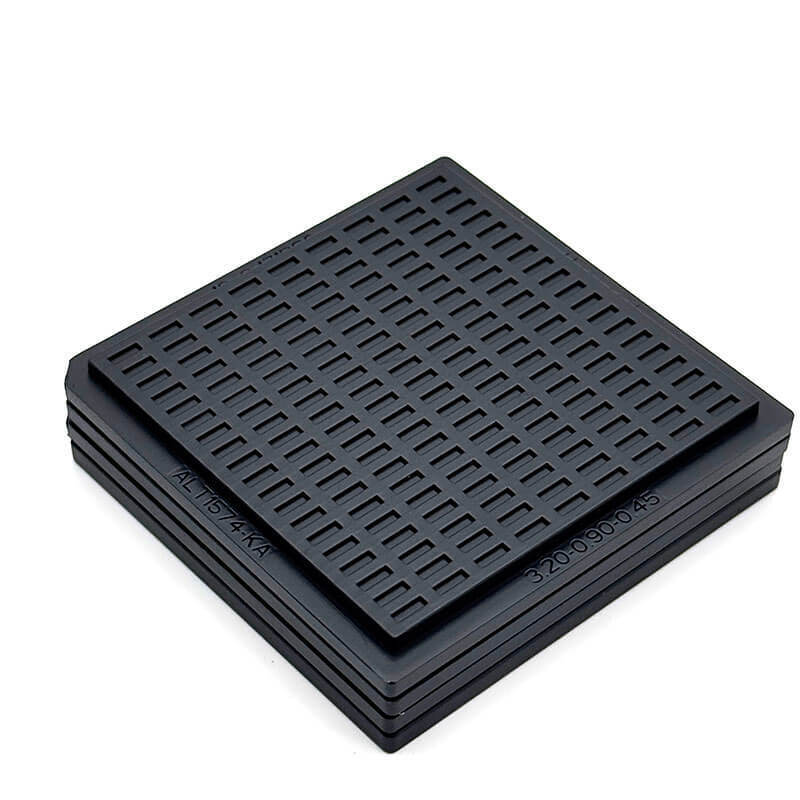

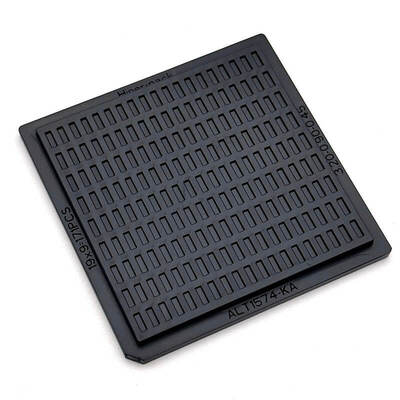

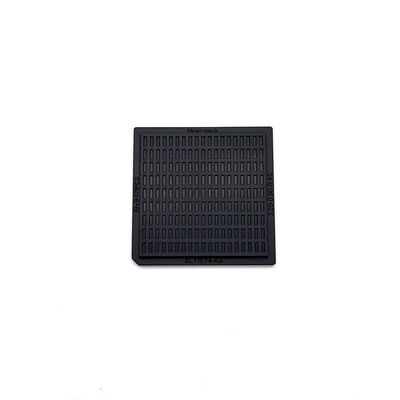

High-Precision Cleanroom Waffle Trays for Safe IC Handling & Pollution Prevention

Brand Name:	Hiner-pack
Model Number:	HN24136
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Outline Line Size:

50.7×50.7×7.4 Mm

Cavity Size:

3.00x0.70x0.30 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Warpage:

Warpage MAX 0.3mm

Capacity:

9x19=171 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

High-Precision Cleanroom Waffle Trays for Safe IC Handling & Pollution Prevention

High-Precision Cleanroom Waffle Trays meet strict cleanroom industry standards. Trays deliver excellent contamination control performance, and offer safe stable handling for delicate precision IC chips.

High-Precision Cleanroom Waffle Trays own compact precise grid structure. Trays effectively prevent dust pollution damage, and perfectly fit semiconductor manufacturing and testing processes.

High-Precision Cleanroom Waffle Trays support customized cavity designs. Trays protect fragile fine pitch chips well, and ensure stable reliable use in cleanroom logistics and storage.

Key Features/ Benefits

Anti-static & dust-proof design for safe chip handling
Effective IC Contamination Control
Suitable for Delicate Fine Pitch ICs
More than 12 years of export experience.
Cleanroom-grade contamination control to protect sensitive ICs
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN24136
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×7.4 mm
Cavity Size		3.00x0.70x0.30 mm
Matrix QTY		9x19=171 PCS
Warpage		MAX 0.2mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Cleanroom-Grade Waffle Pack Chip Trays deliver reliable IC protection through the whole semiconductor manufacturing and transportation process. Trays feature great contamination control performance, ESD anti-static protection, and fully protect delicate fine pitch chip devices.

Trays are widely applied to fine pitch IC packaging (QFN, BGA, CSP bare die), JEDEC compatible automated pick-and-place production lines, semiconductor inspection & testing procedures, as well as cleanroom IC logistics transportation and daily storage management.

Customized Services

Cleanroom-Grade Waffle Pack Chip Trays support fully customized cavity sizes and layout designs. Trays adopt cleanroom-grade dust-free anti-static material, with stable stacking structure to avoid contamination damage during transit.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
