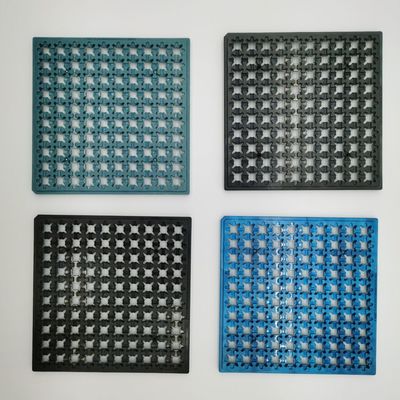

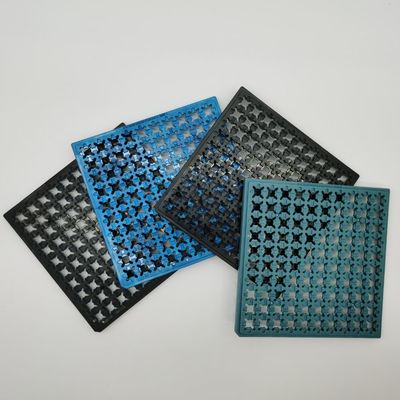

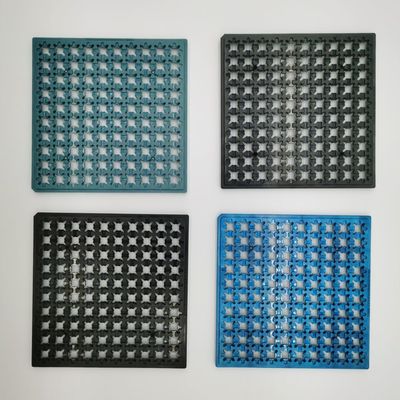

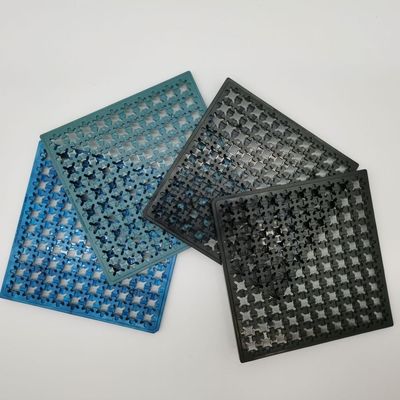

ESD Waffle Pack Electronic Components Tray

ESD Waffle Pack Electronic Components Tray

Brand Name: Hiner-pack
Model Number: To meet all kinds of custom needs of customers
MOQ: 1000 pcs
Price: 0.25~0.55usd/pcs
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day
Detail Information
Place of Origin:
Made In China
Certification:
ISO 9001 ROHS SGS
Material:
ABS.PC.PPE.MPPO...etc
Color:
Black.Red.Yellow.Green.White..etc
Property:
ESD,Non-ESD
Design:
Standard And Non-standard
Size:
All Kinds Of
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Clean Class:
General And Ultrasonic Cleaning
Incoterms:
EXW,FOB,CIF,DDU,DDP
Injection Mold:
Lead Time 20~25Days,Mold Life Span: 30~450,000 Times
Molding Method:
Injection Moulding
Packaging Details:
It depends on the QTY of order and size of product
Supply Ability:
The capacity is between 4000PCS~5000PCS/per day
Highlight:

ESD Waffle Electronic Components Tray

,

SGS Electronic Components Tray

,

sgs ESD electronic tray

Product Description

ESD Waffle Pack Electronic Components Tray

Durable Antistatic ABS Non-Standard Waffle Pack With Different Size Can Be Customized For Optoelectronic Components

As the tray in the field of optical application, more and more customers to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized, provide one-stop service from design to production to packaging.


A chip tray is a carrier for bare dies used for the transportation and handling of a small batch of dies. A waffle pack is typically a plastic tray with pockets sized up for a particular die size.

IC Packaging delivery systems for protecting and transporting bare die, CSP, ... die (KGD), chip scale packaging (CSP), and wafer scale packaging (WSP).

 Advantages:

1. More than 12 years of export experience.
2. With professional engineers and efficient management.
3. Short delivery time and good quality.
4. Support small batch production in the first batch.
5. Professional sales within 24 hours efficient reply.
6. The factory has ISO certification, and the products comply with the RoHS standard.
7. Our products are exported to the United States, Germany, the UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, with service and cost performance being well recognized.

Technical Parameters:

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM TBC Customizable
Provide professional design and packaging for your products

ESD Waffle Pack Electronic Components Tray 0FAQ:

Q: Can you do OEM and customized design IC trays?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase quantity of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value, and all samples shipping costs are normally is by collected or as agreed.
Q: What kind of Incoterms can you do?
A: We could support doing EXW, FOB, CNF, CIF, CFR, DDU, DAP. etc., and other terms as agreed.
Q: What method can you use to ship the goods?
A: By sea, by air, by express, by mail post according to customer order quantity and volume.
