25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry

25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry
25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry 25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry 25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry

Large Image :  25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: Wafer Jar # 200mm
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS(Negotiable)
Price: 5~8 USD/SET
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 20~25 Working days
Payment Terms: T/T
Supply Ability: 200~300sets per day

25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry

Description
Material: PP Color: Natural Transparent
Set Contains: Lid And Base Height: 51mm
Capacity: 25PCS Property: Non-ESD
Incoterms: EXW,FOB,CIF,DDU,DDP Method: Directly Open The Lid
High Light:

25PCS Wafer Jar

,

51mm Wafer Jar

,

51mm wafer shipping containers

25PCS 51mm Natural Transparent Wafer Jar For Semiconductor Industry

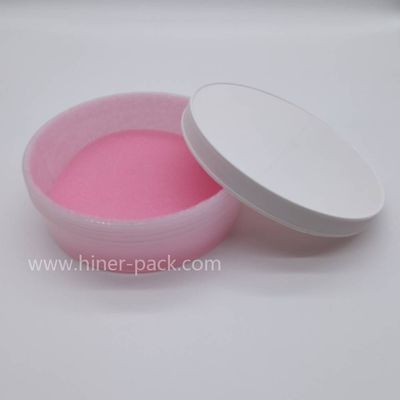

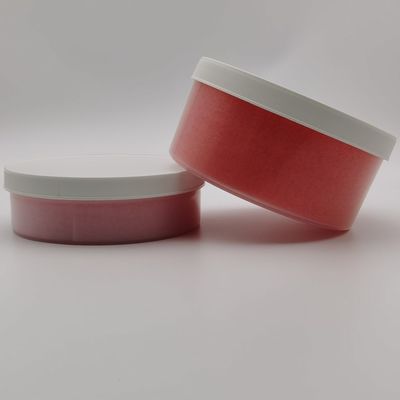

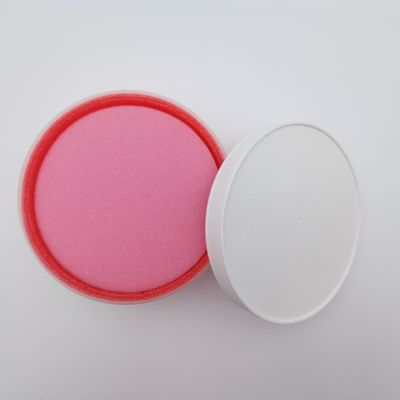

Transparent Wafer Jar With Open Box Design Can Be Used To Carry Wafers Of Different Thickness

Wafer Jar are often used to carry wafers and silicon wafers. The upper cover and lower bottom are combined with an easily rotatable design. The user can easily open it, and it also makes it easier to place and pick up the wafers, So it's convience for manual operation.

This box is made of PP material with micro-elastic properties, and is used in conjunction with foam pads and liner of the same specifications to maximize the prevention of wafer wear and scratches during transportation. At the same time, its light weight also lowers the cost of loading and transportation when the finished product is shipped, and economy and convenience are also one of its advantages.

The quantity loaded in the box can be arbitrarily matched. If the quantity of samples carried is small, you can fill them with foam pads and other , which can meet the various needs of samples and bulk shipments, eliminating users' troubles and worries.

Wafer shipping box series

Wafer shipping, storage and packaging boxes
Coin style shippers
Wafer jar kits
Flex frame shippers
Coinstack style shipper



Inches range from 4 inches to 8 inches list:

Product Dimension Height Diameter Material Color Surface Resistance
Wafer Jar 4″ 1.5" 113mm Ultra Clean PP Transparent N/A
6″ 2" 163mm
6″ 3" 163mm
8″ 2" 230mm
8″ 3" 230mm
4″ 1.5" 113mm Conductive PP Black 1.0x10E4~1.0x10E11Ω
6″ 2" 163mm
6″ 3" 163mm
8″ 2" 230mm
8″ 3" 230mm
Foam pad 4″ 6″ 8" 5mm 4″ 6″ 8" PE Pink 1.0x10E8~1.0x10E11Ω
liner 4″ 6″ 8" 1.5" 2" 3" 4″ 6″ 8" PE Pink N/A
Tyvek Paper 4″ 6″ 8" N/A 4″ 6″ 8" Tyvek White 1.0x10E8~1.0x10E11Ω


Product Application



Wafer loading, substrate loading and other semiconductor industry


Packaging


Packing according to customer's specified size



Advantages



1. More than 10 years export experience.

2. With professional engineers and efficient management.

3. Short delivery time and good quality.

4. Support small batch production in the first batch.

5. Professional sales within 24 hours efficient reply.

6. Factory has ISO certification, and the products comply to RoHS standard.

7. Our products are exported to the United States, Germany, UK, Korea, Japan, Israel, Malaysia, Singapore, etc. won the praise of many           customers, service or cost performance has been well recognized.
