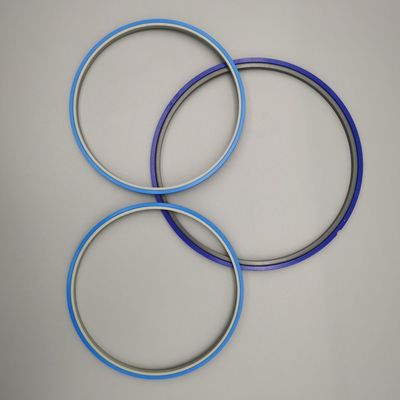

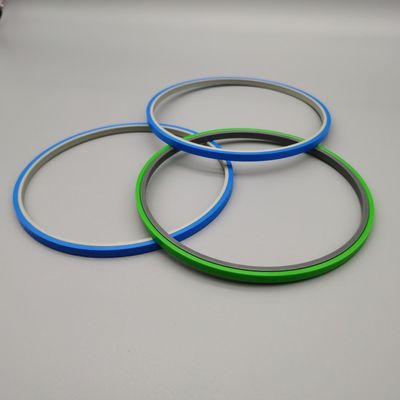

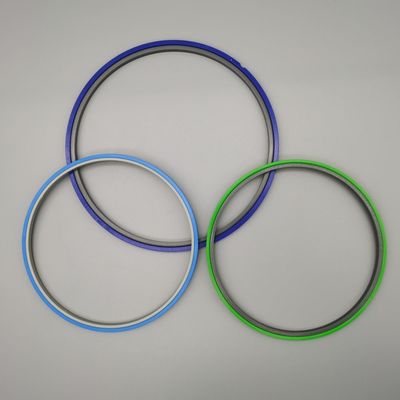

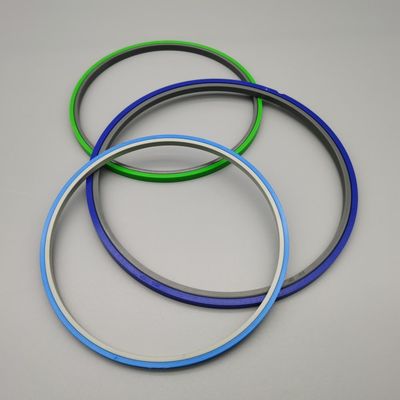

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer
Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer
Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer

Large Image :  Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: 4" 5" 6" 8" 12"
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 2~5USD/PCS
Packaging Details: 200PCS/Carton
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: 1000~2000 pcs/day

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer

Description
Material: PPS Color: Black,Gery,Blue,Green,White
Shape: Round Thickness: 6mm
Property: Non-ESD Use: Transport,Storage,Packing
HS Code: 39239000 Customize: Accept
High Light:

Plastic Wafer Hoop Ring

,

Wafer Hoop Ring

,

COB Wafer Hoop Ring

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer
PPS Plastic Film Frame Is Used For Packaging The Wafer After Cutting

Wafer Hoop Rings/Plastics Grip Rings

Wafer hoop ring is used in the wafer COB packaging process. The first step is to expand the wafer. The whole wafer film provided by the manufacturer is evenly expanded by using an expander, so that the wafer particles closely arranged on the surface of the film can be opened, which is convenient for the subsequent procedures.

Plastic wafer hoop rings are of the highest quality, yet very affordable. Offered in sizes ranging from 4 inches to 8 inches, every selection is durable, dependable and heat resistant to between 85 and 100 degrees Celsius.


Advantages


Low cost alternative to metal flex frames;

Top and Bottom Indicator Marking
Full Range of Sizes, Customized Colours Available
Design and Produce to Exact Tolerance
Durable and Heat Resistant
We also provide custom tailored to your specifications and needs. Available in ESD also.


Wafer Size(In)

Ring ID(mm)

Ring OD(mm)

Thickness(mm)

Color (Inside/Outside)

4

140

152

6

Blue/Grey

5

170

186

6

Green/Grey

6

195

210

6

Green,Blue/Grey

8

225

240

6

Blue/Grey

12

325

345

6

Blue/Grey


Service

We offer ESD total Solution to Customer, Many other related product available if needed.
OEM is welcomed or design as customer request.
The best & professional sale services.
Honest but competitive price and Quality assured quotation.
100% QC inspection before shipment.

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer 0

FAQ

Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?

It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.

Heat Resistant Plastic Wafer Hoop Ring For Expand Wafer 1
