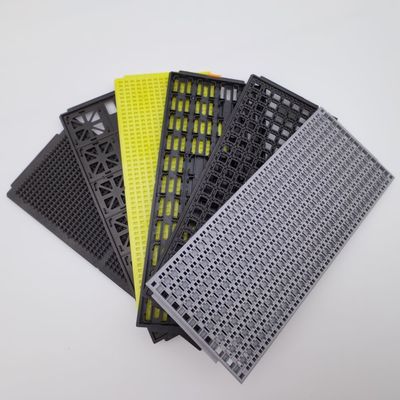

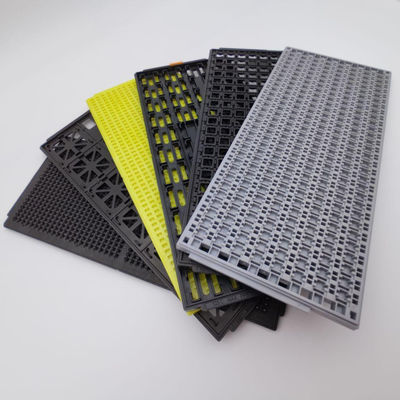

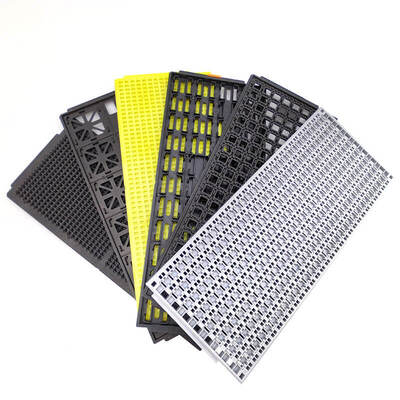

Regular Size Colorful Antistatic Shipping Trays Thermostable For IC Component

Regular Size Colorful Antistatic Shipping Trays Thermostable For IC Component

Brand Name:	Hiner-pack
Model Number:	Jedec standard tray 322.6135.97.62&12.19mm
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

MPPO.PPE.ABS.PEI.IDP...etc

Color:

Black.Red.Yellow.Green.White..etc

Temperature:

80°C~180°C

Property:

ESD,Non-ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW,FOB,CIF,DDU,DDP

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size:35*30*30cm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

ESD Shipping Trays

PCB ESD Shipping Trays

jedec tray

Product Description

Colorful ESD Shipping Trays Thermostable For IC Component

Colorful ESD IC Trays With Different Cavity Sizes For the Semiconductor Industry

Jedec trays is a standard-defined tray for transporting, handling, and storing complete chips and other components,and the production come in the very same outline dimensions of 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). Trays come in a number of different profiles.

Frequently Asked Questions:

Q: How does it work?

A: IC tray is a way of loading packaged chips or all kinds of electronic components that have been assembled. When the chips need to be packaged, transported and shipped or sent to the downstream manufacturers for testing, it is necessary to use packaging materials such as trays to load the accessories. The maximum protection of the chips and components can be realized through pallet loading.

At the beginning of the design of the tray is also based on the shape structure of the chip and components as the basic basis, combined with JEDEC international design standards to design, the final product is not only very good adaptive components are fully in line with the automatic equipment interface, so as to reduce the number of manual operation, more can maximize the realization of reasonable resource allocation.

Q: Why is the color of the IC tray mainly black?

A: Generally speaking, JEDEC trays are required to meet the high temperature resistance requirements of 125~150°C. Other colors besides black may not be so good in high temperature resistance, so most of the high temperature resistant trays on the market are black.

Q: Why choose a high-temperature plastic IC tray?

A: High temperature resistance can provide performance guarantee, while protecting the chip to the greatest extent, it also realizes the integration of automation equipment, which meets the high temperature requirements of the equipment. Plastic products can be recycled and reused many times, which is beneficial to environmental protection while reducing transportation costs and maximizing raw materials value.

The product is compatible with jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips and avoiding manual picking and chip oxidation.

The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carrying components or IC of the tray, carrying function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, and improve work efficiency. ESD Shipping Trays.

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature, and other special requirements can be customized

Regular Size Colorful Antistatic Shipping Trays Thermostable For IC Component 0

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / WhatsApp, in case of any delays.
2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.
3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component. Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply: Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure a 100% qualified rate.
