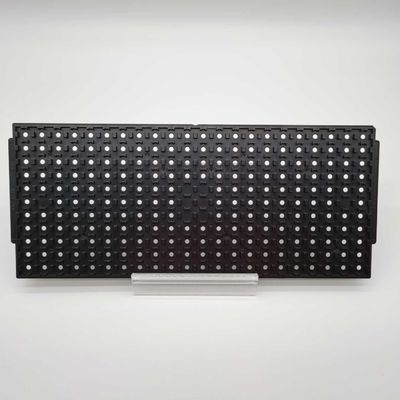

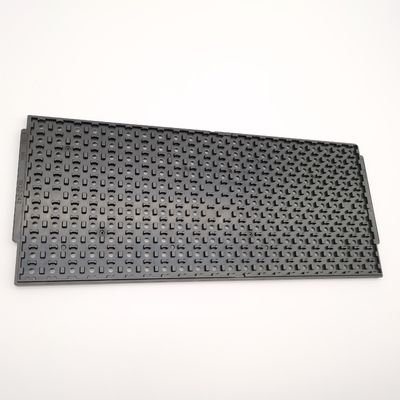

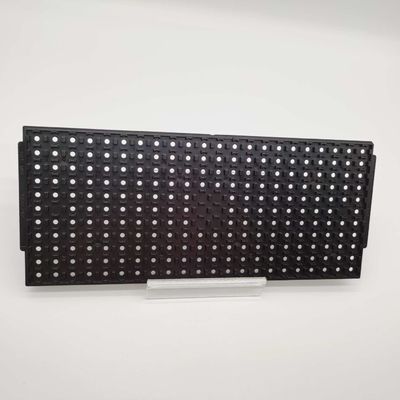

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC
High Temperature Resistance Jedec IC Trays For MEMS Sensor IC High Temperature Resistance Jedec IC Trays For MEMS Sensor IC High Temperature Resistance Jedec IC Trays For MEMS Sensor IC

Large Image :  High Temperature Resistance Jedec IC Trays For MEMS Sensor IC

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN1952
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC

Description
Material: PPE Color: Black
Temperature: 150°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

MEMS Jedec IC Trays

,

ROHS Jedec IC Trays

,

Jedec anti static tray

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC

ESD High Temperature Resistance Jedec Trays With Different Cavity Size For MEMS Sensor IC

Quick Detail:



Outline Line Size 322.6*135.9*7.62mm Brand Hiner-pack
Model HN1952 Package Type IC
Cavity Size 10.2*8.5*2.9mm Size Customized
Material PPE Flatness MAX 0.76mm
Resistance 1.0x10e4-1.0x10e11Ω Service Accept OEM,ODM
Color Black Certificate ROHS



1. Support various sizes of customization
2. Good anti-static and high temperature resistance
3. All sizes meet the international Jedec standard design requirements
4. Conventional PPE and MPPO materials can meet the requirements of high temperature resistance of 150°C
5. Have design experience of various small sizes and components
6. Experience in designing chip loading trays with various packaging methods, such as BGA.QFN.QFP.SOP.SIC...etc
7. Different color trays can be customized

Small Question 1
Why the color of Jedec tray is mainly black?
Answer
Generally, the demand of Jedec Tray must meet the high temperature resistance of 125~150°C, so most of our common black products, for the requirements of different colors, because anti-static and high temperature requirements are opposed, so most of the high temperature resistant plates on the market are black.

Small Question 2
Why choose high temperature plastic Jedec tray?
Answer
High temperature resistance can provide performance guarantee, while protecting the chip to the greatest extent, it also realizes the integration of automation equipment, which meets the high temperature requirements of the equipment. Plastic products can be recycled and reused many times, which is beneficial to environmental protection while reducing transportation costs and maximizing raw materials value.

Jedec tray is compatible with jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips and avoiding manual picking and chip oxidation.


The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carriing components or IC of the tray, carriing function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, improve work efficiency.

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω

Color, temperature and other special requirements can be customized

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC 0

FAQ


1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.

3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.

High Temperature Resistance Jedec IC Trays For MEMS Sensor IC 1
