Product Details:
|
| Material: | ABS.PC.MPPO...etc | Color: | Black.Red.Yellow.Green.White..etc |
|---|---|---|---|
| Temperature: | General 80°C~100°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | 0.3mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Suitable For All Kinds Of Bar.Die.Chip Devices Or Parts | Injection Mold: | Customized Case Need(Lead Time 20~25Days,Mold Life Span: 450,000 Times.) |
| High Light: | ODM Waffle Pack Tray,ESD Waffle Pack Tray,ISO Waffle blister tray |
||

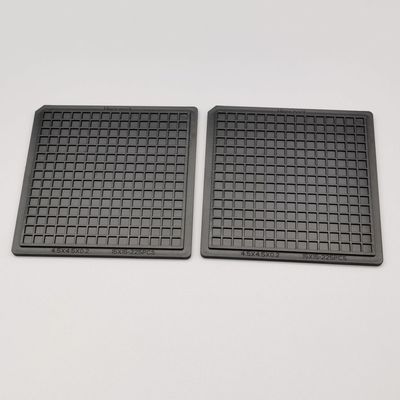

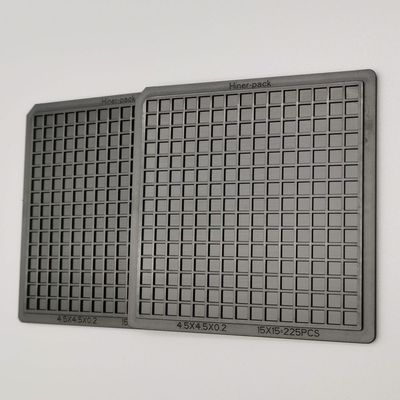

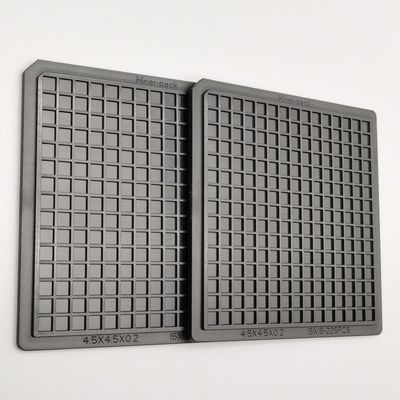

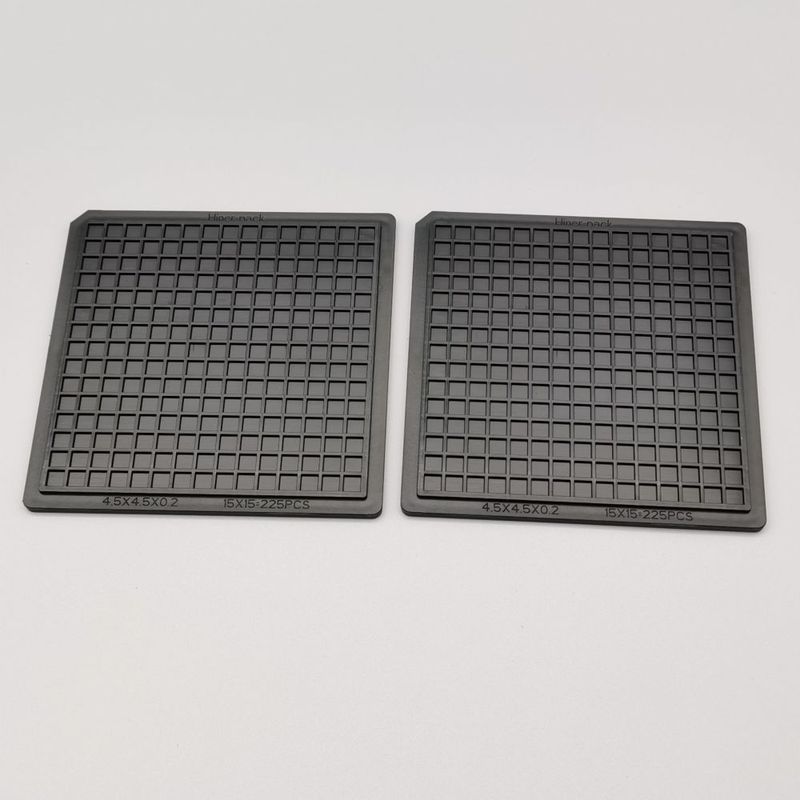

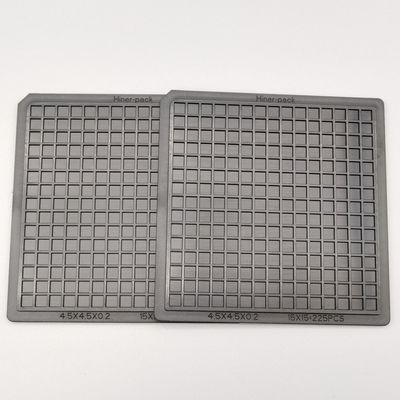

Electronic Parts Waffle Pack Tray Stable Resistance ESD ABS Custom Size
Stable Resistance ESD ABS Waffle Pack With Different Outline Size Can Be Customized For Electronic Parts
The tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized,Provide one-stop service from design to production to packaging.
The anti-static tray is made of special high-temperature resistant plastic by injection molding process, and the resistance value of the material surface is according to international standard.
It also can eliminate product static electricity, a large number of electronic devices and product production process of turnover loading, packaging, storage and transportation. In the industry, it is also known as the conductive electrostatic tray, which is suitable for the storage of precision electronic components. According to the requirements of customers' electronic components, there are different requirements for the size.
Anti - static tray is an ideal tool for storing electronic components. Due to the addition of special polymer chains in the raw material, the finished product has permanent electrostatic dissipation properties. The finished product has good mechanical strength and heat resistance; Good impact resistance and chemical corrosion resistance. It will not change its anti-static performance due to the environment, time and temperature.
1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
| Outline Line Size | 101.57*101.57*3mm | Brand | Hiner-pack |
| Model | HN21012-2 | Package Type | IC Parts |
| Cavity Size | 8.5*8.5mm | Matrix QTY | 15*15=225PCS |
| Material | ABS | Flatness | MAX 0.3mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
Factory Advantages
1. More than 10 years export experience
2. With professional engineers and efficient management
3. Short delivery time and good quality
4. Support small batch production in the first batch
5. Professional sales within 24 hours efficient reply
6. Factory has ISO certification, and the products comply to RoHS standard.
7. Our products are exported to the United States, Germany, UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, service or cost performance has been well recognized
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
