Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Property: | ESD | Design: | Standard And Non-standard |
| Size: | 4 Inch | Surface Resistance: | 1.0x10E4~1.0x10E11Ω |
| Clean Class: | General And Ultrasonic Cleaning | Molding Method: | Injection Moulding |
| High Light: | 4Inch Waffle Pack Trays,ESD Waffle Pack Trays,4 Inch jedec standard trays |
||

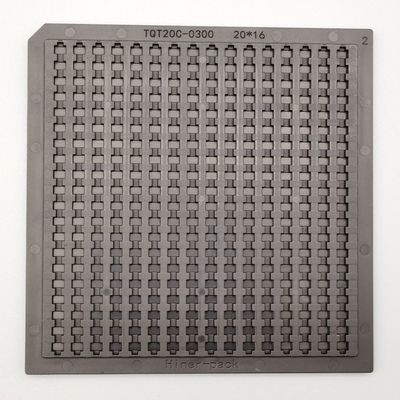

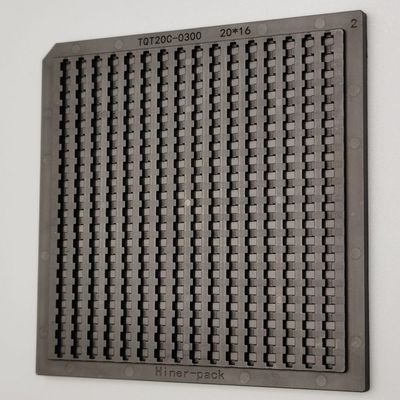

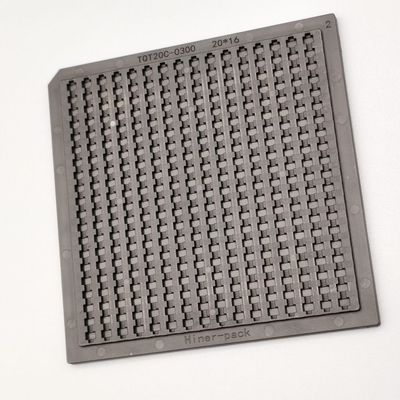

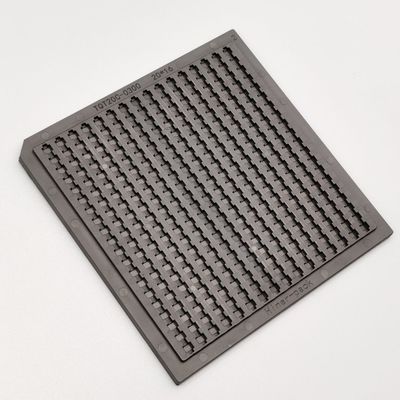

Special Tunneling Shape Waffle Pack Trays 4 Inch ESD Material
Special Tunneling Shape Can Be Designed For Anti-Static Waffle Pack
Waffle pack has many applications including the packaging of die, die attach preforms and bond pads.
Waffle pack is becoming a much more desirable form of packaging as component sizes continue to shrink.
Waffle pack has distinct advantages over taping, particularly with parts that are very small. Waffle packing permits the automated loading of parts as small as .0005.
Our Advantages
1. Flexible OEM service: we can produce products according to customer’s sample or design.
2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3. Complicated workmanship: tooling making, Injection molding,Production
4. Comprehensive customer service: from customer consultation to after sales service.
5. 10 years’ex perience of OEM for USA and EU customers.
6. We have our own factory and can control quality in high level and produce products quickly and flexibly.
Service
We offer ESD total Solution to Customer, Many other related product available if needed.
OEM is welcomed or design as customer request.
The best & professional sale services.
Honest but competitive price and Quality assured quotation.
100% QC inspection before shipment.
Detail Information
| Outline Line Size | 101.8*101.6*5mm |
| Model | HN21001 |
| Cavity Size | 2.07*3.07*2.5mm |
| Material | PC |
| Color | Black |
| Resistance | 1.0x10e4-1.0x10e11Ω |
| Brand | Hiner-pack |
| Package Type | IC Parts |
| Matrix QTY | 20*16=320PCS |
| Flatness | MAX 0.3mm |
| Service | Accept OEM,ODM |
| Certificate | ROHS |
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Material Description
ESD Conductive Material
Also can be antistatic or Conductive and can be normal one .
Application
IC, Electronic component, Semiconductor, Micro and Nano systems and Sensor IC etc
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
