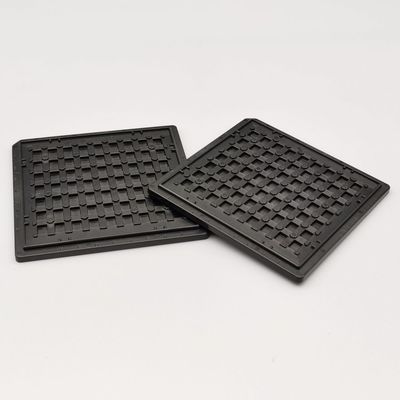

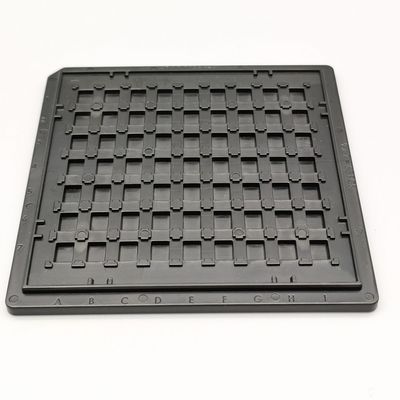

Tiny Modules 4 Inch Waffle Pack Chip Trays ESD Stable Anti Static

Tiny Modules 4 Inch Waffle Pack Chip Trays ESD Stable Anti Static

Brand Name:	Hiner-pack
Model Number:	HN21016
MOQ:	1000 pcs
Price:	$0.35~$0.85(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 4000PCS~5000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

Color:

Black

Property:

ESD

Design:

Standard

Size:

4 Inch

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Clean Class:

General And Ultrasonic Cleaning

Use:

Transport,Storage,Packing

Packaging Details:

It depends on the QTY of order and size of product

Supply Ability:

The capacity is between 4000PCS~5000PCS/per day

Highlight:

ESD Waffle Pack Chip Trays

ISO Waffle Pack Chip Trays

Waffle esd plastic trays

Product Description

Tiny Modules 4 Inch Waffle Pack Chip Trays ESD Stable Anti Static

Customized high-temperature resistant Waffle Pack for carrying tiny modules

Hiner-pack production IC tray is in line with international environmental standards, through the ROHS and SGS third party inspection, such as raw material of the raw material buying from domestic leading manufacturer, incoming inspection and related technology and strictly control the quality during production, quality department must confirm the product 100% qualified before shipment, are sold to domestic and international famous customers over the years, After the use of positive feedback, rich experience in injection molding industry also provides customers with the most appropriate packaging solutions.

A chip tray is a carrier for bare dies used for the transportation and handling of a small batch of dies. A waffle pack is typically a plastic tray with pockets sized up for a particular die size.

Benefits:

• Able to present non-standard components to the Pick and Place machines.

• Multiple uses for the fixture include component bake-out, storage, and shipping.

• Cost-effective alternative to “tape and reel” or “hand” placement.

1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transferring or loading samples for testing
3. Stable anti-static performance, a good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, with no environmental concerns
7. It can be stackable and can also ensure the design of maximum utilization of the tray matrix

Application:

• Wafer Die / Bar / Chips

• PCBA module component
• Electronic component packaging

• Optical device packaging

Technical Parameters:

HN21016 Technical Data Ref.
Base Information	Material	Color	Matrix QTY	Pocket Size

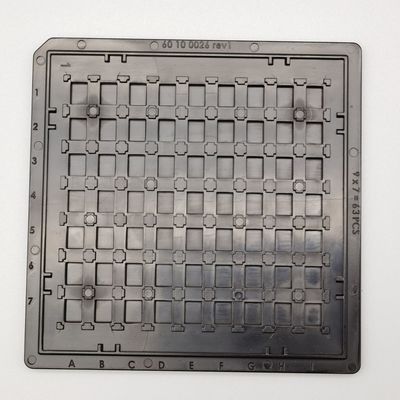

	PC	Black	9*7=63PCS	6.628.290.8mm
Size	Length * Width * Height (according to the customer's requirement)
Feature	Durable; Reusable; Rcofriendly; Biodegradable
Sample	A. The free samples: Chosen from existing products.
	B. Customized samples as per your design/demand
Accessory	Cover/Lid, Clip/Clamp, Tyvek paper
Artowrk Format	PDF,2D,3D

Tiny Modules 4 Inch Waffle Pack Chip Trays ESD Stable Anti Static 0

FAQ:

Q: Can you do OEM and customized design IC trays?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase quantity of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value, and all samples shipping costs are normally is by collected or as agreed.
Q: What kind of Incoterms can you do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method can you use to ship the goods?
A: By sea, by air, or by express, by mail, post, according to customer order quantity and volume.

Tiny Modules 4 Inch Waffle Pack Chip Trays ESD Stable Anti Static 1
