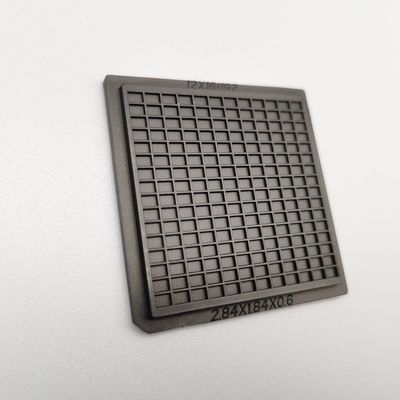

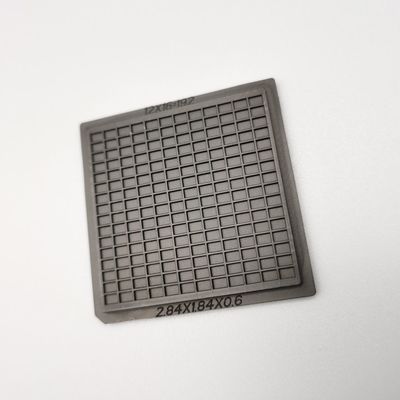

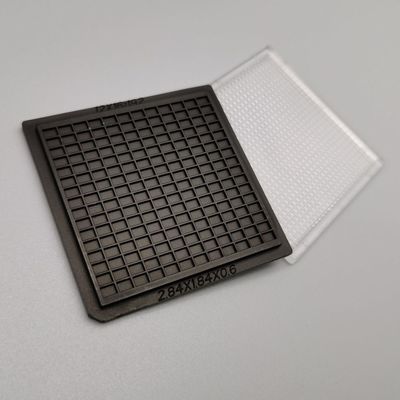

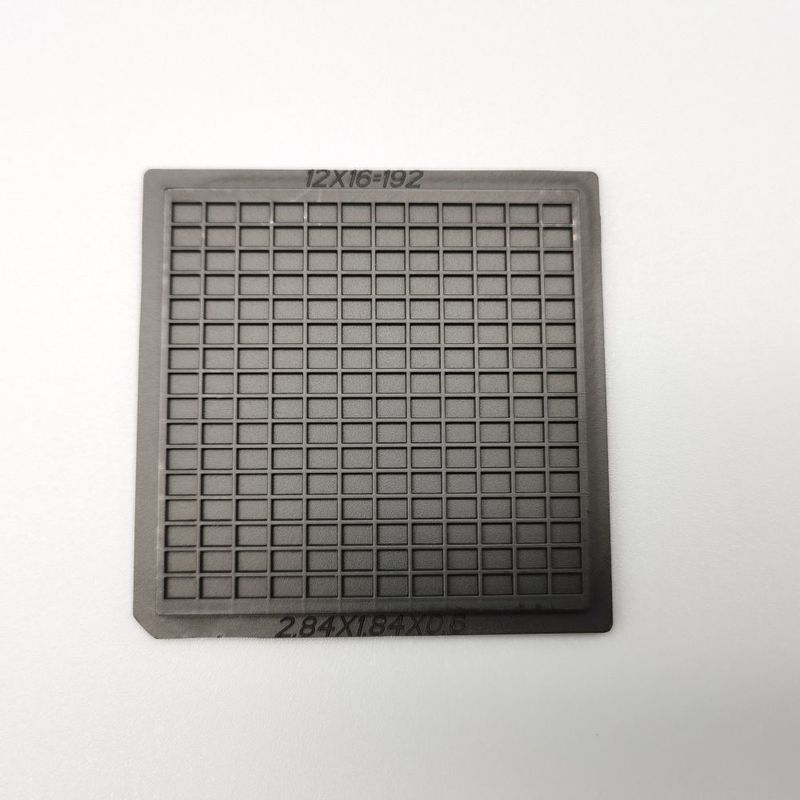

Traditional Black 2 Inch Waffle Pack Chip Trays For Electronic Parts

Brand Name:	Hiner-pack
Model Number:	HN18101
MOQ:	1000 pcs
Price:	$0.35~$0.85(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 4000PCS~5000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

ABS

Color:

Black

Property:

ESD

Design:

Standard

Size:

2-Inch

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW, FOB, CIF, DDU, DDP

Injection Mold:

Lead Time 20~25Days, Mold Life Span: 30~450,000 Times

Molding Method:

Injection Moulding

Packaging Details:

It depends on the QTY of order and size of product

Supply Ability:

The capacity is between 4000PCS~5000PCS/per day

Highlight:

2Inch Waffle Pack Chip Trays

4mm Waffle Pack Chip Trays

2Inch semiconductor tray

Product Description

Traditional Black 2 Inch Waffle Pack Chip Trays For Electronic Parts

Precision-molded cavities designed to match your chip’s footprint—no rattling, shifting, or handling issues.

Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle packs are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component.

Anti-static tray can effectively release the static charge accumulated on the surface of the object, will not produce charge accumulation and high potential difference; It can greatly reduce the damage rate of electronic products in the production process, reduce the cost, and improve the product quality and profit.

Application:

Semiconductor Wafer Die Wafer Bare, Electronic components, optical electronic components, etc.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	50.750.74mm
Model	HN18101	Cavity Size	2.841.840.6mm
Package Type	IC Parts	Matrix QTY	12*16=192PCS
Material	ABS	Flatness	MAX 0.2mm
Color	Black	Service	Accept OEM, ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	RoHS

Usage	Packaging of Electronic Components, Optical device
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO, PPE, ABS, PEI, IDP...etc.
Color	Black, Red, Yellow, Green, White, and custom color
Size	Customized size, rectangle, circle shape
Mold type	Injection Mold
Design	Original sample, or we can create the designs
Packing	By Carton
Sample	Sample time: after the draft is confirmed and payment is arranged
	Sample charge: 1. Free for stock samples 2. Custom Tray negotiated

Lead Time	5-7 Working days
Lead Time	The exact time should be according to the ordered quantity

Traditional Black 2 Inch Waffle Pack Chip Trays For Electronic Parts 0

FAQ:

Q1: Are You a Manufacturer or a Trade Company?

We are a 100% Manufacturer specializing in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.

Q2: What is the material of your product?

ABS, PC, PPE, MPPO, PEI, HIPS...etc.

Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirements.

Q4: How can I get the quotation for the custom products?

Let us know the size of your IC or component thickness, and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the free sample in stock can be sent, but the shipping fee should be paid by you.

Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
We can send them right now if you are interested in something we have in stock, and customize the project depending on the specific time.

Traditional Black 2 Inch Waffle Pack Chip Trays For Electronic Parts 1
