Product Details:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Property: | ESD | Design: | Standard |
| Size: | 2 Inch | Surface Resistance: | 1.0x10E4~1.0x10E11Ω |
| Clean Class: | General And Ultrasonic Cleaning | Molding Method: | Injection Moulding |
| High Light: | Waffle Pack Chip Trays,2 Inch Waffle Pack Chip Trays,Waffle semiconductor tray |
||

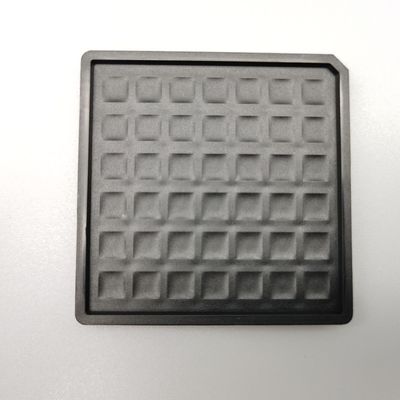

Digital Array Waffle Pack Chip Trays Durable Anti Static For Component
Durable Anti-Static Chip Tray With Digital Array Specially Designed For The Cavity
Why choose custom IC Tray?
Customization means specificity, the unique cavity corresponds to the size and specification of your chip or electronic component, from the long. Each step is designed according to the external size and special parts of the chip or electronic components. The designed tray can be perfectly loaded with the chip or electronic components provided by you to ensure the smooth loading and storage in the process of use.
The Waffle Pack is an ideal tray for storing tiny electronic components because the tray is permanently antistatic. When used, it has good mechanical strength and heat resistance, good impact resistance, strong chemical corrosion resistance, and will not affect the use of its anti-static performance due to the change of environment, time and temperature.
Character Reference
Material: ABS
Thickness: 5mm
Appearance: black
Customized: width and length, thickness as customer request
Conductive: 10e4-10e6 ohms
Anti-static: 1.0*10e4-1.0*10e11 ohms
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||

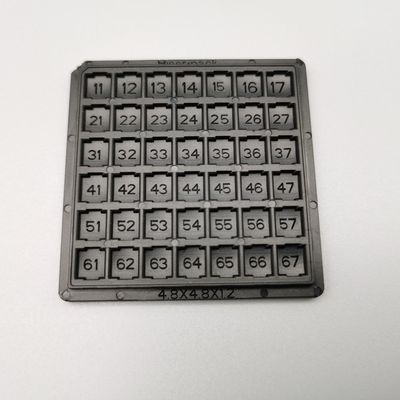

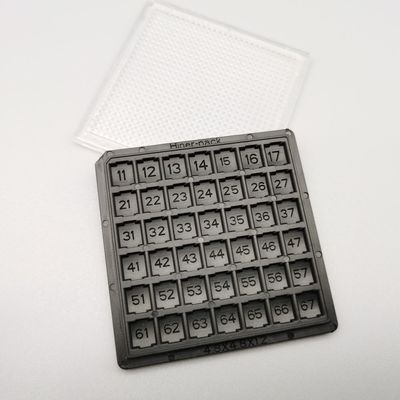

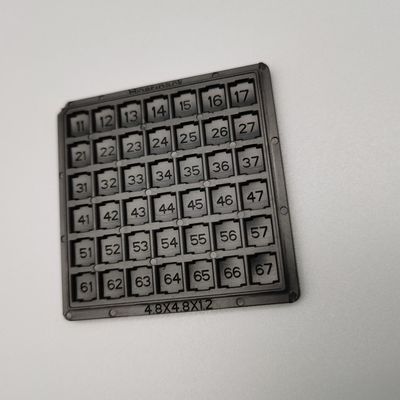

| Outline Line Size | 50*50*5mm | Brand | Hiner-pack |
| Model | HN21039 | Package Type | IC Parts |
| Cavity Size | 4.8X4.8X1.2mm | Matrix QTY | 6*7=42PCS |
| Material | ABS | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packing according to customer's specified size
FAQ
Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
