Product Details:
|
| Material: | ABS | Color: | Gray |
|---|---|---|---|
| Property: | ESD | Design: | Standard |
| Size: | 2 Inch | Surface Resistance: | 1.0x10E4~1.0x10E11Ω |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | Waffle Ic Tray,Waffle Pack Ic Tray,Waffle esd tray |
||

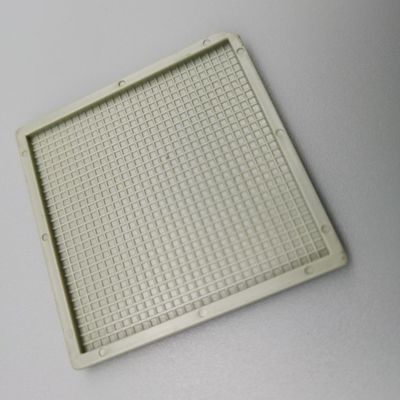

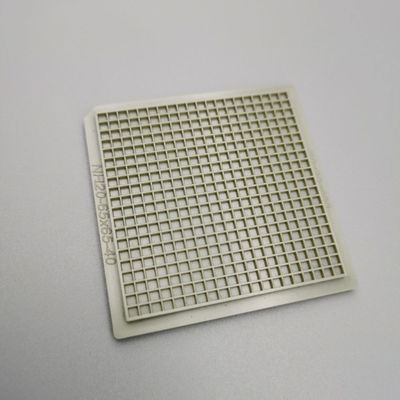

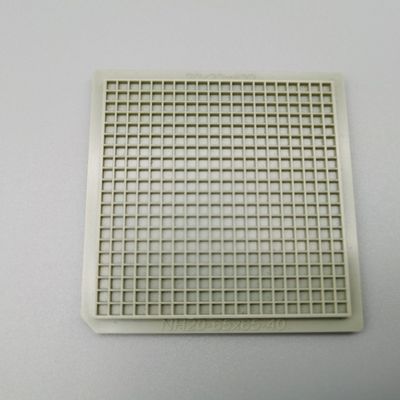

Optoelectronic Component Waffle IC Tray 2 Inch Antistatic ISO Certificate
Durable Antistatic ABS Waffle Pack Can Be Customized For Optoelectronic Components
Anti - static tray is an ideal tool for storing electronic components. Due to the addition of special polymer chains in the raw material, the finished product has permanent electrostatic dissipation properties. The finished product has good mechanical strength and heat resistance; Good impact resistance and chemical corrosion resistance. It will not change its anti-static performance due to the environment, time and temperature.
Anti-static tray can effectively release the static charge accumulated on the surface of the object, so that it will not produce charge accumulation and high potential difference; It can greatly reduce the damage rate of electronic products in the production process, reduce the cost, and improve the product quality and profit.
Detail Information
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
| Outline Line Size | 50*50*4mm | Brand | Hiner-pack |
| Model | HN 65*65*40 | Package Type | IC Parts |
| Cavity Size | 1.65*1.65*1.02mm | Matrix QTY | 20*20=400PCS |
| Material | ABS | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
