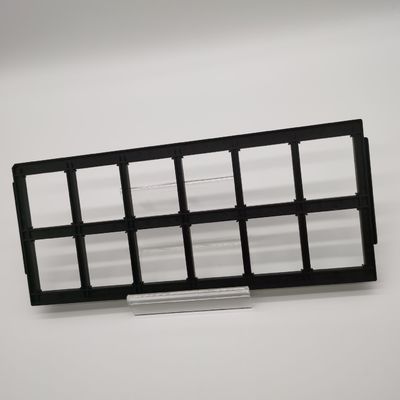

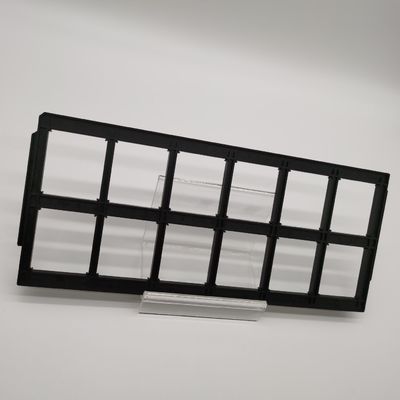

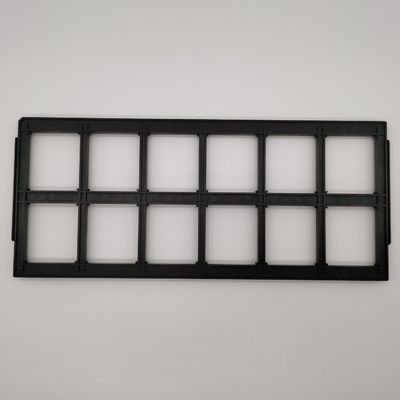

High Temperature Resistance PPO Jedec IC Trays Durable ESD

High Temperature Resistance PPO Jedec IC Trays Durable ESD
High Temperature Resistance PPO Jedec IC Trays Durable ESD High Temperature Resistance PPO Jedec IC Trays Durable ESD High Temperature Resistance PPO Jedec IC Trays Durable ESD High Temperature Resistance PPO Jedec IC Trays Durable ESD

Large Image :  High Temperature Resistance PPO Jedec IC Trays Durable ESD

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN1858
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

High Temperature Resistance PPO Jedec IC Trays Durable ESD

Description
Material: PPO. PPE Color: Black
Temperature: 125°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
High Light:

PPO Jedec IC Trays

,

Waffle Pack Jedec IC Trays

,

ESD waffle pack tray

MPPO Jedec IC Trays Durable ESD Heat Resistant



Durable ESD Black Jedec Trays Are Customized To Hold IC components


Jedec tray is compatible with jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips and avoiding manual picking and chip oxidation.



The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carriing components or IC of the tray, carriing function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, improve work efficiency.



Outline Line Size 322.6*135.9*12.19mm Brand Hiner-pack
Model HN1858 Package Type PCBA
Cavity Size 55*55*8.4mm Matrix QTY 2*4=8PCS
Material PPE Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS





Product Application



Package IC PCBA module component

Electronic component packaging Optical device packaging




Packaging


Packaging Details:Packing according to customer's specified size



Reference to temperature resistance of different materials

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized

High Temperature Resistance PPO Jedec IC Trays Durable ESD 0

FAQ


1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.

3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept
EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
