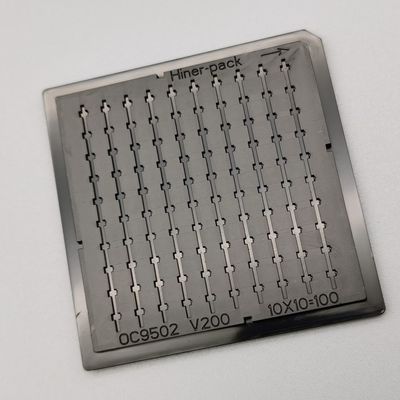

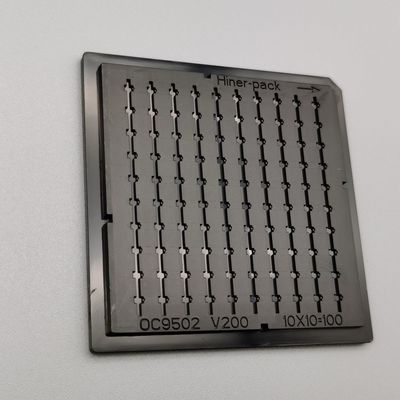

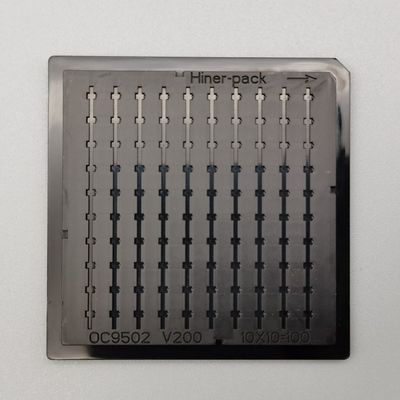

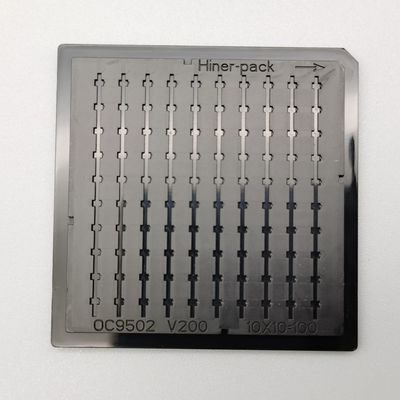

Plastic Anti Static Bare Die Trays

Plastic Anti Static Bare Die Trays
Plastic Anti Static Bare Die Trays Plastic Anti Static Bare Die Trays Plastic Anti Static Bare Die Trays Plastic Anti Static Bare Die Trays

Large Image :  Plastic Anti Static Bare Die Trays

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21008
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: 4000PCS~5000PCS/per day

Plastic Anti Static Bare Die Trays

Material: ABS Color: Black
Property: ESD Design: Standard
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Incoterms: EXW,FOB,CIF,DDU,DDP Molding Method: Injection Moulding
High Light:

SGS Bare Die Trays


Anti Static Bare Die Trays


Anti Static Wafer Chip Tray

Plastic Anti Static Bare Die Trays


Permanent Reusable Plastic Anti-Static Tray Is Used For Loading The Laser Bar



Trays made of industrial plastics as raw materials.It is more expensive than wooden pallets and has a smaller load. However, with the progress of plastic pallet manufacturing technology, some high-load plastic pallets have appeared and are slowly replacing wooden pallets.Main parameters:Length/width/height/Length/width/height error/diagonal error/rated load/maximum number of stacking layers/deflection/surface slip coefficient/temperature range of the pallet environmentCompared with the wooden pallet, plastic pallet has the advantages of light weight, smooth, beautiful, good integrity, no nails, no thorn, tasteless and non-toxic, acid, alkali, corrosion resistance, easy washing and disinfection, no rot, no combustion, no electrostatic spark, recycling, the service life is 5-7 times of the wooden pallet;It is an important tool for modern transportation, packaging and storage.


Antistatic plastic tray can eliminate static electricity, a large number of electronic devices and products in the production process of turnover loading, packaging, storage and transportation. The finished product has good mechanical strength and heat resistance; Good impact resistance and chemical corrosion resistance. It will not change its anti-static performance due to the environment, time and temperature. It is mainly used in the electronic product industry.



1. Light weight, saving transportation and packaging costs;
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the most dozen capacity design, cost saving;
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement




Semiconductor Wafer Die Wafer Bare, Electronic components, optical electronic components, etc


Character Reference


Material: PC

Appearance: black

Customized: width and length, thickness as customer request

Conductive: 10e4-10e6 ohms

Anti-static: 1.0*10e4-1.0*10e11 ohms

HN21008 Technical Data Ref.
Base Information Material Color Matrix QTY Pocket Size
PC Black 10*10=100PCS 1.3*0.86*0.64mm
Size Length * Width * Height (according to customer's requirement)
Feature Durable;Reusable;Rcofriendly;Biodegradable
Sample A. The free samples: choosen from existing products.
B. customized samples as per your design/demand
Accessory Cover/Lid, Clip/Clamp, Tyvek paper
Artowrk Format PDF,2D,3D


Usage Packaging of Electronic Components,Optical device,
Feature ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material MPPO.PPE.ABS.PEI.IDP...etc
Color Black.Red.Yellow.Green.White and custom color
Size Customized size, rectangle,circle shape
Mold type Injection Mold
Design Original sample or we can create the designs
Packing By Carton
Sample Sample time: after draft confirmed and payment arranged
Sample charge: 1. Free for stock samples
2. Custom Tray negotiated
Lead Time 5-7 Working days
The exact time should according to the ordered quantity

Plastic Anti Static Bare Die Trays 0


Q1. Do your products get any certificates?

Yes, CE for EU market, FDA for USA market.

Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.

Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.

Q4. Do you arrange shipment for the products?

It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.

Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.

Plastic Anti Static Bare Die Trays 1
