Product Details:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Property: | ESD | Design: | Standard |
| Size: | 2 Inch | Surface Resistance: | 1.0x10E4~1.0x10E11Ω |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | ESD Thermoformed Plastic Trays,ic Thermoformed Plastic Trays,Wafer ESD Shipping Trays |
||

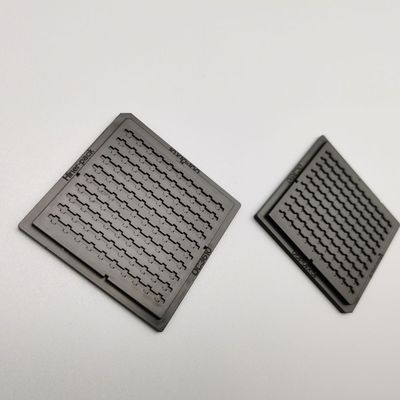

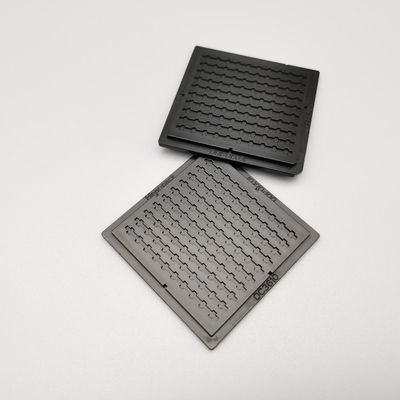

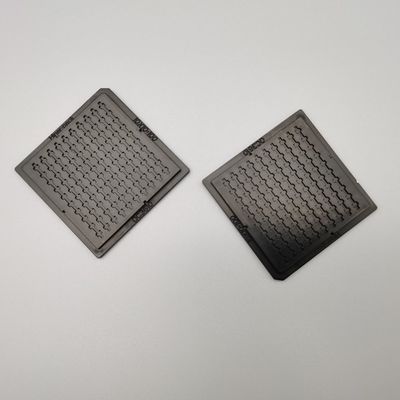

Loading Bare Wafer IC Trays 2 Inch ESD Shipping Trays
Permanent Anti-Static Black Waffle Box For Loading Bare Wafer
Waffle Pack is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded - the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.
Waffle pack has many applications including the packaging of die, die attach preforms and bond pads.
Our Company providing a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing IC but also better protect the chip storage.We have designed a lot of packaging way,We can provide custom service for all packaging methods of chip tray.
Advantages
1. Flexible OEM service: we can produce products according to customer’s sample or design.
2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3. Complicated workmanship: tooling making, Injection molding,Production
4. Comprehensive customer service: from customer consultation to after sales service.
5. 10 years’ex perience of OEM for USA and EU customers. thermoformed plastic trays
6. We have our own factory and can control quality in high level and produce products quickly and flexibly.
| HN2018 Technical Data Ref. | ||||
| Base Information | Material | Color | Matrix QTY | Pocket Size |
| ABS | Black | 10*10=100PCS | 2*1.12*0.5mm | |
| Size | Length * Width * Height (according to customer's requirement) | |||
| Feature | Durable;Reusable;Rcofriendly;Biodegradable | |||
| Sample | A. The free samples: choosen from existing products. | |||
| B. customized samples as per your design/demand | ||||
| Accessory | Cover/Lid, Clip/Clamp, Tyvek paper | |||
| Artowrk Format | PDF,2D,3D | |||
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
