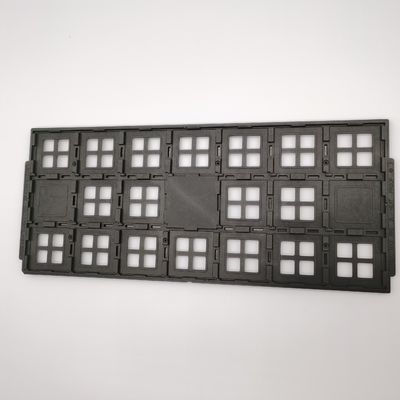

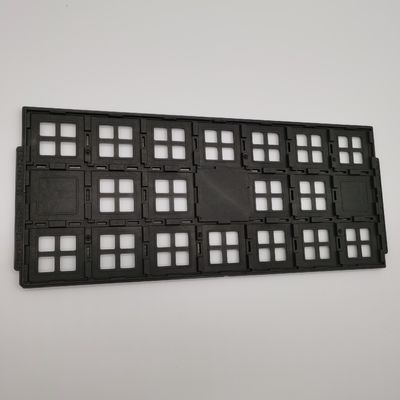

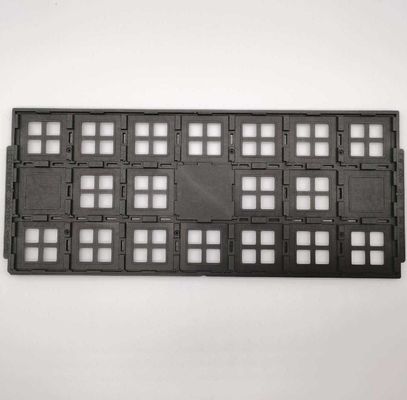

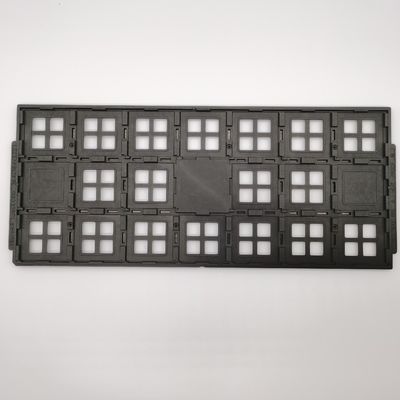

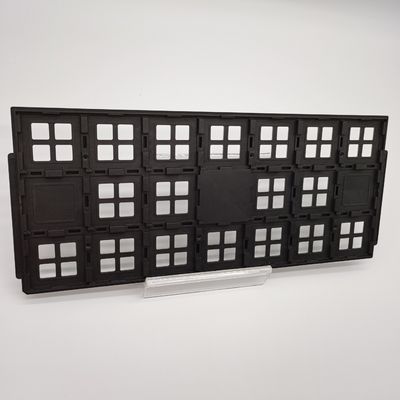

SGS Plastic Black ESD Jedec Matrix Trays For Electronic Products

SGS Plastic Black ESD Jedec Matrix Trays For Electronic Products

Brand Name:	Hiner-pack
Model Number:	HN21029
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

MPPO, PPE, ABS, PEI, IDP, Etc.

Color:

Black, Red, Yellow, Green, White, Etc.

Temperature:

80°C~180°C

Property:

ESD, Non-ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need (Lead Time 25~30Days,Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

SGS Jedec Matrix Trays

ESD Jedec Matrix Trays

SGS Jedec Tray

Product Description

SGS Plastic Black ESD Jedec Matrix Trays For Electronic Products

Protect your investment with trays that meet JEDEC outline standards and resist static discharge, impact, and wear.

Hiner-pack provides a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing ICs but also better protects the chip storage. We have designed a lot of packaging ways, which also include common BGA, FBGA, LGAQFN, QFP, PGA, TQFP, LQFP, SoC, and SiP etc. We can provide custom service for all packaging methods of the chip tray.

Antistatic trays (Or ESD Trays) are among those things that should top your must-have list for ESD control and management.
The trays provide critical protection to sensitive electronic components by preventing ESD damage during shipping, storage, and/or handling.

What is an ESD tray?

ESD Trays are stocked and include anti-static and conductive options. ESD-Safe Trays are used for packaging, shipping, and storage of small electronic parts, circuit boards, PCB, PCBA, & electronic components.

Material Description: ESD Conductive Material; Also can be antistatic or conductive, and can be a normal one.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	135.9322.67.62mm
Model	HN 21029	Cavity Size	38.438.41.7mm
Package Type	IC	Matrix QTY	3*7-1=20PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Temperature	150°C
Resistance	1.0x10e4-1.0x10e11Ω	Service	Accept OEM, ODM

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature, and other special requirements can be customized

SGS Plastic Black ESD Jedec Matrix Trays For Electronic Products 0

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us via Skype / Email / Phone / WhatsApp, in case of any delays.

2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.

3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply: We accept EXW, FOB, CIF, DDU, DDP, etc. You can choose the one that is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply: Our samples through strict testing, and the finished products comply with the international JEDEC standards, to ensure a 100% qualified rate.

SGS Plastic Black ESD Jedec Matrix Trays For Electronic Products 1
