Product Details:
|
| Material: | PPE | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Use: | Transport,Storage,Packing | Hs Code: | 3923900000 |
| High Light: | IC Jedec Matrix Trays,RF Jedec Matrix Trays,Jedec IC Chip Tray |
||
Character Reference
Material: MPPO
Thickness: 7.62,12.19mm
Appearance: black
Customized: width and length, thickness as customer request
Conductive: 10e4-10e6 ohms
Anti-static: 1.0*10e4-1.0*10e11 ohms
Chinese Professional Manufacturer
1. Ten years experience in the ESD tray Field
2. Adequate Supply of products
3. Professional non-standard custom
4. MPPO.PPE.ABS.PEI.IDP...etc material
5. Products follow the Jedec antistatic standard.
7. The tray is permanent unitary antistatic, cut off the headstream of the static threat of the products.
Product Application
Electronic component Semiconductor Embedded System Display technology
Micro and Nano systems Sensor Test and Measurement Techology
Electromechanical equipment and systems Power supply
Reference to temperature resistance of different materials
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Detail Description

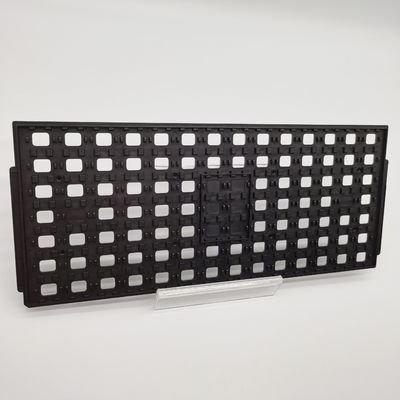

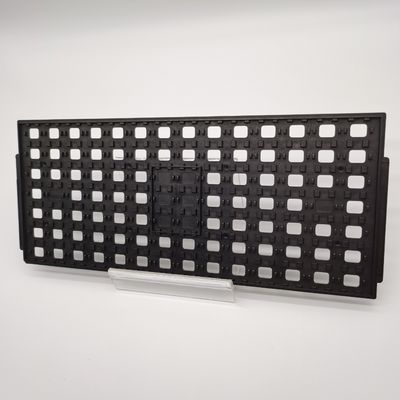

| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN 2047 | Package Type | RF IC |
| Cavity Size | 14.3*13.3*2.85mm | Matrix QTY | 14*7=98PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black | Temperature | 150°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
