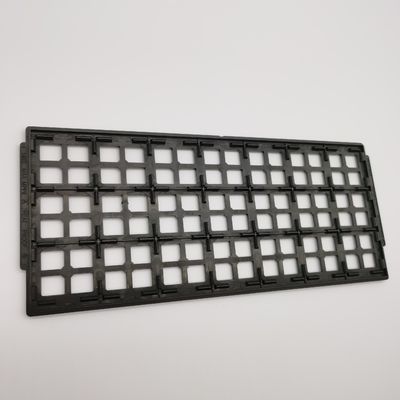

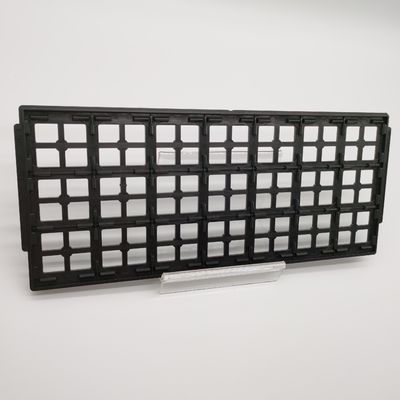

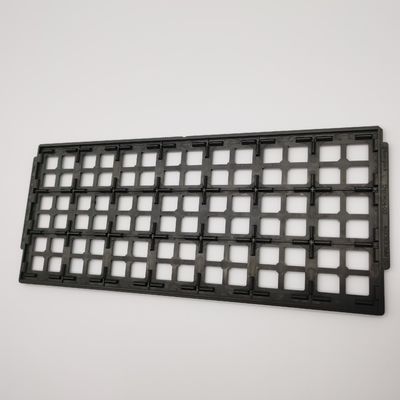

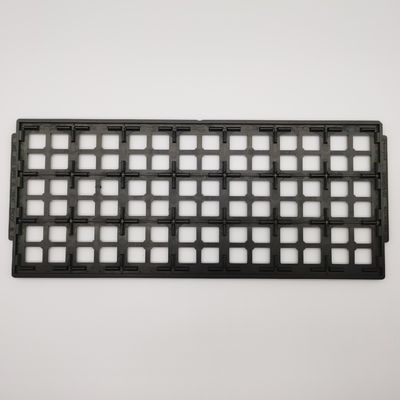

Product Details:
|
| Material: | MPPE | Color: | Black |
|---|---|---|---|
| Temperature: | 140°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Warpage: | Less Than 0.76mm |
| Matrix: | 7*3=21PCS | Use: | Transport,Storage,Packing |
| High Light: | 21PCS Jedec Matrix Trays,PCB Module Jedec Matrix Trays,Jedec pcb trays |
||
BENEFITS
Able to present non-standard components to Pick and Place machines
Multiple uses for fixture including component bake-out, storage and shipping
Cost effective alternative to “tape and reel” or “hand” placement
1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
FEATURES
Custom manufactured to exact specifications
Made to JEDEC standards, if required
Custom lids available for additional handling requirements
ESD safe materials used to protect electrostatically sensitive components
Detail Information
| Usage | Packaging of Electronic Components,Optical device, |
| Feature | ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly |
| Material | MPPO.PPE.ABS.PEI.IDP...etc |
| Color | Black.Red.Yellow.Green.White and custom color |
| Size | Customized size, rectangle,circle shape |
| Mold type | Injection Mold |
| Design | Original sample or we can create the designs |
| Packing | By Carton |
| Sample | Sample time: after draft confirmed and payment arranged |
| Sample charge: 1. Free for stock samples | |
| 2. Custom Tray negotiated | |
| Lead Time | 5-7 Working days |
| The exact time should according to the ordered quantity |
| Outline Line Size | 322.6*135.9*7.62mm |
| Model | HN 1904 |
| Cavity Size | 40*36*3mm |
| Material | PPE |
| Color | Black |
| Resistance | 1.0x10e4-1.0x10e11Ω |
| Brand | Hiner-pack |
| Package Type | PCB Module |
| Matrix QTY | 7*3=21PCS |
| Flatness | MAX 0.76mm |
| Service | Accept OEM,ODM |
| Certificate | ROHS |
FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
