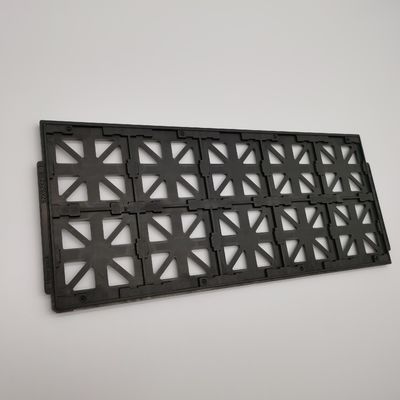

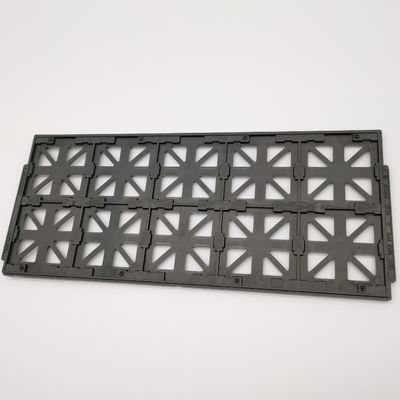

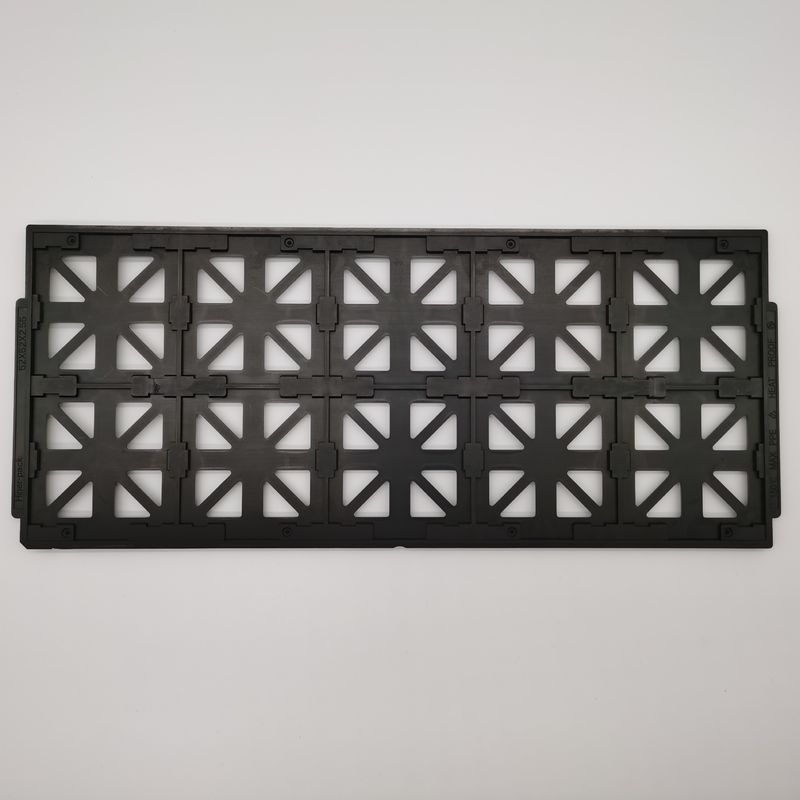

Reused ESD Matrix Trays JEDEC IC Shipping Tray For Optical Device

Reused ESD Matrix Trays JEDEC IC Shipping Tray For Optical Device

Brand Name:	Hiner-pack
Model Number:	HN2020
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

ISO 9001 ROHS SGS

Material:

PPE

Color:

Black

Temperature:

150°C

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW, FOB, CIF, DDU, DDP

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need (Lead Time 25~30Days, Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

Recyled ESD Matrix Trays

ROHS ESD Matrix Trays

Matrix esd packaging trays

Product Description

Reused ESD Matrix Trays JEDEC IC Shipping Tray For Optical Device

Stable Anti-Static Performance, High Temperature ESD Matrix Tray Can Be Recycled

Jedec trays is a standard-defined tray for transporting, handling, and storing complete chips and other components,and the production come in the very same outline dimensions of 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). Trays come in several different profiles.

Jedec tray is compatible with Jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips, and avoiding manual picking and chip oxidation.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.97.62mm
Model	HN 2020	Cavity Size	42.3542.851.73mm
Package Type	LoT Module	Matrix QTY	2*5=10PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM, ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	RoHS

Usage	Packaging of Electronic Components, Optical device
Feature	ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material	MPPO, PPE, ABS, PEI, IDP, etc.
Color	Black, Red, Yellow, Green, White, and custom color
Size	Customized size, rectangle, circle shape
Mold type	Injection Mold
Design	Original sample, or we can create the designs
Packing	By Carton
Sample	Sample time: after the draft is confirmed and payment is arranged
	Sample charge: 1. Free for stock samples 2. Custom tray to be negotiated

Lead Time	5-7 Working days
Lead Time	The exact time should be according to the ordered quantity

Advantages:

1. Small size, light weight, low transportation cost.
2. Each tray can accommodate a large number of chips suitable for transferring or loading samples for testing.
3. Stable anti-static performance, a good protection chip is not hurt by resistance.
4. Very good flatness, easy to operate on automatic equipment.
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods.
6. Recycling plastic material is easy to degrade after waste, with no environmental concerns.

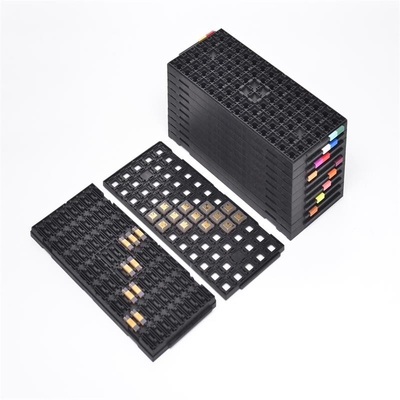

7. It can be stackable and can also ensure the design of maximum utilization of the tray matrix.

FAQ:

Q1: Are you a manufacturer?

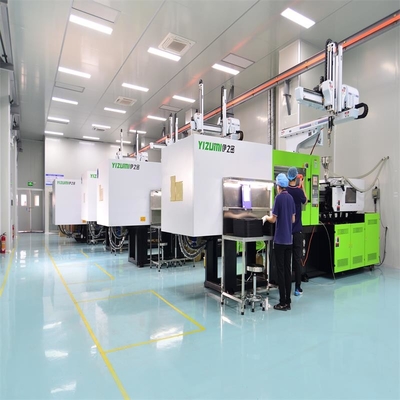

Ans: Yes, we are a 100% manufacturer specialized in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.

Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity, and size normally.
Q3: How long could you prepare samples?
Ans: Normally, 3 days. If customized, open a new mold 25~30 days around.
Q4: How about batch order production?
Ans: Normally, 5- 8 days or so.
Q5: Do you inspect the finished products?
Ans: Yes, we will inspect according to the ISO 9001 standard and be ruled by our QC staff.
Reused ESD Matrix Trays JEDEC IC Shipping Tray For Optical Device 1
