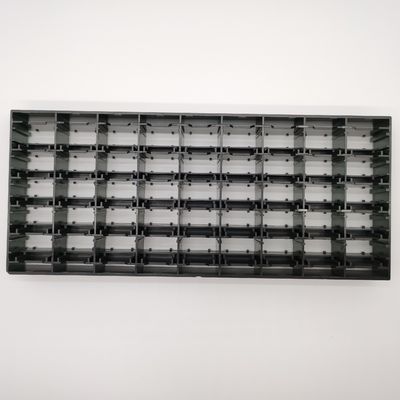

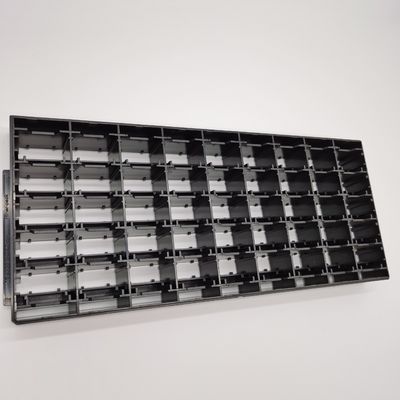

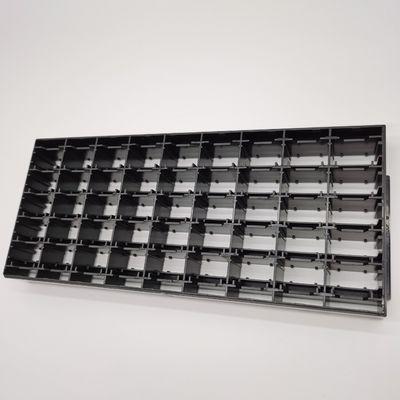

Permanent Antistatic Custom Jedec Trays For Connector Placement

Permanent Antistatic Custom Jedec Trays For Connector Placement
Permanent Antistatic Custom Jedec Trays For Connector Placement Permanent Antistatic Custom Jedec Trays For Connector Placement Permanent Antistatic Custom Jedec Trays For Connector Placement

Large Image :  Permanent Antistatic Custom Jedec Trays For Connector Placement

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN1868
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS(Low this QTY will charge machine-operating and injection fee)
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

Permanent Antistatic Custom Jedec Trays For Connector Placement

Material: MPPO.PPE.ABS.PEI.IDP...etc Color: Black.Red.Yellow.Green.White..etc
Temperature: 80°C~180°C Property: ESD,Non-ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
HS Code: 39239000 Use: Transport,Storage,Packing
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

Antistatic Custom Jedec Trays


PPE Custom Jedec Trays


Antistatic esd tray

Permanent Antistatic Custom Jedec Trays For Connector Placement
Socket PC Permanent Anti-Static JEDEC Tray For Connector Placement

Character Reference


Industrial Use:Electronic
Custom Order:Accept
Place of Origin:Shenzhen, China (Mainland)
Brand Name:Hiner-pack
Model Number:HN1808
Surface resistance:10e4-10e11 ohms
CAD drawing:available
Customized:width, length, thickness as customer request
Offer Designing:Yes


Application of ESD Matrix Tray


1. Packing Material: Instead of the traditional packing material such as corrugated paper, wood board, it can be designed as all kinds of turnover box, mailbox, , partition, gift boxes,display rack,food packing,etc.

2. Electronic component factories

3. SMT Surfacing factories

4. Semiconductor

5. Aerospace industry

6. Military Industry


The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carriing components or IC of the tray, carriing function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, improve work efficiency.


The tray has a 45-degree chamfer to provide the visual indicator of Pin 1 orientation of the IC and prevent the stack of errors, reduce the possibility of workers making mistakes and maximize the protection of the chip.

Outline Line Size 322.6*135.9*30mm Brand Hiner-pack
Model HN1856 Package Type Connector
Cavity Size 16.4X30.5X26.7mm Matrix QTY PCS
Material PC Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS
Usage Packaging of Electronic Components,Optical device,
Feature ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly
Material MPPO.PPE.ABS.PEI.IDP...etc
Color Black.Red.Yellow.Green.White and custom color
Size Customized size, rectangle,circle shape
Mold type Injection Mold
Design Original sample or we can create the designs
Packing By Carton
Sample Sample time: after draft confirmed and payment arranged
Sample charge: 1. Free for stock samples
2. Custom Tray negotiated
Lead Time 5-7 Working days
The exact time should according to the ordered quantity

Permanent Antistatic Custom Jedec Trays For Connector Placement 0


1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.

3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.

Permanent Antistatic Custom Jedec Trays For Connector Placement 1
