Precision High Temperature Anti-Static Custom Jedec Trays For Tiny Electronic Components

Brand Name:	Hiner-pack
Model Number:	HN2092
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

MPPO

Color:

Black

Temperature:

80°C~180°C

Property:

ESD,Non-ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW,FOB,CIF,DDU,DDP

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

Precision Custom Jedec Trays

Anti Static Custom Jedec Trays

ROHS Electronic Components Trays

Product Description

Precision High Temperature Anti-Static Custom Jedec Trays For Tiny Electronic Components

Trusted by leading semiconductor manufacturers, our JEDEC-compliant trays offer consistent performance in automated environments.

Hiner-pack offers the ultimate protection and convenience. We offer a wide variety of JEDEC outline matrix trays to satisfy the most demanding requirements of today's automatic test and handling environments. While JEDEC standards provide compatibility with process equipment, every device and component has its own requirements for tray pocket details.

Jedec trays are a standard-defined tray for transporting, handling, and storing complete chips and other components, and the production comes in the very same outline dimensions of 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). Trays come in a number of different profiles.

Jedec tray is compatible with Jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips, and avoiding manual picking and chip oxidation.

Application:

1. Electronic Component Factories

2. SMT Surfacing Factories

3. Semiconductor Industry

4. Aerospace Industry

5. Military Industry

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.97.62mm
Model	HN2092	Cavity Size	3.63.60.3 mm
Package Type	IC Component	Matrix QTY	23232=1058PCS
Material	MPPO	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM, ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature, and other special requirements can be customized

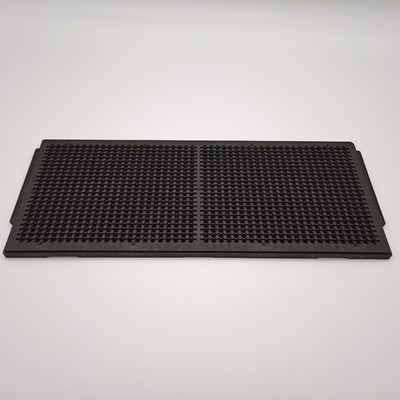

Precision High Temperature Anti-Static Custom Jedec Trays For Tiny Electronic Components 0

FAQ:

Q1. Do your products get any certificates?
Yes, CE for the EU market, FDA for the USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into a perfect fact. It does not matter if you do not have someone to complete the files. Send us high-resolution images, your logo, and text, and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For a standard machine, it would be 5- 7 working days. For non-standard/customized machines according to clients' specific requirements, it would be 20~25 working days.
Q4. Do you arrange shipments for the products?

It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L, and other certificates as required by clients.

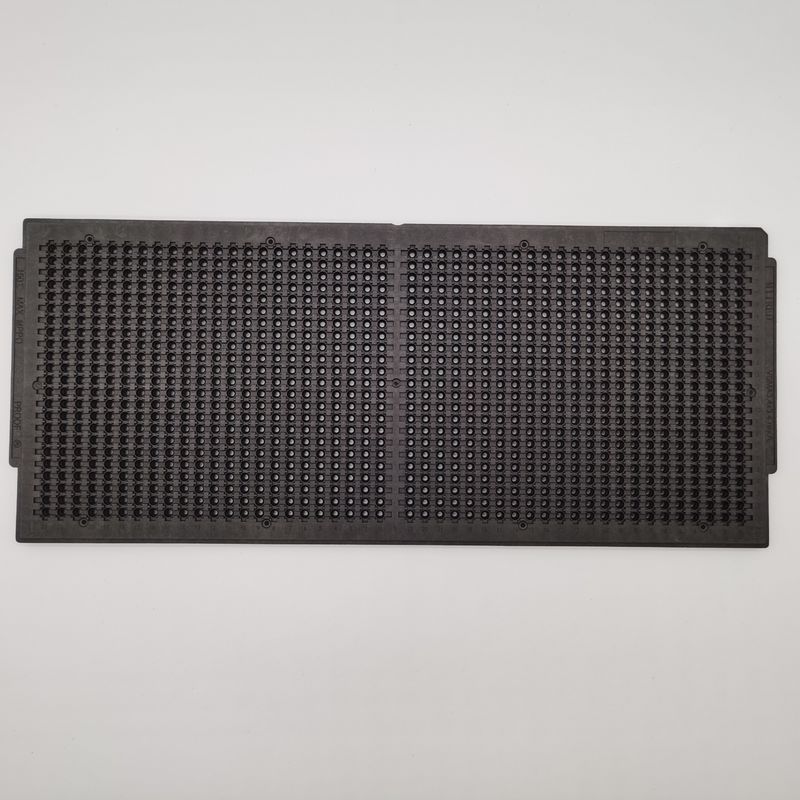

Precision High Temperature Anti-Static Custom Jedec Trays For Tiny Electronic Components 1
