Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 80°C~180°C | Property: | ESD,Non-ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | ODM Jedec Tray,Optical Device Jedec Tray,ODM pcb trays |
||
Character Reference
Industrial Use:Electronic
Feature:Recyclable
Custom Order:Accept
Place of Origin:Shenzhen, China (Mainland)
Brand Name:Hiner-pack
Model Number:HN1808
Surface resistance:10e4-10e11 ohms
Color:Black
Property:Antistatic/ESD
Thickess:7.62mm
CAD drawing:available
Customized:width, length, thickness as customer request
Offer Designing:Yes
Chinese Professional Manufacturer
1. Ten years experience in the ESD tray Field
2. Adequate Supply of products
3. Professional non-standard custom
4. MPPO.PPE.ABS.PEI.IDP...etc material
5. Products follow the Jedec antistatic standard.
7. The tray is permanent unitary antistatic, cut off the headstream of the static threat of the products

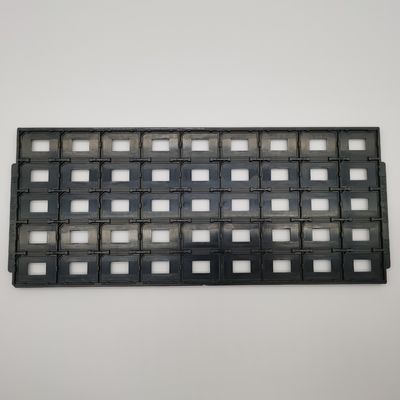

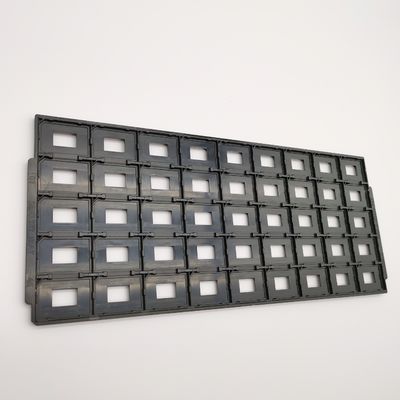

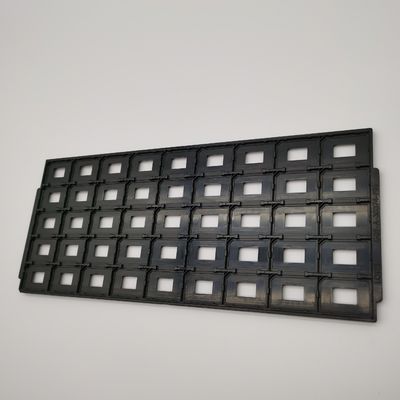

| Outline Line Size | 322.6x135.9x7.32mm | Brand | Hiner-pack |
| Model | HN 1930 | Package Type | IC.Module |
| Cavity Size | 32.6*22.7*2.4mm | Matrix QTY | 5*9=45PCS |
| Material | PC | Flatness | N/A |
| Color | Black | Temperature | 80~180°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
| Usage | Packaging of Electronic Components,Optical device, |
| Feature | ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly |
| Material | MPPO.PPE.ABS.PEI.IDP...etc |
| Color | Black.Red.Yellow.Green.White and custom color |
| Size | Customized size, rectangle,circle shape |
| Mold type | Injection Mold |
| Design | Original sample or we can create the designs |
| Packing | By Carton |
| Sample | Sample time: after draft confirmed and payment arranged |
| Sample charge: 1. Free for stock samples | |
| 2. Custom Tray negotiated | |
| Lead Time | 5-7 Working days |
| The exact time should according to the ordered quantity |
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
