Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 100°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.3mm |
| Clean Class: | General And Ultrasonic Cleaning | Use: | Transport,Storage,Packing |
| High Light: | Antistatic Electronic Component Tray,0.3mm Electronic Component Tray,Antistatic ic tray |
||

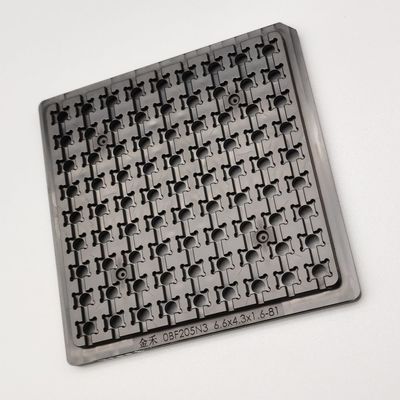

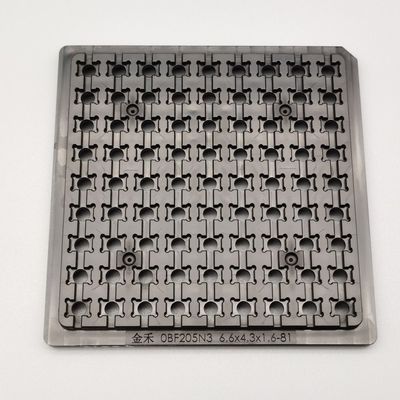

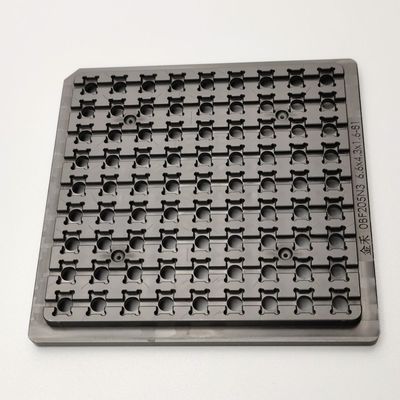

Optical Industry Antistatic Electronic Component Tray 0.3mm Flatness
Antistatic Trays Used For Storage Of Electronic Components In Optical Industry
The anti-static tray is made of special high-temperature resistant plastic by injection molding process, and the resistance value of the material surface is according to international standard.
It also can eliminate product static electricity, a large number of electronic devices and product production process of turnover loading, packaging, storage and transportation. In the industry, it is also known as the conductive electrostatic tray, which is suitable for the storage of precision electronic components. According to the requirements of customers' electronic components, there are different requirements for the size.
The Key Differences Between ESD and Anti-Static.
Anti-static have a coating or chemical additive that dissipates static across its surface so you never build up enough charge to get a shock. ESD is a much more robust solution that delivers greater long-term results because it is actually earthed.
Character Reference
Industrial Use:Electronic
Feature:Recyclable
Custom Order:Accept
Place of Origin:Shenzhen, China (Mainland)
Model Number:HN21003
Surface resistance:1.0*10e4-1.0*10e11 ohms
Color:Black
Property:Antistatic/ESD
CAD drawing:available
Product Application
Electronic component Semiconductor Embedded System Display technology
Micro and Nano systems Sensor Test and Measurement Techology
Electromechanical equipment and systems Power supply
Material Description
ESD Conductive Material
Also can be antistatic or Conductive and can be normal one
| Outline Line Size | 101.55*101.55*8mm |
| Model | HN21003 |
| Cavity Size | 6.6*4.3*1.6mm |
| Material | PC |
| Color | Black |
| Resistance | 1.0x10e4-1.0x10e11Ω |
| Brand | Hiner-pack |
| Package Type | IC Parts |
| Matrix QTY | 9*9=81PCS |
| Flatness | MAX 0.3mm |
| Service | Accept OEM,ODM |
| Certificate | ROHS |
Advantages
1. Light weight, saving transportation and packaging costs;
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the most dozen capacity design, cost saving;
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international standards, to ensure 100% qualified rate.
