Product Details:
|
| Material: | PPE | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Use: | Transport,Storage,Packing | HS Code: | 39239000 |
| High Light: | Antistatic Jedec Matrix Trays,IC Component Jedec Matrix Trays,Jedec component tray |
||
Industrial Use:Electronic
Feature:Recyclable
Custom Order:Accept
Place of Origin:Shenzhen, China (Mainland)
Brand Name:Hiner-pack
Model Number:HN1808
Surface resistance:10e4-10e11 ohms
Color:Black
Property:Antistatic/ESD
Thickess:7.62mm
CAD drawing:available
Customized:width, length, thickness as customer request
Offer Designing:Yes

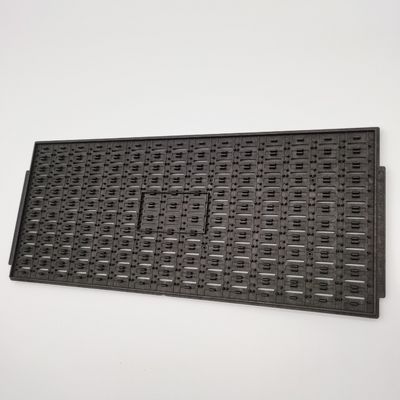

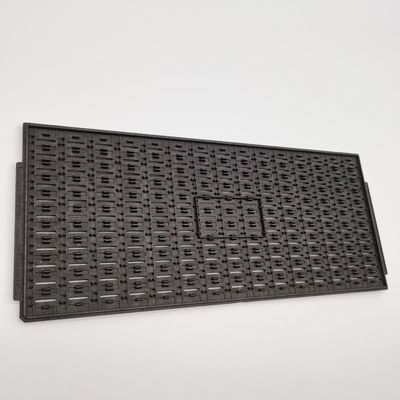

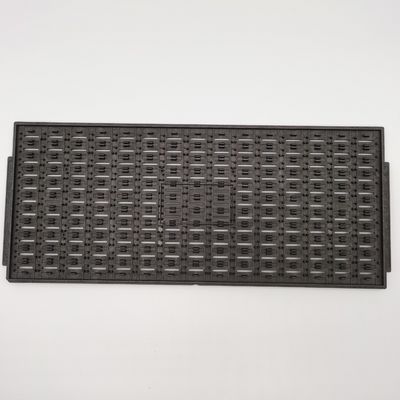

| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN 1808 | Package Type | IC |
| Cavity Size | 15.2*6.0*2.2 mm | Matrix QTY | 11*15=165PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate |
ROHS |
This product can be provided in both green and black colors, and the cost of black is lower than that of color. If you just choose black for ordinary transportation, you can choose colored plates for loading if you need to differentiate the date code and other needs, which can be produced and deployed according to customer requirements.
Product Application
Electronic component Semiconductor Embedded System Display technology
Micro and Nano systems Sensor Test and Measurement Techology
Electromechanical equipment and systems Power supply
Reference to temperature resistance of different materials
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
