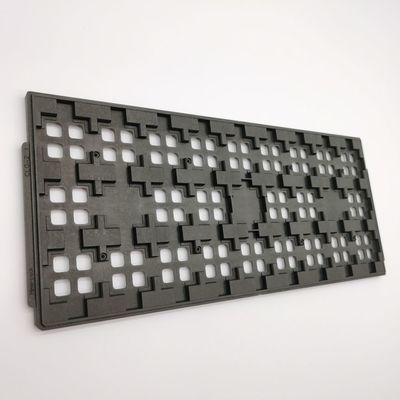

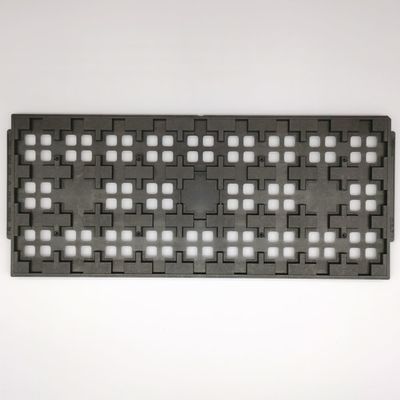

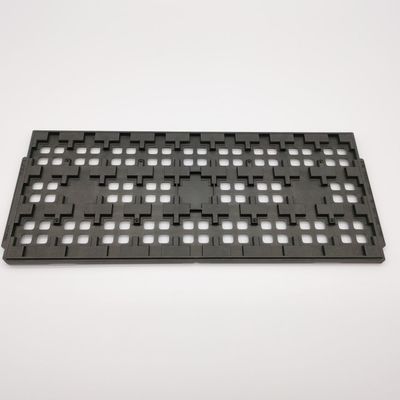

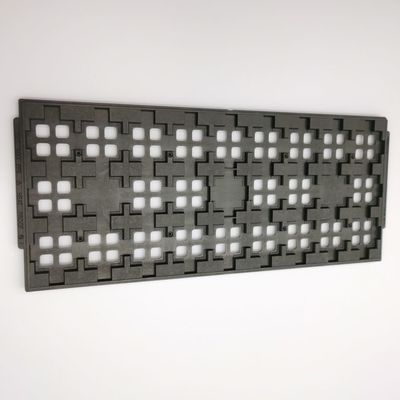

PPE Black ESD Jedec IC Tray High Temperature For LGA Chip Package Type

Brand Name:	Hiner-pack
Model Number:	HN21062
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

PPE

Color:

Black

Temperature:

150°C

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

OEM&ODM:

Mold Type:

Injection

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

ESD Jedec IC Tray

PPE Jedec IC Tray

LGA Jedec IC Tray

Product Description

PPE Black ESD Jedec IC Tray High Temperature For LGA Chip Package Type

High Quality Jedec IC Tray For LGA Chip Package Type

ROHS Customized high temperature tray for LGA chip placement function

Quick Description:

Outline Line Size	322.6135.98.5mm	Brand	Hiner-pack
Model	HN 21062	Package Type	LGA
Cavity Size	28.228.23.35mm	Matrix QTY	3*9=27PCS
Material	PPE	Flatness	MAX 0.76mm
Color	Black	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

In the microelectronics industry, there are standards for handling, loading, transporting and storing integrated circuit IC, modules and other electronic components. This is usually referred to as Jedec standard matrix trays. The Jedec Standard Tray is made from molded plastic particles. The Jedec standard Tray is very strong with minimal warpage control to achieve maximum protection of these components.

All Jedc matrix trays are 12.7*5.35inch(322.6*135.9mm) and are suitable for a variety of chip packages, including BGA.CSP.QFP.QFN... And so on.

Many Jedec tray slots are designed in the middle of the tray to allow automatic equipment to pick up the loaded product.

45-degree chamfer is also easier for equipment to identify and locate, thereby reducing labor costs.

Poduct Application

Package IC PCBA module component

Electronic component packaging Optical device packaging

Packaging Details:Packing according to customer's specified size

Reference to temperature resistance of different materials

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature and other special requirements can be customized

PPE Black ESD Jedec IC Tray High Temperature For LGA Chip Package Type 0

FAQ

1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.

3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
