Product Details:
|
| Material: | PPE | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| High Light: | Anti Static Jedec Tray,PPE Jedec Tray,PPE jedec matrix tray |
||

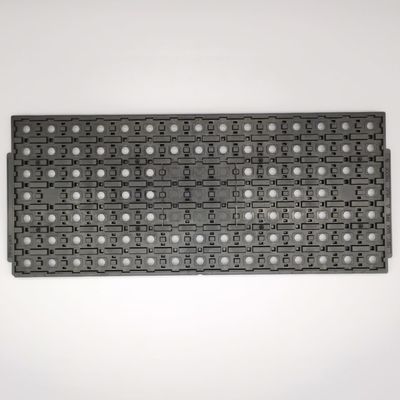

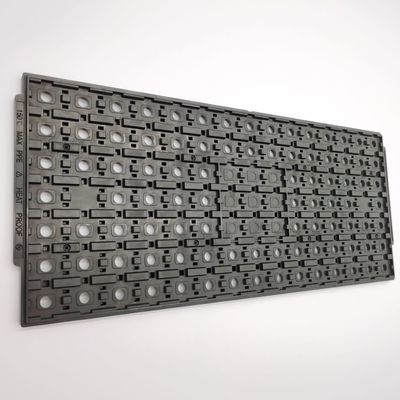

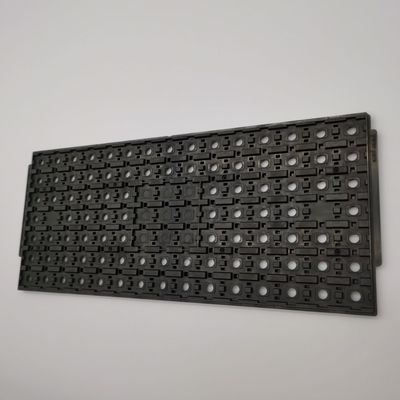

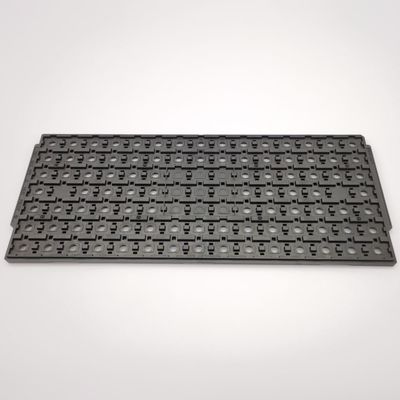

Custom Black Jedec Tray Anti Static Components Matrix Trays
High temperature resistant and antistatic IC Jedec tray
All Jedc matrix trays are 12.7*5.35inch(322.6*135.9mm) and are suitable for a variety of chip packages, including BGA.CSP.QFP.QFN... And so on,Hiner-pack custom IC trays matrix trays. offer the ultimate protection and convenience. We offer a wide variety of JEDEC outline matrix trays to satisfy the most demanding requirements of today's automatic test and handling environments. While JEDEC standards provide compatibility with process equipment, every device and component has its own requirements for tray pocket details.
Jedec tray is compatible with jedec tray feeder, reducing manual handling and loading and other processes, providing a complete automation service for efficient production, realizing automatic picking during assembly, avoiding damage to chips and avoiding manual picking and chip oxidation.
In addition Anti-static tray is an ideal tool for storing electronic components. It is made of special polymer chains added in the raw materials, so it has permanent electrostatic dissipation performance.Anti-static tray has good mechanical strength and heat resistance, good impact strength, strong chemical corrosion resistance, and will not change its anti-static performance due to the environment, time and temperature.
Detail Description:
|
Outline Line Size |
322.6*135.9*7.62mm |
Brand |
Hiner-pack |
|
Model |
HN 21060 |
IC Package Type |
/ |
|
Cavity Size |
15.5*134.2*2.35mm |
Matrix QTY |
15*7=105PCS |
|
Material |
PPE |
Flatness |
MAX 0.76mm |
|
Color |
Black |
Service |
Accept OEM,ODM |
|
Resistance |
1.0x10e4-1.0x10e11Ω |
Certificate |
ROHS |
Product Application
IC, Electronic component, Semiconductor, Micro and Nano systems and Sensor IC etc
Reference to temperature resistance of different materials
|
Material |
Bake Temperature |
Surface Resistance |
|
PPE |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Carbon Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Carbon Powder |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Glass Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
PEI+Carbon Fiber |
Max 180°C |
1.0*10E4Ω~1.0*10E11Ω |
|
IDP Color |
85°C |
1.0*10E6Ω~1.0*10E10Ω |
|
Color, temperature and other special requirements can be customized |
||
Advantage
1. Flexible OEM service: we can produce products according to customer’s sample or design.
2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3. Complicated workmanship: tooling making, Injection molding,Production
4. Comprehensive customer service: from customer consultation to after sales service.
5. 10 years experience of OEM for USA and EU customers.
6. We have our own factory and can control quality in high level and produce products quickly and flexibly.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
Q7: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize
the project depending on the specific time.
