Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 180°C | Property: | ESD |
| Flatness: | Less Than 0.76mm | OEM&ODM: | Logo Or Brand |
| Mold Type: | Injection | Custom: | Non-standard |
| High Light: | Matrix Jedec IC Trays,MPPO Jedec IC Trays,Semiconductor Jedec IC Trays |
||

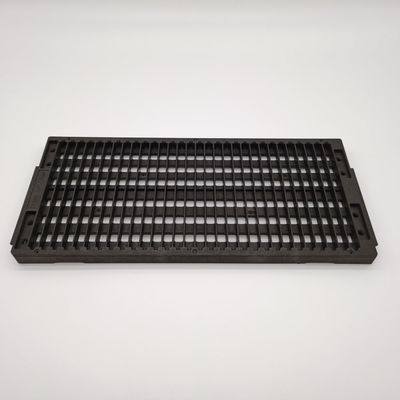

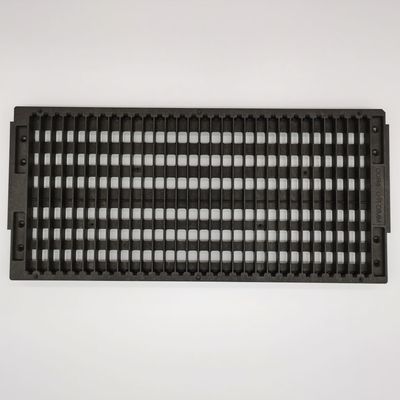

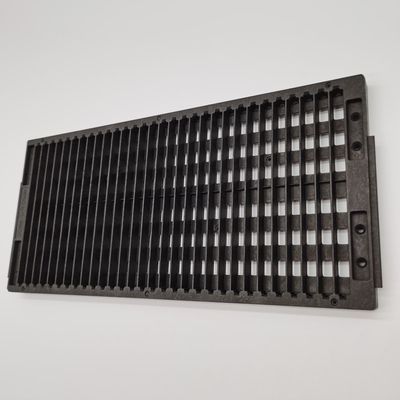

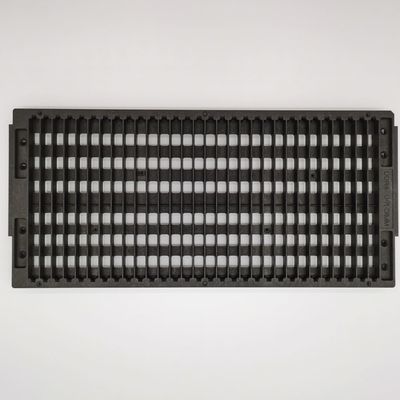

Custom Static Black Matrix Jedec IC Trays MPPO For Semiconductor
Custom Static Jedec IC Trays Matrix Trays
How to choose the right IC tray for your product ?
We offer many JEDEC outline thick and thin matrix trays to handle various QFP, PGA, BGA and other custom devices. If a new tray design is required, we provide expert design services to develop the best tray to meet your needs, and offer several options for tray tooling that range from building a complete new injection mold to making new cavity inserts for an existing mold. Hiner can designs trays for any type of component, module, MEMS, or device, and it need not be in a JEDEC format. Working with application requirements, engineering principles, materials technology, and manufacturing best practices, a custom solution may be the best value for your business.
Hiner-pack production IC tray is in line with international environmental standards,through the ROHS and SGS third party inspection, such as raw material of the raw material buying from domestic leading manufacturer, incoming inspection and related technology and strictly control the quality during production, quality department must confirm the product 100% qualified before shipment, are sold to domestic and international famous customers over the years, After the use of positive feedback, rich experience in injection molding industry also provides customers with the most appropriate packaging solutions.
Detail Description
|
Outline Line Size |
322.6*146.9*14.8mm |
Brand |
Hiner-pack |
|
Model |
HN 21057 |
IC Package Type |
/ |
|
Cavity Size |
133.72*1.55*5.1mm |
Matrix QTY |
30*1=30PCS |
|
Material |
MPPO |
Flatness |
MAX 0.76mm |
|
Color |
Black |
Service |
Accept OEM,ODM |
|
Resistance |
1.0x10e4-1.0x10e11Ω |
Certificate |
ROHS |
Product Application
Semiconductor Wafer Die Wafer Bare, Electronic components, optical electronic components, etc
Reference to temperature resistance of different materials
|
Material |
Bake Temperature |
Surface Resistance |
|
PPE |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Carbon Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Carbon Powder |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
MPPO+Glass Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
|
PEI+Carbon Fiber |
Max 180°C |
1.0*10E4Ω~1.0*10E11Ω |
|
IDP Color |
85°C |
1.0*10E6Ω~1.0*10E10Ω |
|
Color, temperature and other special requirements can be customized |
||
Service
We offer ESD total Solution to Customer, Many other related product available if needed.
OEM is welcomed or design as customer request.
The best & professional sale services.
Honest but competitive price and Quality assured quotation.
100% QC inspection before shipment.
FAQ
Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
