Heat Resistant Waffle Pack Chip Trays Light Weight Corrosion Resistance

Heat Resistant Waffle Pack Chip Trays Light Weight Corrosion Resistance

Brand Name: Hiner-pack
Model Number: HN21058
MOQ: 1000 pcs
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: 4500~5000PCS/per day
Detail Information
Place of Origin:
CHINA
Certification:
ROHS ISO
Material:
MPPO
Temperature:
150°C
Flatness:
0.3mm
Color:
Black
Matrix QTY:
7x10=70PCS
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Clean Class:
General And Ultrasonic Cleaning
Incoterms:
EXW,FOB,CIF,DDU,DDP
Packaging Details:
It depends on the QTY of order(500PCS/20KG/50*40*30CM)
Supply Ability:
4500~5000PCS/per day
Highlight:

Waffle Pack Chip Trays

,

ROHS Waffle Pack Chip Trays

,

wafer waffle pack

Product Description

Heat Resistant Waffle Pack Chip Trays Light Weight Corrosion Resistance



Custom Made Special Heat Resistant Waffle Pack

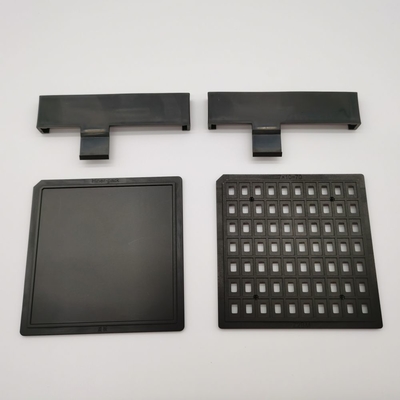

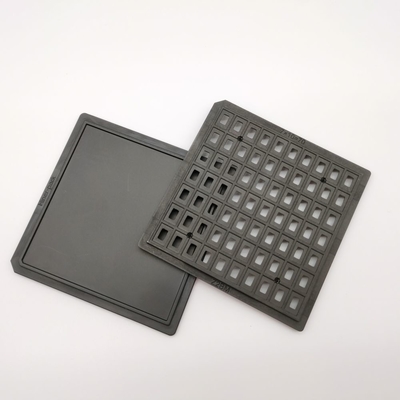

Waffle pack packaging needs to match the cover and clamps together for the best effect, can effectively fix the product placement position, even if there is shaking in the transportation can still stabilize the product is not affected by any, widely used in the packaging of wafer particles after cutting and small size electronic components.



It also can eliminate product static electricity, a large number of electronic devices and product production process of turnover loading, packaging, storage and transportation. In the industry, it is also known as the conductive electrostatic tray, which is suitable for the storage of precision electronic components. According to the requirements of customers' electronic components, there are different requirements for the size.
Anti - static tray is an ideal tool for storing electronic components. Due to the addition of special polymer chains in the raw material, the finished product has permanent electrostatic dissipation properties. The finished product has good mechanical strength and heat resistance; Good impact resistance and chemical corrosion resistance. It will not change its anti-static performance due to the environment, time and temperature.



Product Feature



1. Light weight, saving transportation and packaging costs;
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the maximum capacity design, cost saving;
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement

Outline Line Size 101.4*101.4*5.5mm Brand Hiner-pack
Model HN21058 Package Type IC

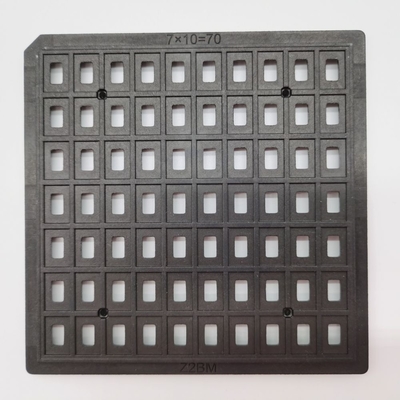

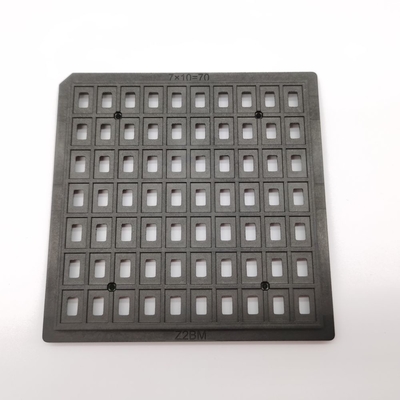

Cavity Size 7.3*11*0.65mm Matrix QTY 10*7=70PCS
Material MPPO Flatness MAX 0.3mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS





Product Application



Electronic component        Semiconductor Embedded System       Display technology

Micro and Nano systems   Sensor Test and Measurement Techology
Electromechanical equipment and systems     Power supply

Heat Resistant Waffle Pack Chip Trays Light Weight Corrosion Resistance 0

FAQ

Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.

Heat Resistant Waffle Pack Chip Trays Light Weight Corrosion Resistance 1



For more information, please contact our sales department



Hiner-Pack 4 Inch Waffle Pack Catalogue.pdf
