Product Details:
|
| Material: | MPPO | Color: | Black,White,Green |
|---|---|---|---|
| Temperature: | 150°C | Surface Resistance: | 1.0x10E4~1.0x10E11Ω |
| Warpage: | Less Than 0.76mm | Use: | Transport,Storage,Packing |
| High Light: | MPPO Jedec Matrix Tray,Temperature Resistant Jedec Matrix Tray,PCBA Jedec Matrix Trays |
||
ESD Temperature Resistant Jedec Matrix Tray For Precision Modules PCBA
Hiner-pack custom IC trays matrix trays. offer the ultimate protection and convenience. We offer a wide variety of JEDEC outline matrix trays to satisfy the most demanding requirements of today's automatic test and handling environments. While JEDEC standards provide compatibility with process equipment, every device and component has its own requirements for tray pocket details.
At the same time our company also has all kinds of mold development ability.The size of the product can be arbitrarily selected, so as to maximize customer size requirements. We are committed to optimizing the quality, transportation and service of the industry to bring you great value and unparalleled reliability.
When designing a tray for a rectangular package,the longest dimension of the package is oriented parallel to the longest length of the tray to maximize tray pocket density.

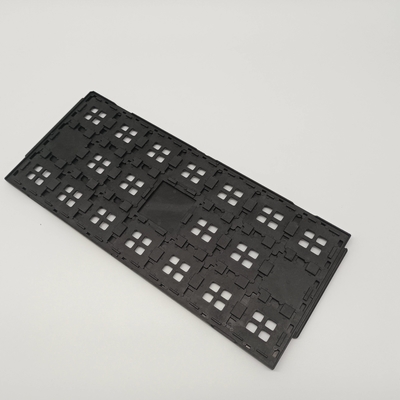

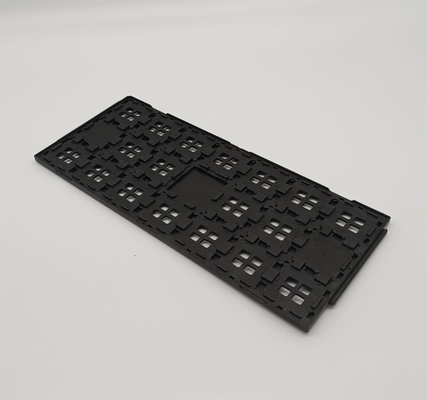

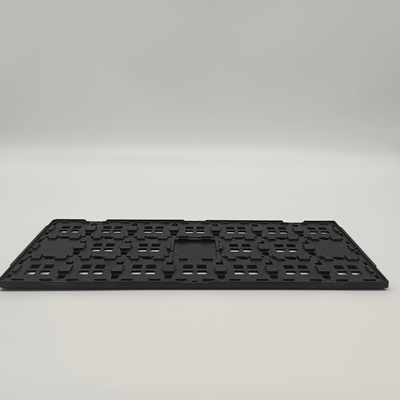

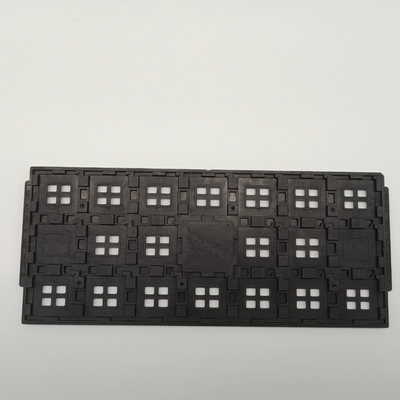

Details about HN21081 Jedec Matrix Tray
The materials of the HN21081 Jedec matrix tray have excellent temperature and can eliminate static electricity. The products are clean and there is no dust and other pollution, which has a good protective effect on environmental protection and customer products. The company is equipped with a professional technical team, the top production technology to ensure that the isolation line, parallelism and consistency are less than 0.76mm.
| Outline Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN21081 | Package Type | N/A |
| Cavity Size | 34.2*34.2*3.25mm | Matrix QTY | 3*7-1=20PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black(can be customized) | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
The Application of Jedec matrix tray IC Shipping Trays
Semiconductor Chip Packing PCBA Module Component
Electronic Chip Packaging Biological Chip Packaging
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C |
| PEI+Carbon Fiber | Max 180°C |
| IDP Color | 85°C |
| Color, temperature and other special requirements can be customized | |
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
Our Advantages Of Hiner-Pack Matrix Tray Standard Jedec tray
1. Flexible OEM service: we can produce products according to customer’s sample or design.
2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.
3. Complicated workmanship: tooling making, Injection molding,Production
4. Comprehensive customer service: from customer consultation to after sales service.
5. 10 years’ experience of OEM for USA and EU customers.
6. We have our own factory and The factory has iso9001.ROHS,SGS and other certificates.
7.Short lead time, generally available in stock.
FAQ
Q1. Are you manufacturer or trade company?
A: We have our own factory and specialize in plastic packaging for more than 10 years.
Q2. How can I get the samples?
A: If you need some samples to test, we can make as per your request free of charge, but your company will have to pay for the freight.
Q3. How to place an order?
A: Firstly, please provide the Material, Thickness, Shape, Size, Quantity to confirm the price. We accept trail orders and small orders.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5. How about your delivery time?
A: Generally, it will take 7-10 working days after confirm the sample. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q7. What is your sample policy?
A: We can supply the sample if we have similar products in stock, if no similar products, customers shall pay the tooling cost and the courier cost, the tooling cost can be returned according to the specific order.
