Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Experience: | 9 Years |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| High Light: | ISO 9001 Matrix Tray,MPPO Material Matrix Tray,BGA Jedec IC Trays |
||

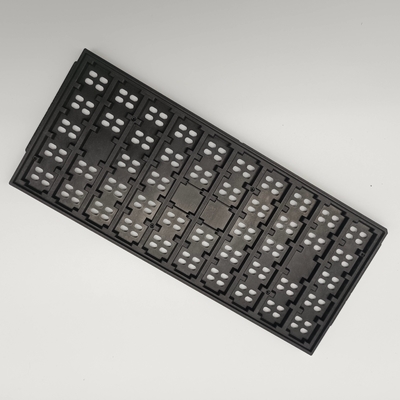

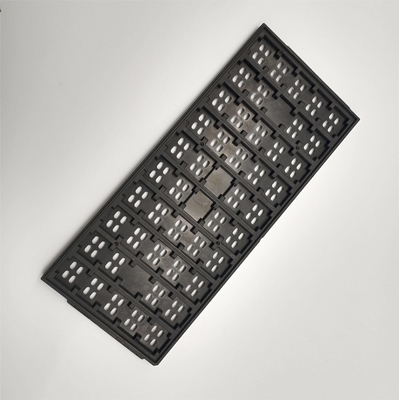

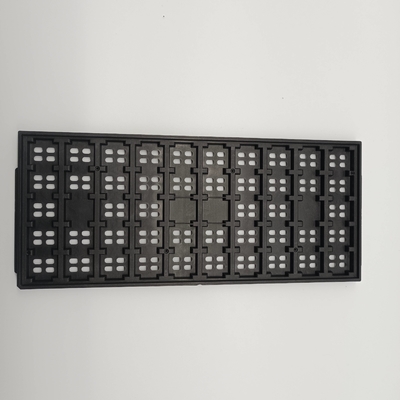

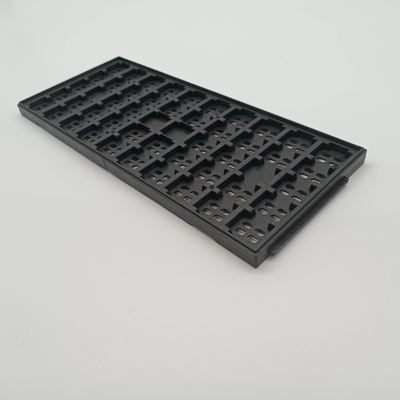

JEDEC Outline BGA Matrix Tray With Standard Pocket Design
Electrostatic discharge (ESD) even a small spark is strong enough to kill electronic components on the spot and can cause serious production accidents.This leaves the product that customers depend on you to protect unusable. Our ESD matrix tray provide critical protection and simplify the processes of manufacturing, transportation and storage. The ESD component tray must provide two types of protection. First, the tray should prevent electrostatic discharge into the tray or general area of the parts.They do this by isolating static charge from surrounding objects, people, and even the flow of air. One of the most important steps is to prevent static electricity by sliding the tray across the device or surface.
Second, sometimes components are placed in trays that still carry the charge left over from the testing process. If the tray conducts too much electricity, a short circuit will allow a rapid discharge, damaging the component. Packaging that is too conductive can be just as bad as non-conductive packaging, which is why metal tray are bad. While you say you want ESD conductive packaging, But what you really want is a tray that dissipates static or is anti-static. This is a subtle but important difference.
Details About HN21078 Jedec Matrix Tray
The trays are available for many BGA package sizes and are available in various Temperature Range materials including ESD-safe Materials.Our BGA trays offer a unique mix of protection and flexibility for your automated environment.
| Material | MPPO |
| Color | Black |
| Size | 24.3*18.3*6.1mm(332.6*135.9*13.8mm) |
| Sample time | 7-8 Days |
| ESD | Yes |
| Logo | According Custom Logo |
| Payment | T/T |
| MOQ | 100 pcs |
| Feature | Durable, colorful, convenient, recyclable, environmental friendly, waterproof |
| Packing | Export carton |
| Shipping port | Hong kong/Shen Zhen |
| Custom requirements | Help design your plastic packaging product or part. |
| OEM Manufacturing welcome, Any shape, size, color are available according to your choice. | |
| In-time Service: You will get our feedback within 24 hours after send inquires, and we will provide solutions within 15 hours for after-sale service. |
Reference to temperature resistance of different materials with Jedec Tray
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
3.FAQ
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans: Normally 3 days. If customized one, open new mold 25~30days around.
Q4: How about batch order production?
Ans: Normally 5-8days or so.
Q5: Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
