Hiner Pack Standard Colorfully JEDEC IC Trays For Micro Components

Hiner Pack Standard Colorfully JEDEC IC Trays For Micro Components

Brand Name: Hiner-pack
Model Number: HN22018
MOQ: 1000 pcs
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day
Detail Information
Place of Origin:
Made In China
Certification:
ISO 9001 RoHS SGS
Material:
MPPO
Color:
Blue
Temperature:
150°C
Property:
ESD
Flatness:
Less Than 0.76mm
OEM&ODM:
Logo Or Brand
Mold Type:
Injection
Custom:
Non-standard
Packaging Details:
60~80pcs/per carton, Weight about 12~16kg/per carton
Supply Ability:
The capacity is between 2500PCS~3000PCS/per day
Highlight:

ODM JEDEC IC Trays

,

JEDEC IC Trays MPPO

,

Micro IC Components JEDEC Matrix Tray

Product Description

Hiner-Pack Standard Colorfully JEDEC IC Tray For Hold Micro IC Components

Fully compliant with JEDEC standards, yet flexible enough to support non-standard cavity sizes—just send us your mind.


JEDEC Solid State Technology Association is the leading standards body for the microelectronics industry. JEDEC was founded in 1958 as part of the Electronics Industry Association (EIA) to set standards for the emerging semiconductor industry. In 1999, JEDEC became an independent association and changed its name to JEDEC Solid State Technology Association.


JEDEC trays are a standard-defined tray for transporting, handling, and storing complete chips and other components, and the production comes in the very same outline dimensions of 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). Trays come in a number of different profiles.


In the microelectronics industry, JEDEC IC trays are typically made of molded plastic pellets.

This ensures that the JEDEC standard tray is very robust, with minimal warping control for maximum protection of these compone.


Many JEDEC Matrix tray slots are designed in the middle of the tray to allow automatic equipment to pick up the loaded product.

The 45-degree chamfer is also easier for equipment to identify and locate, thereby reducing labor costs.

Application:

1. Semiconductor
2. Electronic Component Factories
3. SMT Factories
4. Optical Industry
5. Military Industry

Technical Parameters:

Brand Hiner-pack Outline Line Size 322.6*135.9*7.62mm
Model HN22018 Cavity Size 5.35*4.55*1.28mm
Package Type N/A Matrix QTY 38*18=684PCS
Material MPPO Flatness MAX 0.76mm
Color Blue Service Accept OEM, ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate RoHS SGS


Size Can be customized
Item Material ABS / PC / MPPO / PPE... acceptable
OEM&ODM YES
Item Color Can be customized
Feature Durable; Reusable; Rcofriendly; Biodegradable
Sample A. The free samples: chosen from existing products.
B. customized samples as per your design/demand
MOQ 500pcs.
Packing Carton or as per the customer's request
Delivery time Usually 8-10 working days, depending on order quantity
Terms of Payment Products: 100% prepayment
Mold: 50% T/T deposit, 50% balance after sample confirmation

Service:

1. We offer an ESD total Solution to customers. Many other related products are available if needed.
2. OEM is welcomed or designed according to customer request.
3. The best & professional sales services.
4. Honest but competitive price and Quality assured quotation.
5. 100% QC inspection before shipment.

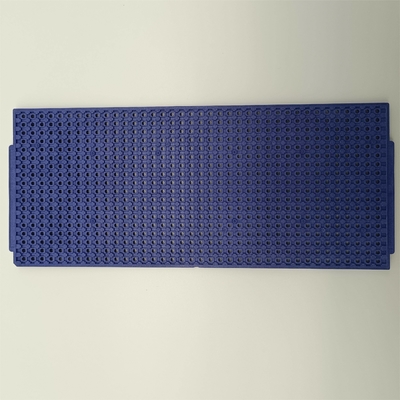

Hiner Pack Standard Colorfully JEDEC IC Trays For Micro Components 0

FAQ:

Q1: Are you a manufacturer?

Yes, we are a 100% manufacturer specialized in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.

Q2: What information should we supply if we want a quotation?

Drawing of your IC or component, Quantity, and size are normally.

Q3: How long could you prepare samples?

Normally, 3 days. If customized, open a new mold 25~30 days around.

Q4: How about batch order production?

Normally, 5-8 days or so.

Q5: Do you inspect the finished products?

Yes, we will inspect according to the ISO and RoHS standards and be ruled by our QC staff.

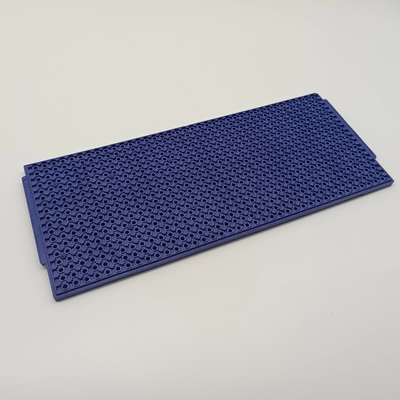

Hiner Pack Standard Colorfully JEDEC IC Trays For Micro Components 1
