Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 80°C | Property: | Non-ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | JEDEC Standard Matrix Tray,IC Packaging JEDEC Standard Matrix Tray,Non ESD Jedec IC Trays |
||
JEDEC tray is the packaging tray used by the enterprise for its chip packaging test. Because the IC chip is small and thin, the enterprise will generally take external protection to avoid scratches and damage.
JEDEC Matrix Tray which is a satisfactory storage of electronic components chip tray is used by semiconductor sealing test enterprises for their chip packaging test. The bottom surface of the tray is flush and are made of mixed material. This mixed material gives the material excellent heat resistance, strength, flame retardant and other properties. The base of the tray is set with fine tight mesh slots. It not only effectively prevent the damage to the product caused by vibration, but also has anti-static, pollution-free, anti-corrosion characteristics.

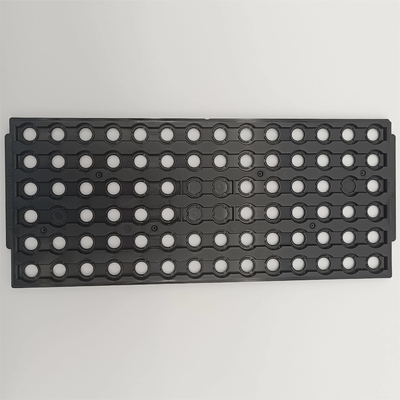

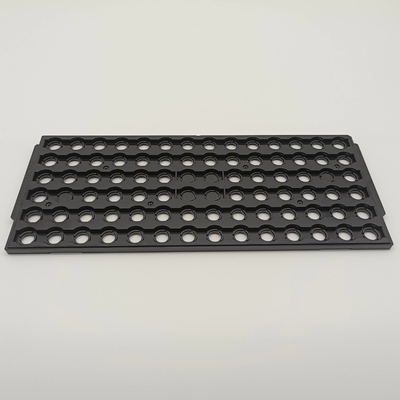

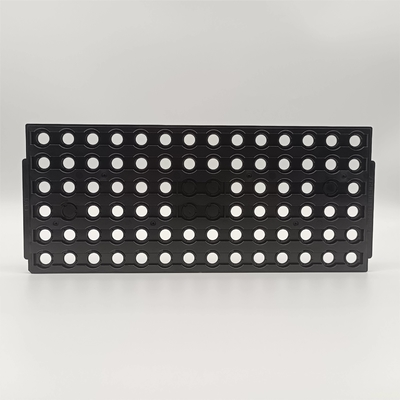

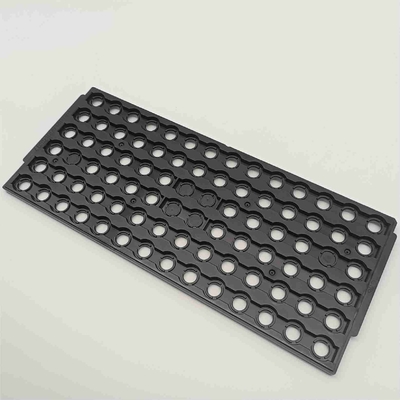

1.Details about The HN21085 Black Plastic JEDEC Matrix Tray
The materials of the HN21085 JEDEC matrix tray has good stability and meets RoHS environmental standards, which has a good protection effect on the environment and customer products. Our company has a professional technical research and development team, which ensures that the isolation line, parallelism and consistency are less than 0.76mm. The surface of the product will not produce any spots, defects and cracks.
| Outline Size | 322.6*135.9*7.62 | Brand | Hiner-pack |
| Model | HN21085 | Package Type | N/A |
| Cavity Size | ∅33*2.93 | Matrix QTY | 14*6=84PCS |
| Material | PC | Thickness | MAX 0.76mm |
| Color | Black(can be customized) | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
2.The Application of The HN21085 JEDEC Matrix Tray
Electronic component factories SMT Surfacing factories
Optical industry Military Industry
3.Reference to temperature resistance of different materials
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C |
| PEI+Carbon Fiber | Max 180°C |
| IDP Color | 85°C |
| Color, temperature and other special requirements can be customized | |
| Material | Bake Temperature |
| PPE | Bake 125°C~Max 150°C |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C |
4.FAQ
Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
Q4: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize.The project depending on the specific time.
