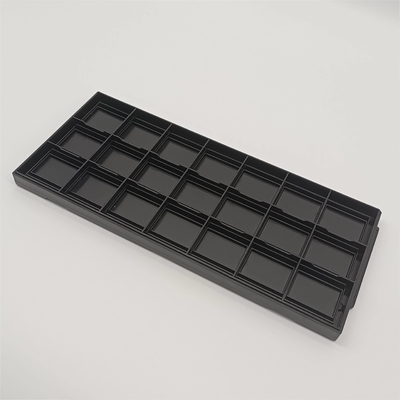

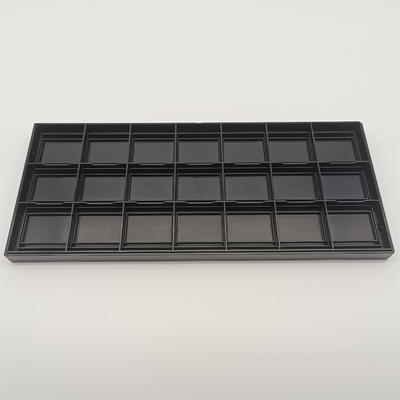

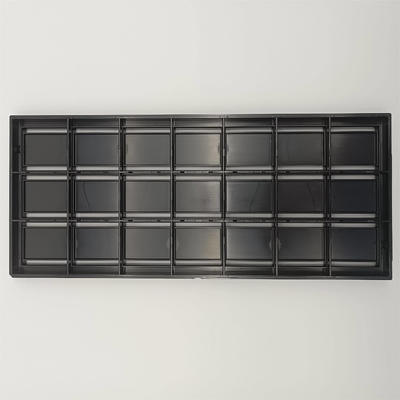

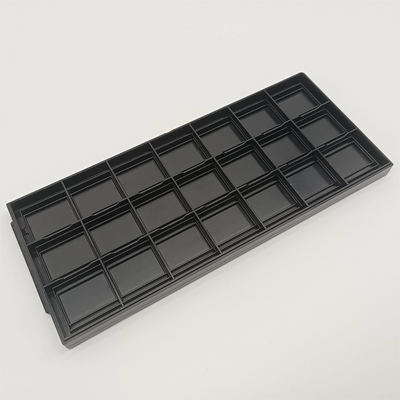

ROHS Customized Electronic Component Tray Matrix Plastic

ROHS Customized Electronic Component Tray Matrix Plastic
ROHS Customized Electronic Component Tray Matrix Plastic ROHS Customized Electronic Component Tray Matrix Plastic ROHS Customized Electronic Component Tray Matrix Plastic ROHS Customized Electronic Component Tray Matrix Plastic

Large Image :  ROHS Customized Electronic Component Tray Matrix Plastic

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21096
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS(Low this QTY will charge machine-operating and injection fee)
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

ROHS Customized Electronic Component Tray Matrix Plastic

Material: PC Color: Black.Red.Yellow.Green.White..etc
Temperature: 80°C~180°C Property: ESD,Non-ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
HS Code: 39239000 Use: Transport,Storage,Packing
High Light:

RoHS Electronic Component Tray


Matrix Electronic Component Tray


Plastic Custom Jedec Trays

ROHS Customized Matrix Plastic Tray for Electronic Component 21PCS

This customized tray is specificity, which means the unique cavity corresponds to the size and specification of your chip or electronic component. Our professional technical team from the length, width, height, slope and other aspects to customize the tray you want to pack. Each step is design according to the size of the chip , electronic components or special parts. The designed tray can be fully loaded with chips or electronic components you want to pack, ensuring smooth loading and storage in the process of use.


1.Details about the HN21096 RoHS Customized Matrix Plastic Tray


The HN21096 customized molded tray will develop a custom pocket design to handle and protect your sensitive and micro devices.

Trays are then CNC machined to the specific configuration for your part.The mainly raw material of this tray is PC, which is light in weight.


Our company has skillful and well-trained team in the field of Semiconductor packaging design to work out customer's requirements,for instance,different temperature,color,ESD property and cleanliness class etc. Experienced product structure engineering team can design various of IC chip,wafer,precision components packaging methods and specifications and other special demands to fit you well.


Outline Line Size 322.6*135.9*17mm Brand Hiner-pack
Model HN21096 Package Type Die
Cavity Size 39*35*5 Matrix QTY 3*7=21PCS
Material PC Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


2.Product Application


Electronic Component                           Embedded System

Test and Measurement Technology      Power supply

Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized


3.Our Service


1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.

ROHS Customized Electronic Component Tray Matrix Plastic 0



Q1. Do your products get any certificates?
Ans: Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Ans:Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
Ans:For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?

Ans:It’s depends on our terms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
Ans:After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.

ROHS Customized Electronic Component Tray Matrix Plastic 1
