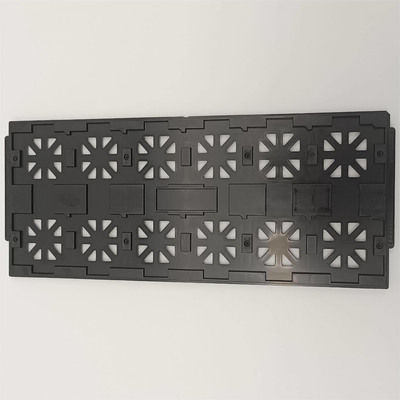

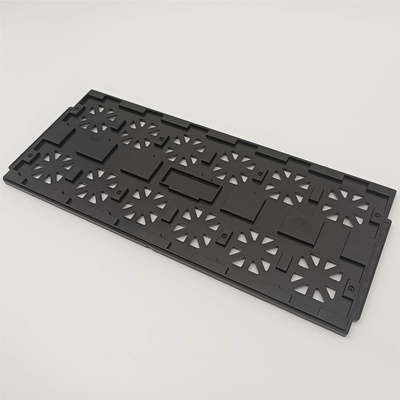

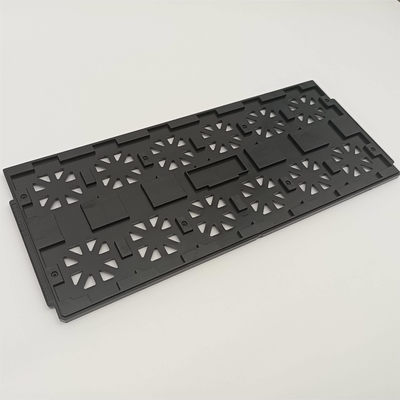

7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts

7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts
7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts 7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts 7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts

Large Image :  7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21098
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts

Description
Material: PC Color: Black
Temperature: 150°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

Customized JEDEC Matrix Tray

,

Electronic Parts JEDEC Matrix Tray

,

7.62mm JEDEC Matrix Trays

Customized JEDEC Plastic Matrix Tray 7.62 Thickness for Electronic Parts



Hiner-pack has a professional technical team and nearly ten years of experience in customizing IC tray matrix trays. We offer a wide variety of JEDEC profile matrix trays to meet the most demanding requirements of automated testing and install process. While the JEDEC standard provides compatibility with process equipment, each device and component has its own requirements for the pocket of the tray.This means that customization has high requirements on the level of production technology.



1.Details about the HN21098 Customized JEDEC Plastic Matrix Tray 7.62 Thickness for Electronic Parts



The main material of HN21098 tray is PC, which is a kind of material with good stability. Trays also vary according to color, height, materials, baked and non-baked, JEDEC, EIAJ, and other criteria. We can provide a variety of package IC design solutions based on your products. The 100% custom tray is not only suitable for the storage of your products , but also can protect the goods.



This type of matrix tray is mainly used to automate the testing and assembly process, and the product is fully compliant with JEDEC standards. Integrated circuits and components are selected from trays for testing or assembly into printed circuit boards. The tray is designed with a 45 degree chamfered angle, which provides a visual indication of the IC chip pin orientation, prevents error stacking. The design can also reduces the possibility of  error to lower the cost of production.



Outline Line Size 322.6*135.9*7.62mm Brand Hiner-pack
Model HN21098 Package Type Die
Cavity Size 41.5*44.5*2.75 Matrix QTY 2*6=12PCS
Material PC Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS



2.Application of HN21098 Customized JEDEC Plastic Matrix Tray



Semiconductor                       Electronic component factories

SMT Surfacing factories        Military Industry



Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized



3.Advantages of Jede Tray



1. Suitable for components or devices daily turnover or long-distance freight.
2. Can be stacked more layers.
3. Can be washed at high temperature.
4. Plastic waterproof, moisture-proof, improve the storage time of components.
5. No extrusion and breakage, Better protection components.
6. Reusable, quality assurance.

7.62mm Thickness Customized Plastic JEDEC Matrix Tray For Electronic Parts 0

4.FAQ of Matrix IC Tray



1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.

3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
