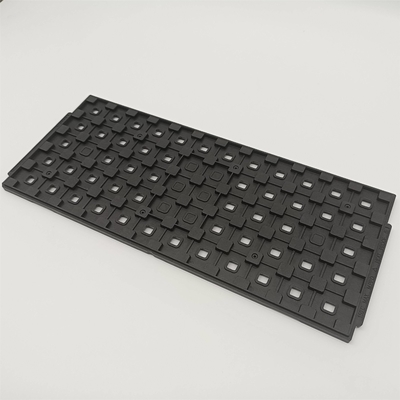

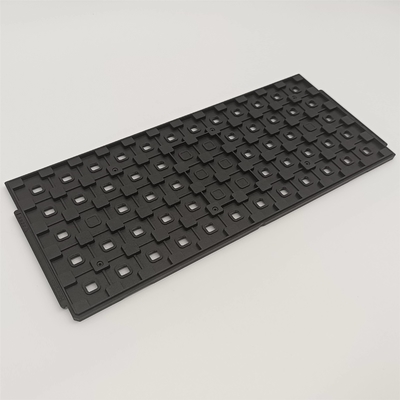

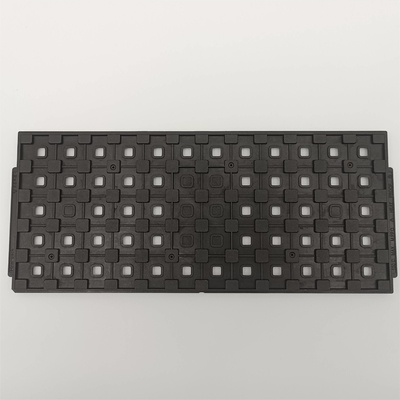

Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device

Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device
Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device

Large Image :  Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21099
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device

Description
Material: MPPO Color: Black
Temperature: 150°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Use: Transport,Storage,Packing HS Code: 39239000
High Light:

JEDEC MPPO Matrix Tray

,

ESD Black Matrix Tray

,

Electronic Device Jedec Matrix Trays

Customized JEDEC MPPO ESD Black Matrix Tray for Electronic Device



The JEDEC trays is a international standard-defined tray,mainly used to transport and store chips and other electronic components. The size of the product is basically the same 12.7 inches x 5.35 inches (322.6 mm x 135.89 mm). Other details of the tray can be according to the customer's requirements, there is also finished product inventory for customers to choose.



1.Details about the HN21099 Customized JEDEC MPPO Black Matrix Tray



The main material of HN21099 tray is MPPO, which is a material with strong electrical insulation. The product not only has good stability to avoid cracking phenomenon, but also fully conforms to RoSH environmental protection standards. Raw materials can be recycled and easily degraded after waste, so customers don't have to worry about environmental protection.



Compared with ordinary products, our trays are small in size, light in weight and low in transportation cost. We can provide a variety of package design solutions according to your products. The custom tray not only suitable for the storage of IC chips, but also can protect the electronic device.



Outline Line Size 322.6*135.9*7.26mm Brand Hiner-pack
Model HN21099 Package Type N/A
Cavity Size 14.9x14.9x3.2 Matrix QTY 12*5=60PCS
Material MPPO Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS



2.Product Application



Electronic component          Test and Measurement Technology

Military Industry                    Power supply



Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized



3.Advantages



1. Flexible OEM service: we can produce products according to customer’s sample or design.

2. Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.

3. Complicated workmanship: tooling making, Injection molding,Production.

4. Plastic waterproof, moisture-proof, improve the storage time of components.
5. No extrusion and breakage, Better protection components.
6. Reusable, quality assurance.

Customized JEDEC MPPO ESD Black Matrix Tray For Electronic Device 0

4.FAQ



Q1. Do your products get any certificates?
Ans:Yes, CE for EU market, FDA for USA market.
Q2. Can you do the design for us?
Ans:Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
Ans:For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.

Q4: How can I get the quotation of the custom products ?

Ans:Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
