Product Details:
|
| Material: | PPE | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | OEM Jedec Matrix Trays,ROHS Jedec Matrix Trays,0.76mm Jedec Standard Matrix Tray |
||
Meet Environmental Standards ROHS Matrix IC Tray 0.76mm Flatness
This matrix IC tray is used for chip packaging testing in the semiconductor industry. Because IC chips are small and thin, they are easily damaged. Therefore, customers generally adopt this tray for external protection to avoid chip damage.
Matrix IC tray is a satisfactory tray for chip of electronic components, Which is widely used by semiconductor seal testing enterprises.The tray is usually equipped with multiple matrices that can hold many chips, and its bottom surface is flat and made of ESD materials. This ESD material makes the material has excellent heat resistance, strength, flame retardant, electrical conductivity and other properties. This makes it not only can effectively prevent vibration damage to the equipment, but also has anti-static, pollution-free and other characteristics.

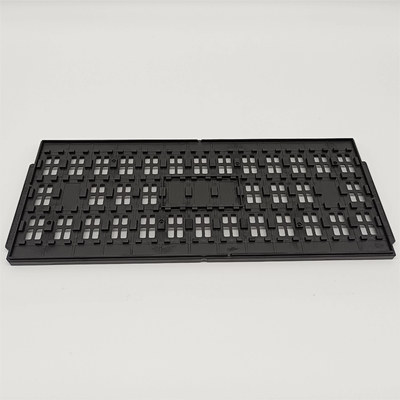

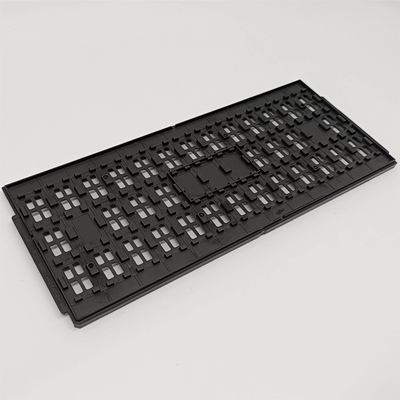

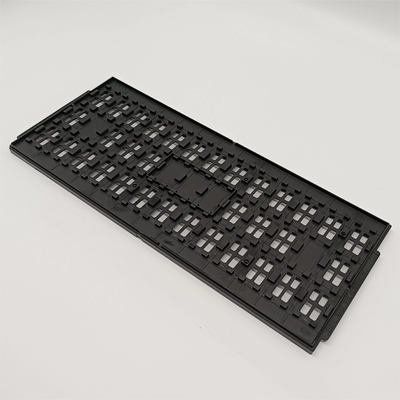

Details about The HN21100 ESD Matrix IC Tray
The materials of the HN21100 ESD matrix tray has good stability and meets RoHS environmental standards.The material does not pollute the environment and can protect the customer's products. At the same time, our company has a professional technical research and development team, the production of trays are strictly controlled to ensure that the isolation line, parallelism and consistency of each trays are less than 0.76mm. Product surface will not produce any defects and cracks and other phenomena.
| Outline Line Size | 322.6*135.9*9.3mm | Brand | Hiner-pack |
| Model | HN21100 | Package Type | N/A |
| Cavity Size | 17.14*28.25*2.6mm | Matrix QTY | 3*13=39PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Application of the HN21100 ESD Matrix IC Tray
Electronic component Embedded System
Sensor Industry Test and Measurement Technology
Reference to temperature resistance of different materials
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
Our Service For IC Tray Factory
1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.
FAQ Of IC Tray Manufacturer
Q1: Are you a manufacturer?
Ans:Yes, We have ISO 9000 Quality Management System.
Q2: What information should we supply if we want a quotation?
Ans: Drawing of your IC or component, Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3 days. If customized one, open new mold 25~30 days around.
Q4: How about batch order production?
Ans: Normally 5-8days or so.
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection according to ISO 9000 standard and ruled by our QC staff.
