Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 150°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Semiconductor JEDEC Matrix Tray,Micro Cavity JEDEC Matrix Tray,IC Components Jedec Matrix Trays |
||

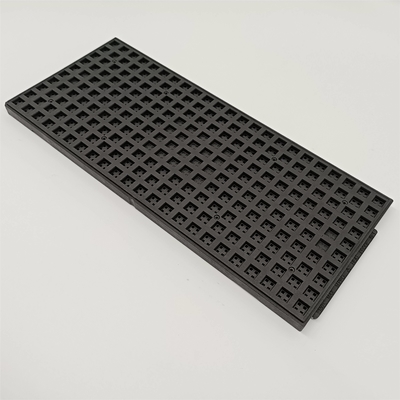

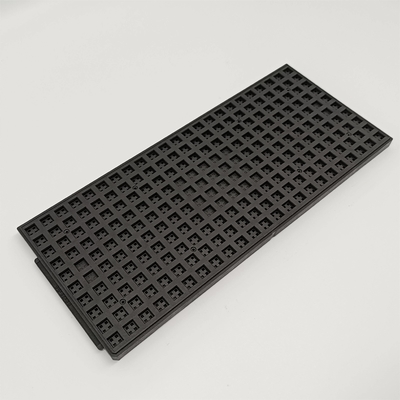

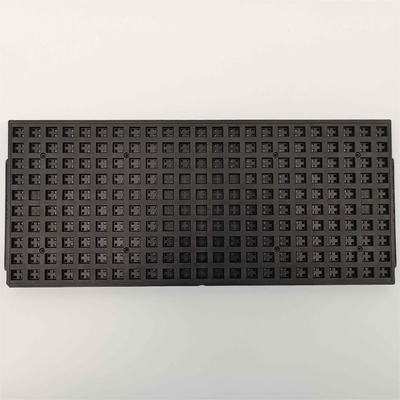

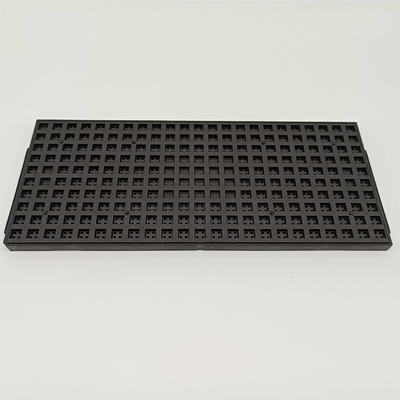

Customized Black Micro Cavity JEDEC Matrix Tray for IC Components
JEDEC Matrix tray is a standard definition tray used for transporting, packing and storing chips or other electronic components. The trays have roughly the same profile size of 12.7 inches * 5.35 inches (322.6 mm * 135.89 mm) and are available in many different configurations. We can also be customized according to the requirements of customers.
JEDEC Tray is widely used in the semiconductor industry and is also recognized in other fields. The structure and shape of our products not only comply with the JEDEC international standards, but also fully meet the requirements of IC chip packaging.
Details About The HN21101 JEDEC IC Tray
The main material of HN21101 matrix tray is MPPO. It is a material with good transparency and thermal stability, which makes the product strong and durable without polluting the environment. Low profile trays with thickness can accommodate 90% of all standard components, such as BGA, QFP, TQFP and QFN.
The 23*10 matrix tray can accommodate more chip products. It also saves customers a lot of costs of the transportation.
At the same time, our company has a professional technical team which can provide customized JEDEC matrix tray.
| Outline Line Size | 322.6*135.9*12.19mm | Brand | Hiner-pack |
| Model | HN21101 | Package Type | N/A |
| Cavity Size | 7.1*7.8*3mm | Matrix QTY | 10*23=230PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Service | AcceptOEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS SGS |
Reference to temperature resistance of different materials
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
Advantage Of Jedec IC Tray
1. Have exported for more than 10 years.
2. Have professional engineer and efficient management.
3. Delivery time is short, normally in stock.
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea,Japan...etc, Win many big famous customer reputation.
7. Factory have ISO certificate, Product comply to Rohs standard.
FAQ About Matrix Jedec Tray Manufacture
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
