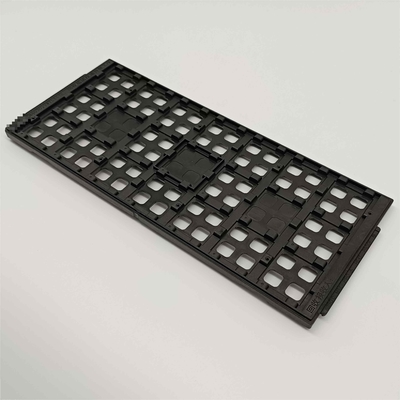

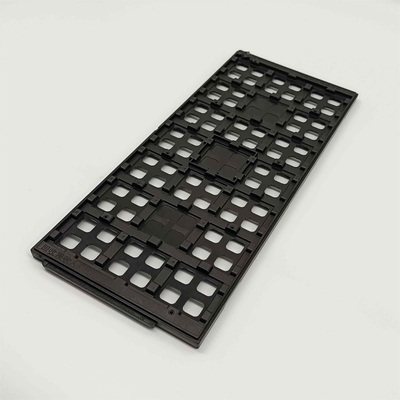

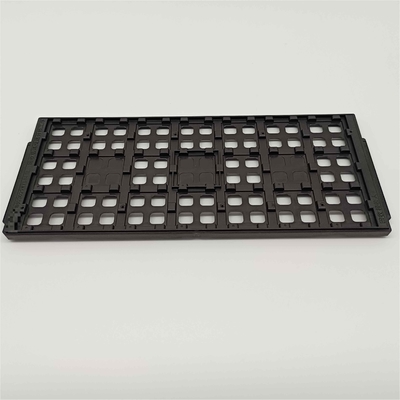

3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry

3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry
3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry 3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry 3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry

Large Image :  3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry

Product Details:
Place of Origin: Shenzhen China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21108
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: $1.35~$2.38(Prices are determined according to different incoterms and quantities)
Packaging Details: 80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 2500PCS~3000PCS/per day

3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry

Material: MPPO Color: Black
Temperature: 150°C Property: ESD
Surface Resistance: 1.0x10E4~1.0x10E11Ω Flatness: Less Than 0.76mm
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Customized Service: Support Standard And Non-standard,precision Machining Injection Mold: Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)
High Light:

IC Packaging Industry JEDEC Trays




ODM Jedec Matrix Trays

3*7 Matrix Black MPPO JEDEC Trays for IC Packaging Industry


Hiner-pack has a professional technical team and nearly 10 years of experience in IC tray matrix tray manufacturing. We offer a wide range of JEDEC matrix trays to meet our customers' stringent requirements for automated testing and processing environments.


Although the JEDEC standard provides various requirements for tray process equipment, it does not mean that the factory only needs to meet the basic standard requirements. On the contrary, each tray has its own unique requirements, and the factory should carefully supervise every step to provide customers with satisfactory trays.



Details about the HN21108 Matrix Black MPPO JEDEC Trays


The main material of HN21108 tray is MPPO, which is a kind of stable ESD material. It can well protect the customer production, while the tray also according to the color, height, material, heat temperature and other standards change.


This type of matrix tray is primarily used to automate testing and assembly processes. Integrated circuits and components are selected from the tray for testing or assembly into printed circuit boards. The tray is designed to be 45 degrees chamfered angle, providing an intuitive indication of the IC chip pin orientation, preventing error stacking, reducing the possibility of worker error and maximizing chip protection.


Outline Line Size 322.6*135.9*9.57mm Brand Hiner-pack
Model HN21108 Package Type Die
Cavity Size 35.3X35.3X4.6 Matrix QTY 3*7=21PCS
Material MPPO Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS


Application of the HN21108 Matrix JEDEC Tray


Electronic component          Test and Measurement Technology

Military Industry                    Power supply


Reference to temperature resistance of different materials


Material Bake Temperature Surface Resistance
PPE Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Carbon Powder Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
MPPO+Glass Fiber Bake 125°C~Max 150°C 1.0*10E4Ω~1.0*10E11Ω
PEI+Carbon Fiber Max 180°C 1.0*10E4Ω~1.0*10E11Ω
IDP Color 85°C 1.0*10E6Ω~1.0*10E10Ω
Color, temperature and other special requirements can be customized




1. Suitable for components or devices daily turnover or long-distance freight.
2. Can be stacked more layers.
3. Can be washed at high temperature.
4. Plastic waterproof, moisture-proof, improve the storage time of components.
5. No extrusion and breakage, Better protection components.
6 .Reusable, quality assurance.

3x7 Matrix Black MPPO JEDEC Trays For IC Packaging Industry 0


Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize.

the project depending on the specific time.
