Professional Design Clean Anti Static Waffle Box Chip Tray PC Material

Professional Design Clean Anti Static Waffle Box Chip Tray PC Material
Professional Design Clean Anti Static Waffle Box Chip Tray PC Material Professional Design Clean Anti Static Waffle Box Chip Tray PC Material Professional Design Clean Anti Static Waffle Box Chip Tray PC Material

Large Image :  Professional Design Clean Anti Static Waffle Box Chip Tray PC Material

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21105
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Professional Design Clean Anti Static Waffle Box Chip Tray PC Material

Description
Material: PC Color: Black
Matrix QTY: 5*6=30PCS Design: Non-standard
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

Waffle Box Chip Tray

,

Anti Static Waffle Box Chip Tray

,

ISO 9001 Waffle Pack Chip Trays

Professional Design Clean Anti - Static Waffle Box Chip Tray Factory



Hiner-pack production IC tray fully comply with international environmental protection standards.The raw materials of the products are purchased from leading domestic manufacturers and passed third-party inspection such as ROHS and SGS. At the same time, the quality department of our factory strictly controls the products in the production process and must ensure that the products are 100% qualified before the shipment.



Over the years, IC trays produced by our company are sold to well-known customers at home and abroad. With rich experience in injection molding industry, we also provide customers with the most suitable packaging solutions. The IC tray is also called high temperature tray, which is a carrier for semiconductor chip enterprises to package and bake their chips. Because it can bake in the environment of 120℃-220℃ without deformation, so the electronic waste industry is commonly known as "high temperature tray".

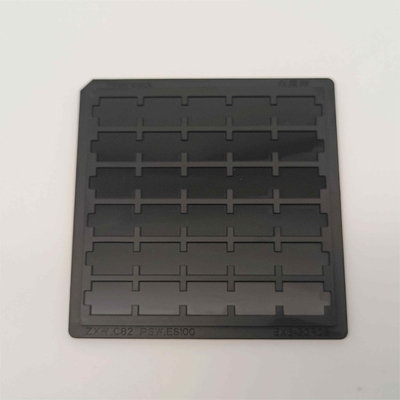

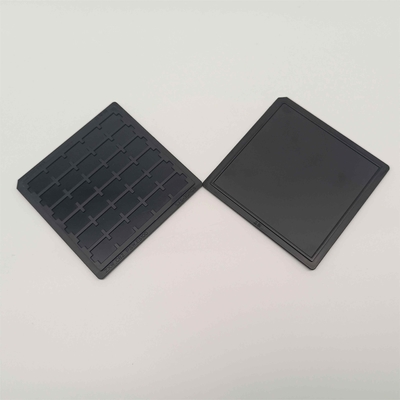

Details about The HN21105 Black PC 4 Inch Waffle Pack



HN21105 Waffle Pack is made of PC, a material with good consolidation. This material can protect customers' electronic products well and improve product quality. At the same time, it also has bending resistance, aging resistance, bearing strength, stacked and other functions. We can customize various specifications and sizes according to user needs.

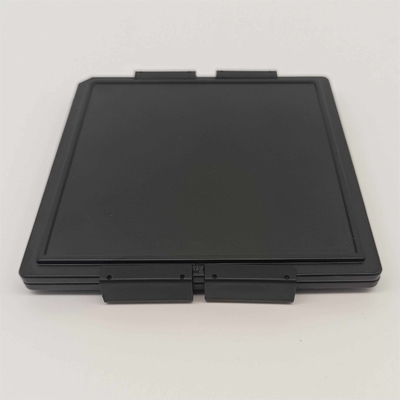

At the same time, there are also matching lids, clips, Tyvek paper for customers to choose. The Waffle Pack is designed and manufactured according to the size provided by the customer to achieve the most reasonable loading. In addition, multiple trays can be overlapped to increase storage of electronic components, PCB boards and dust-free workshop parts, thereby saving the production costs.

Outline Line Size 101.6*101.6*4.5mm Brand Hiner-pack
Model HN21105 Package Type Die
Cavity Size 14.68*11.79*0.9 Matrix QTY 5*6=30PCS
Material PC Flatness MAX 0.3mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS





The Application of The HN21105 Black PC 4 Inch Waffle Pack



Electronic component factories           SMT Surfacing factories

Optical industry                                    Military Industry



Reference to temperature resistance of different materials



Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products



Waffle Pack Factory Advantages



1.Flexible OEM service: we can produce products according to customer’s sample or design.

2.Various Materials: the material can be MPPO.PPE.ABS.PEI.IDP...etc.

3.Complicated workmanship: tooling making, Injection molding,Production

4.Comprehensive customer service: from customer consultation to after sales service.

5.10 years experience of OEM for USA and EU customers.

6.We have our own factory and can control quality in high level and produce products quickly and flexibly.

Professional Design Clean Anti Static Waffle Box Chip Tray PC Material 0



FAQ



Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?

ABS.PC.PPE.MPPO.PEI.HIPS...etc

Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.
